Empire Industries

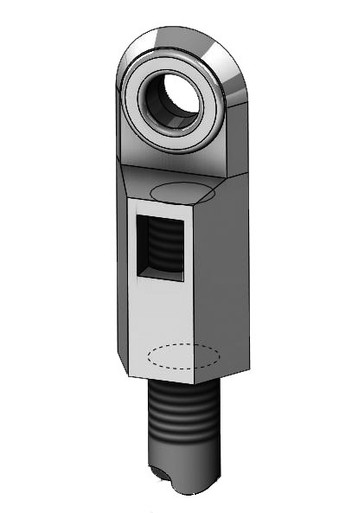

Fig. 157 Extension Piece
- SKU:
- Fig. 157
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
*Images are for visual reference only.
Frequently bought together:
Description
Pipe Hangers & Supports / Brackets
Empire Industries
Fig. 157 Extension Piece
Empire Fig. 157 Extension Piece is designed for attaching hanger rod to various types of attachments and allows 1" of vertical rod adjustment.
Product Highlights
- Designed for attaching hanger rod to various types of attachments
- Allows 1" vertical adjustment of the rod
- Plain malleable iron or electro-galvanized finish
- Rod sizes from 3/8"-16 through 7/8"-9
- Maximum recommended loads up to 2,950 lb
Size & Load Data
| Rod Size | Pipe Size | Weight Each | Max Recommended Load |
|---|---|---|---|
| 3/8"-16 | 1/2" to 2" | 0.19 lb | 610 lb |
| 1/2"-13 | 2-1/2" to 3-1/2" | 0.41 lb | 1,130 lb |
| 5/8"-11 | 4" to 5" | 0.42 lb | 1,810 lb |
| 3/4"-10 | 6" | 0.68 lb | 2,710 lb |
| 7/8"-9 | 8" to 12" | 0.78 lb | 2,950 lb |
Technical Specifications
| Manufacturer | Empire Industries |
|---|---|
| Figure | 157 |
| Product Type | Extension Piece |
| Material | Malleable Iron |
| Available Finishes | Plain (157B) or Electro-Galvanized (157G) |
| Service | Attaching hanger rod to various types of attachments |
| Vertical Adjustment | 1" |
Important Ordering Notes
- Specify the figure number, finish, and rod size when ordering.
- Confirm the required rod size and corresponding pipe size.
- Do not exceed the maximum recommended load for the selected size.
Product Documents
Product Questions
What is the Fig. 157 Extension Piece used for?
It is designed for attaching hanger rod to various types of attachments.
How much vertical adjustment does it provide?
The Fig. 157 allows 1" of vertical adjustment of the rod.
What finishes are available?
Empire lists plain malleable iron (157B) and electro-galvanized (157G) configurations.
