Harris

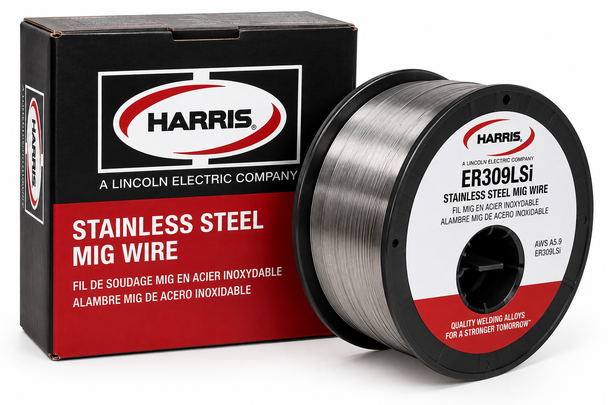

ER309LSi Stainless Steel MIG Welding Wire
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Harris ER309LSi Stainless Steel MIG Welding Wire
Harris ER309LSi stainless steel MIG welding wire is designed for GMAW / MIG welding of stainless steels with similar composition in wrought or cast form. It is also used for welding Type 304 and similar base metals where severe service conditions may exist and may be used for selected dissimilar-steel welding applications. The higher silicon content improves the wetting and washing behavior of the weld metal.
Select the required wire diameter and spool configuration from the product options above. Each available variation is tied to the corresponding Harris item number, package weight, selling price and cost.
Product Highlights
- ER309LSi stainless steel MIG / GMAW welding wire
- Higher silicon content improves weld-metal wetting and washing behavior
- Designed for stainless steels of similar composition in wrought or cast form
- Suitable for Type 304 and similar stainless steels under severe service conditions
- May be used for selected dissimilar-steel welding applications
- Available in .030", .035" and .045" wire diameters
- Available in 10 lb and 25 lb spool configurations depending on diameter
- 86,000 psi tensile strength in the as-welded condition
- 57,000 psi yield strength in the as-welded condition
- 47% elongation in the as-welded condition
- 68% reduction of area in the as-welded condition
- Suitable for all welding positions
- Conforms to ANSI/AWS A5.9 and ASME SFA 5.9 ER309LSi
Technical Specifications
| AWS Classification | ER309LSi |
|---|---|
| Filler Metal Type | 309LSi Stainless Steel MIG Welding Wire |
| Welding Process | GMAW / MIG Welding |
| Primary Applications | Similar-composition stainless steels, Type 304 and similar stainless steels, and selected dissimilar-steel applications |
| Available Wire Diameters | .030", .035" and .045" |
| Available Packages | 10 lb and 25 lb Spools |
| Welding Positions | All Positions |
| Shielding Gas | 98% Argon / 2% Oxygen |
| Specification | ANSI/AWS A5.9 & ASME SFA 5.9 ER309LSi |
| Manufacturer | The Harris Products Group |
As-Welded Mechanical Properties
| Tensile Strength | 86,000 psi |
|---|---|
| Yield Strength | 57,000 psi |
| Elongation | 47% |
| Reduction of Area | 68% |
| Rockwell Hardness | 85 HRB |
| Brinell Hardness | 160 HB |
| Charpy V-Notch Impact | 105 ft-lb at Room Temperature |
Available Diameters & Packaging
| Wire Diameter | Package | Harris Item Number |
|---|---|---|
| .030" | 10 lb Spool | 309LSE5 |
| .035" | 10 lb Spool | 309LSF5 |
| .035" | 25 lb Spool | 309LSF8 |
| .045" | 25 lb Spool | 309LSH8 |
Common Applications
Stainless Steel Fabrication
- General stainless steel fabrication
- Type 304 stainless steel
- Stainless steel equipment
- Industrial fabrication
- Stainless steel piping and components
Dissimilar Metals & Severe Service
- Selected dissimilar-steel joints
- Severe service applications
- Plant maintenance
- Industrial repair
- General stainless steel MIG welding
Why Choose ER309LSi MIG Welding Wire?
Improved Wetting & Washing
The higher silicon content of ER309LSi improves the wetting and washing behavior of the weld metal, helping produce smooth, consistent weld beads.
Dissimilar-Steel Capability
ER309LSi may also be used for selected dissimilar-steel welding applications. Confirm filler-metal selection with the applicable welding procedure, engineering specification and materials being joined.
Product Selection Considerations
Wire Diameter
Select the MIG wire diameter appropriate for the base-metal thickness, joint design, welding procedure, equipment setup and required deposition rate.
Spool Configuration
Spool availability varies by wire diameter. Select the diameter and spool configuration required for the application and verify compatibility with the applicable welding procedure.
Product Resources
View manufacturer-published technical information, specifications, application guidance and product data for Harris ER309LSi stainless steel GMAW / MIG welding wire.
View Harris Product InformationNeed Help Selecting Harris ER309LSi Stainless Steel MIG Wire?
Our welding and industrial supply specialists can help you select the appropriate wire diameter and spool configuration for your stainless or dissimilar-steel MIG welding application.
Frequently Asked Questions
What is Harris ER309LSi stainless steel MIG welding wire?
Harris ER309LSi is stainless steel GMAW / MIG filler wire designed for welding base metals of similar composition in wrought or cast form.
What is different about ER309LSi?
ER309LSi has higher silicon content that improves the wetting and washing behavior of the weld metal.
Can ER309LSi be used with Type 304 stainless steel?
Yes. Harris identifies ER309LSi for Type 304 and similar base metals where severe service conditions may exist.
Can ER309LSi be used to weld dissimilar steels?
ER309LSi may be used for selected dissimilar-steel applications. Confirm filler-metal selection with the applicable welding procedure and engineering requirements.
What wire diameters are available?
This Harris ER309LSi MIG product is available in .030", .035" and .045" wire diameters.
What spool sizes are available?
Available configurations include 10 lb and 25 lb spools depending on the selected wire diameter.
What is the tensile strength of Harris ER309LSi MIG wire?
Harris lists an as-welded tensile strength of approximately 86,000 psi.
What is the yield strength of Harris ER309LSi MIG wire?
Harris lists an as-welded yield strength of approximately 57,000 psi.
What specification does Harris ER309LSi meet?
Harris ER309LSi conforms to ANSI/AWS A5.9 and ASME SFA 5.9 ER309LSi.
How do I choose the correct Harris ER309LSi variation?
Select the wire diameter and spool configuration required for your application. The selected variation determines the Harris item number, package weight, selling price and cost.
Important Ordering Notes
- Select the required wire diameter and spool configuration before adding the product to your cart.
- The selected variation determines the Harris item number, package weight, selling price and cost.
- Spool availability varies by wire diameter.
- Confirm ER309LSi filler-metal compatibility with the materials being joined before welding.
- Pay particular attention to welding-procedure requirements when joining dissimilar steels.
- Verify all welding procedure, specification, code and project requirements before use.
- Always follow applicable welding procedures, manufacturer instructions and workplace safety requirements.
