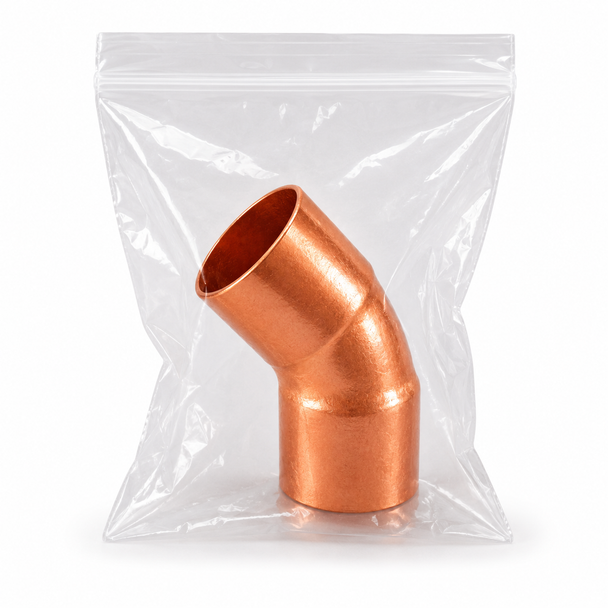

Domestic Cleaned & Bagged Wrot Copper 45° Elbow – C x C
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
Domestic Cleaned & Bagged Wrot Copper 45° Elbow – C x C
Domestic cleaned and bagged C x C wrot copper 45° elbows provide a 45-degree directional change in copper piping systems using female copper sweat sockets on both ends. The cleaned and bagged packaging helps protect joining surfaces before installation in controlled or contamination-sensitive piping applications.
Select the required nominal copper tube size from the product options above. The selected variation determines the Cello item number, online selling price, shipping weight, cost, and other size-specific product information.
Product Highlights
- Domestic wrot copper construction
- Cleaned and individually bagged for protected handling
- Copper sweat x copper sweat connections
- Provides a 45-degree change in piping direction
- Female copper sweat sockets on both ends
- Equal-size connections
- Suitable for approved soldered or brazed copper piping systems
- Compact directional fitting for copper pressure piping
- Available in nominal sizes from 1/8" through 4"
- Suitable for medical gas, laboratory, institutional, mechanical, and other controlled piping applications when approved
Technical Specifications
| Material | Wrot Copper |
|---|---|
| Product Type | Domestic Cleaned & Bagged Copper 45° Elbow |
| Connection | Copper Sweat x Copper Sweat |
| Connection Sizes | Equal Size |
| Angle | 45 Degrees |
| Configuration | Standard 45° Elbow |
| Installation Method | Approved Soldered or Brazed Joint, as Required |
| Applicable Standard | ASME B16.22 |
| Manufacturer | Cello Products |
| Available Sizes | 1/8" Through 4" |
How a Copper 45° Elbow Works
Each end of the elbow contains a female copper sweat socket designed to fit over properly sized copper tube. The fitting changes the direction of the piping by 45 degrees while maintaining the same nominal tube size through both connections.
45° Elbow vs. 90° Elbow
45° Elbow
- Changes piping direction by 45 degrees
- Creates a more gradual directional change
- Useful for offsets and angled routing
- Can be used in pairs to create offset piping arrangements
90° Elbow
- Changes piping direction by 90 degrees
- Creates a right-angle turn
- Commonly used at corners and vertical-to-horizontal transitions
- Provides a sharper directional change than a 45° elbow
Cleaned & Bagged Construction
Each elbow is cleaned and enclosed in protective packaging to help preserve the condition of the internal and external joining surfaces during storage, transportation, and handling. Keep the fitting sealed in its original bag until immediately before installation.
Cleaned and bagged copper components are commonly specified for piping systems where dirt, oil, grease, moisture, metal particles, and other contaminants must be carefully controlled. Confirm that the fitting, cleaning level, packaging, joining procedure, and installation requirements satisfy the project specifications and applicable codes.
Common Applications
Clean and Controlled Piping
- Medical-gas piping installations
- Laboratory piping systems
- Institutional piping projects
- Clean mechanical piping
- Process piping requiring protected fittings
- Projects specifying cleaned and bagged copper components
Copper Pressure-Piping Systems
- Commercial plumbing systems
- Heating and cooling piping
- HVAC and refrigeration systems
- Equipment connections
- Offset piping arrangements
- Maintenance and retrofit installations
Installation Guidance
- Confirm the required nominal copper tube size before ordering.
- Verify that cleaned and bagged fittings meet the project specifications.
- Keep the fitting sealed until immediately before installation.
- Handle the fitting using clean gloves and approved tools when required.
- Do not use the fitting if the protective package is damaged or the fitting appears contaminated.
- Inspect both copper sweat sockets and copper tube ends before assembly.
- Cut copper tube square and remove burrs using approved methods.
- Prepare the tube and fitting surfaces using procedures approved for the application.
- Insert both copper tubes fully into the elbow sockets.
- Align the 45-degree direction correctly before joining.
- Use approved solder, brazing alloy, purge gas, flux, and joining procedures.
- Follow applicable medical-gas requirements when installed in medical-gas systems.
- Support the connected piping to prevent mechanical strain on completed joints.
- Pressure-test and inspect the completed system before placing it into service.
Product Resources
Review the Cello product catalog and NSF Annex G listing before ordering or installation.
Need Help Selecting a Cleaned & Bagged Copper 45° Elbow?
Our industrial PVF specialists can help confirm the required copper tube size, joining method, cleanliness requirements, material compatibility, application requirements, and product availability.
Frequently Asked Questions
What is a C x C copper 45° elbow?
It is a wrot copper fitting with female copper sweat sockets on both ends that changes the direction of the piping by 45 degrees.
Are both connections the same size?
Yes. These are equal-size 45-degree elbows.
Do both ends fit over copper tube?
Yes. Both female copper sweat sockets fit over properly sized copper tube.
When would I use a 45° elbow instead of a 90° elbow?
A 45-degree elbow is commonly used when a more gradual directional change or an offset piping arrangement is required.
Can two 45° elbows be used to create an offset?
Yes. Two 45-degree elbows are commonly used together to create an offset while maintaining a parallel piping direction.
Why is the fitting cleaned and bagged?
The protective packaging helps prevent dirt, oil, grease, moisture, metal particles, and other contaminants from contacting the fitting before installation.
Can this elbow be brazed?
Yes, when brazing is appropriate and completed using approved materials, procedures, purge requirements, and applicable codes.
Can this elbow be soldered?
It may be soldered when permitted by the application, project specification, and applicable code.
Is this a domestic copper fitting?
Yes. It is listed as a domestic cleaned and bagged wrot copper fitting manufactured by Cello Products.
Can it be used in medical-gas piping?
It may be used when the fitting, cleaning level, packaging, joining procedure, and installation satisfy the project specifications and applicable medical-gas requirements.
Can the fitting be used if the bag is damaged?
Do not assume that a damaged or opened package still satisfies project cleanliness requirements. Follow the applicable contamination-control and rejection procedures.
Does the selected size determine the SKU and price?
Yes. Each nominal size has its own Cello SKU, online selling price, estimated shipping weight, and cost.
Important Ordering Notes
- Select the required nominal copper tube size before adding the product to your cart.
- The selected variation determines the Cello SKU, price, shipping weight, and cost.
- This is an equal-size copper x copper 45-degree elbow.
- Both connections are female copper sweat sockets.
- This is not a reducing elbow.
- Confirm the required piping direction and angle before installation.
- Keep the fitting sealed in its protective bag until installation.
- Confirm that the package is intact and the fitting is free from visible contamination.
- Use approved solder, brazing alloy, purge gas, preparation methods, and installation procedures.
- Confirm pressure, temperature, media compatibility, cleanliness, and applicable code requirements.
- Installation should be completed by qualified personnel.
