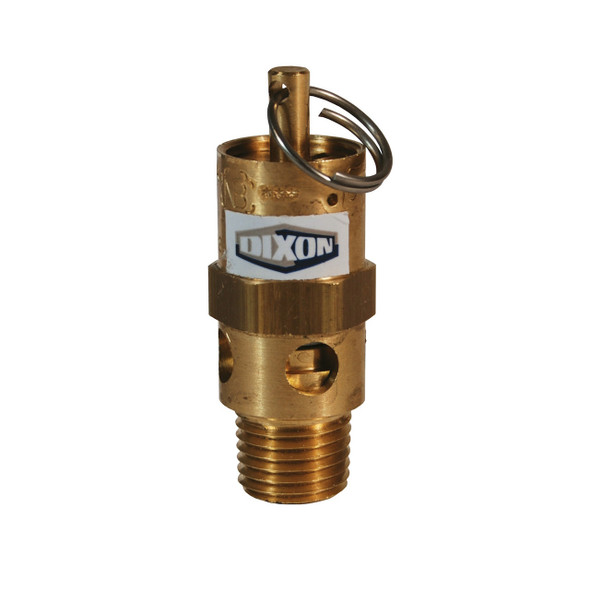

Dixon Pop Off Valve 125PSI

The Dixon SV125 is a standard safety pop-off valve engineered to provide over-pressure protection for compatible pressure vessels and compressed air equipment. The valve is factory set for a 125 PSI pressure setting and connects through a 1/4" male NPT thread.

Constructed from brass and equipped with a stainless steel ball, the SV125 provides dependable pressure relief performance in demanding pneumatic systems.

Key Features

• Dixon part number SV125
• 125 PSI preset pressure setting
• 1/4" male NPT connection
• Brass valve construction
• Stainless steel ball
• Hard-seat construction
• 109 SCFM flow rating
• Temperature range: -40°F to 400°F (-40°C to 204°C)
• ASME Code and National Board Certified
• CSA B51-03 Certified
• Approximate weight: 0.105 lb

Construction Details

The SV125 features a durable brass valve body with a stainless steel ball and hard seat. Its compact threaded design allows installation into equipment with a compatible 1/4" female NPT connection.

The integrated pull ring provides a convenient means of manually operating the valve when required for inspection or system servicing in accordance with applicable equipment procedures.

Important Notes

Designed to protect un-fired pressure vessels from over-pressure and for use with compressors and compressed air service.

Verify the required pressure setting, thread size, flow capacity, and equipment requirements before installation.

This product contains lead and is subject to California Proposition 65 requirements.
