Dixon
Dixon Cam & Groove Type C Coupler x Hose Shank - 400-C-MI
- SKU:
- 400-C-MI
- Availability:
- Usually Ships Same Day
- Weight:
- 6.75 LBS
- Attributes-Weight:
- 6.75 lb
- Attributes-Optional Package/Box Quantity:
- 2
- Attributes-Size:
- 4"
- Attributes-Seal:
- Nitrile Rubber
Description
Engineered to connect.
Built to perform.

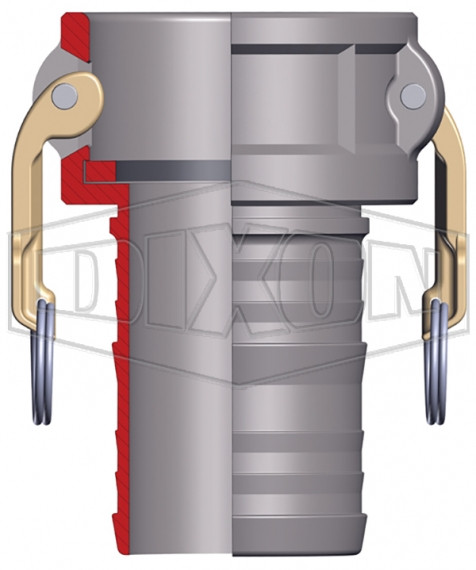

400-C-MI — Dixon Cam & Groove Type C Coupler x Hose Shank Dixon 400-C-MI joins a 4" female cam-and-groove connection to a hose shank for liquid transfer. Its unplated ductile iron body and nitrile rubber gasket define the material combination to check against the transferred liquid.
Type C Cam & Groove
Its unplated ductile iron body and nitrile rubber gasket define the material combination to check against the transferred liquid.
Selection & Installation
Configuration: Match the 4" coupler to a compatible male adapter and properly sized hose.
Selection: Do not use for compressed air or steam. Confirm liquid compatibility with the body and nitrile gasket.
Ask Willy: Need help choosing the right Dixon part?
Our team can review 400-C-MI with you, including nominal size, hose attachment, mating adapter and liquid compatibility, and help identify the relevant Dixon documentation for your installation or replacement.
Frequently Asked Questions
What distinguishes 400-C-MI?
Dixon 400-C-MI joins a 4" female cam-and-groove connection to a hose shank for liquid transfer. Its unplated ductile iron body and nitrile rubber gasket define the material combination to check against the transferred liquid.
What should I match before choosing 400-C-MI?
Match the 4" coupler to a compatible male adapter and properly sized hose. Do not use for compressed air or steam. Confirm liquid compatibility with the body and nitrile gasket.
What safety or compatibility checks apply?
Never use 400-C-MI for compressed air or steam. Pressure limits depend on the approved assembly, including whether King Crimp ferrules are used. Confirm Dixon’s model-specific rating, seal, temperature conditions and installation instructions before service.
