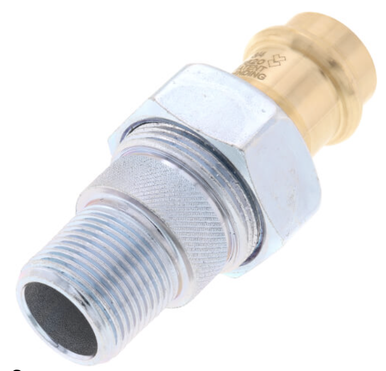

Copper Press Dielectric Union MNPT
Cello Copper Press Dielectric Unions | Press x MNPT
Product Highlights
- Lead-free, approved for potable water use nationwide
- Meets NSF/ANSI 61 & 372, UPC and ICC compliant
- Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
- Heat & flame-free installation, no fluxing, cleaning, soldering or prep. work
- Recommended to be compatible mainly with Viega-RIDGID-Milwaukee **2-1/2"-4" ONLY COMPATIBLE WITH VIEGA PRESS TOOL**
- Leak Before Press feature.
Available Sizes & Item Numbers
| Size / Configuration | Item Number / SKU |
|---|---|
| 1/2" Press x MPT | UNNL-BPM-08 |
| 3/4" Press x MPT | UNNL-BPM-12 |
| 1" Press x MPT | UNNL-BPM-16 |
Product Details & Application Notes
- Hot & cold water: up to 200 psi at 33°F-250°F
- Low pressure steam: up to 15 psi
- Compressed air & inert gases: up to 140 psi
- For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
- O-ring material: EPDM
- O-ring lubricant: NSF/ANSI 61 listed silicone oil.
Product Documents
Product Questions
What is this Cello product used for?
Cello Copper Press Dielectric Unions | Press x MNPT
How do I choose the correct option?
Select the required size and configuration from the product options. Match the item number, connection requirements, and applicable installation instructions before ordering.
