Cello
Copper Press Companion Flange 150#
- SKU:
- BP41
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ConnectionsCello Products

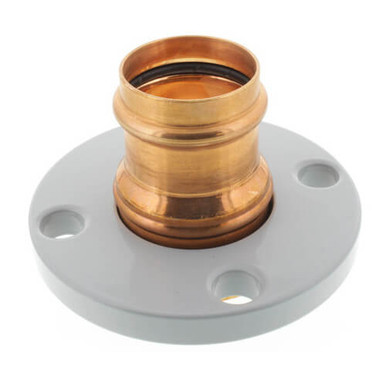

Copper Press Companion Flange 150#
Cello's modernized cold press connection technology has a wide assortment of fittings ranging from 1/2" to 4". provides safe and economical copper pipe installation systems. All tubing must comply with the ASTM B88 standard. fittings are approved for installations in above and below ground applications as allowed by local code.
Product Highlights
- Lead-free, approved for potable water use nationwide
- Meets NSF/ANSI 61 & 372, UPC and ICC compliant
- Applications include hot & cold water plumbing, hydronic heating (incl. ethylene, propylene and butylene glycol mixes), compress air (oil-free), low pressure steam, vacuum, grey water and others.
- Heat & flame-free installation, no fluxing, cleaning, soldering or prep. work
- Recommended to be compatible mainly with Viega-RIDGID-Milwaukee **2-1/2"-4" ONLY COMPATIBLE WITH VIEGA PRESS TOOL**
- Leak Before Press feature.
Available Sizes & Item Numbers
| Size / Configuration | Item Number / SKU |
|---|---|
| 1-1/4" X 150 PSI FLANGE | BP41-20 |
| 1-1/2" X 150 PSI FLANGE | BP41-24 |
| 2" X 150 PSI FLANGE | BP41-32 |
| 2-1/2" X 150 PSI FLANGE | BP41-40 |
| 3" X 150 PSI FLANGE | BP41-48 |
| 4" X 150 PSI FLANGE | BP41-64 |
Product Details & Application Notes
- Hot & cold water: up to 200 psi at 33°F-250°F
- Low pressure steam: up to 15 psi
- Compressed air & inert gases: up to 140 psi
- For use with: K, L & M types hard (drawn) and soft (annealed) copper tubing
- O-ring material: EPDM
- O-ring lubricant: NSF/ANSI 61 listed silicone oil.
Product Documents
Product Questions
What is this Cello product used for?
Cello's modernized cold press connection technology has a wide assortment of fittings ranging from 1/2" to 4". provides safe and economical copper pipe installation systems. All tubing must comply with the ASTM B88 standard. fittings are approved for installations in above and below ground applications as allowed by local code.
How do I choose the correct option?
Select the required size and configuration from the product options. Match the item number, connection requirements, and applicable installation instructions before ordering.
