Norfolk Iron & Metal

Carbon Steel Sheet 4' x 8'

(No reviews yet) Write a Review
Availability:
Usually in Stock – Ships Quickly
Weight:
0.00 LBS
Shipping Notice:
LTL Only
*Images are for visual reference only.

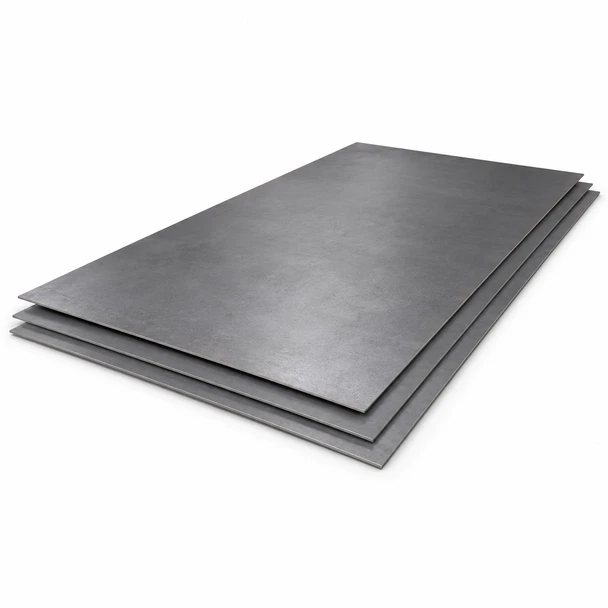

  • Stack of plain carbon steel sheets with flat surfaces and thin edges on a white background.
  • A1011 CS Type B steel sheet chart showing four gauges, SKUs, 4-by-8-foot panel dimensions, sheet weights and LTL-only shipping.
$126.55 - $272.23

Represents the combined quantity sold of all the sizes under this product SKU.
Sold:
Frequently bought together:

Description

GetPipe / Steel Sheet

Carbon Steel Sheet – 4 ft × 8 ft

ASTM A1011 CS Type B carbon steel sheet for fabrication and shop projects. Choose from four gauge options, supplied as full 48-inch × 96-inch panels.

48 × 96 inFull panel dimensions
Sold eachQuantity 1 = one sheet
LTL onlyFreight shipping

Choose your sheet gauge

Gauge describes sheet thickness. A lower gauge number means thicker steel. Use the nominal thickness reference below to compare your options.

  • 16 GA — 0.0598 in nominal thickness
    4 ft × 8 ft full sheet · SKU 01609
  • 14 GA — 0.0747 in nominal thickness
    4 ft × 8 ft full sheet · SKU 25584
  • 11 GA — 0.1196 in nominal thickness
    4 ft × 8 ft full sheet · SKU 01496
  • 10 GA — 0.1345 in nominal thickness
    4 ft × 8 ft full sheet · SKU 01472

Order by the full sheet

Select the gauge and enter the number of sheets you need. Each quantity represents one full 4-foot × 8-foot sheet. This product is sold per sheet, not by the foot.

Material: ASTM A1011 CS Type B (Commercial Steel, Type B) carbon steel.

Nominal thickness reference: The inch values shown are standard nominal gauge equivalents for uncoated carbon steel, not measurements of each supplied sheet. Actual thickness is subject to applicable mill tolerances. Full sheets only, 48 × 96 inches. Verify any critical thickness requirement before ordering.

Before you order

What does quantity one include?

Quantity one means one full 4-foot × 8-foot sheet in the selected gauge. Standard sheet dimensions are 48 × 96 inches. Pricing is per full sheet.

Which gauges are available to select?

16 GA is nominally 0.0598 inch thick; 14 GA is 0.0747 inch; 11 GA is 0.1196 inch; and 10 GA is 0.1345 inch. All four options are full 4-foot × 8-foot sheets of ASTM A1011 CS Type B carbon steel. Nominal values are reference dimensions, not guaranteed measured thicknesses; mill tolerances apply.

How do these sheets ship?

Steel sheets ship by LTL freight only. Freight charges and delivery requirements apply; the parcel free-shipping offer does not cover this product.
