Lesso America

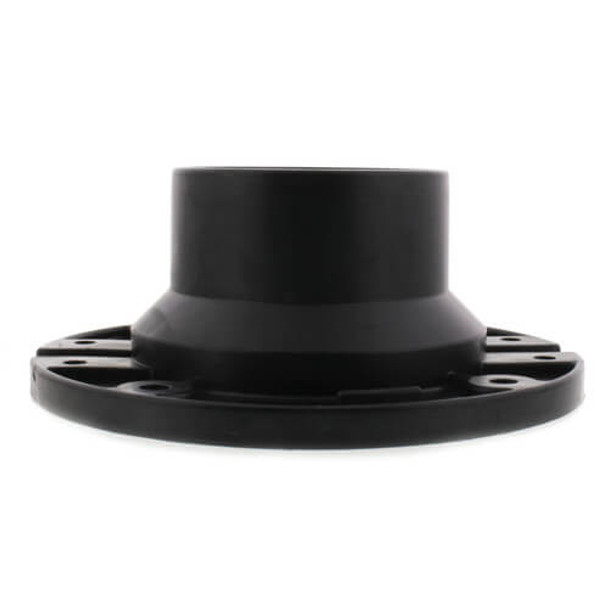

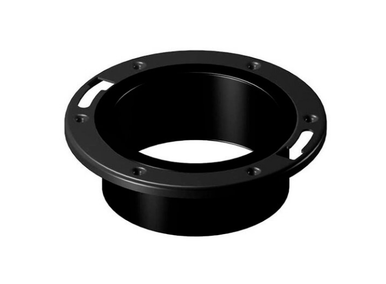

ABS DWV Closet Flange W/ Adjustable Plastic Ring (SPG)
- SKU:
- LN812P
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV Closet Flange W/ Adjustable Plastic Ring (SPG)
ABS DWV Closet Flanges with Adjustable Plastic Ring provide a secure toilet-to-drain connection with a spigot-style outlet and an adjustable mounting ring for improved fixture alignment.
Featuring a spigot (SPG) connection and an adjustable plastic ring, this closet flange is designed to support a toilet at floor level while connecting directly into a compatible ABS DWV hub or fitting below. The adjustable ring provides added flexibility when aligning the toilet mounting slots, while the spigot connection can simplify compact fitting-to-fitting installations. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV closet flange with adjustable plastic ring
- Spigot (SPG) connection configuration
- Designed for toilet installations
- Adjustable plastic mounting ring
- Allows improved mounting-slot alignment
- Spigot end fits into a compatible ABS DWV hub
- Can reduce the need for an additional coupling
- Provides a stable toilet mounting connection at floor level
- Designed for compatible ABS solvent-cement installation
- Suitable for sanitary drain, waste, and vent systems
- Suitable for residential and commercial plumbing applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV Closet Flange with Adjustable Plastic Ring |
|---|---|
| Material | ABS |
| Ring Material | Plastic |
| Connection Type | Spigot (SPG) |
| Ring Configuration | Adjustable |
| Joint Method | Solvent Cement into Compatible Hub Connection |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Connect and Support a Toilet While Allowing Mounting-Ring Alignment Adjustment |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Toilet Installations, Residential Bathrooms, Commercial Restrooms, Sanitary Drainage, and ABS DWV Systems |
Connection Configuration
Spigot Connection
The spigot end is designed to fit into a compatible ABS DWV hub or fitting for solvent-cement installation.
Adjustable Plastic Ring
The plastic mounting ring can be positioned to help align the toilet mounting slots with the intended fixture orientation before final fastening.
Adjustable Ring & Spigot Design
This closet flange combines a spigot-style DWV connection with an adjustable mounting ring in one fitting.
The spigot connection can fit directly into a compatible ABS DWV hub, which may help reduce overall installation length and eliminate the need for an additional coupling in some layouts.
The adjustable plastic ring provides added positioning flexibility so the toilet mounting slots can be aligned after the flange body is positioned at the drain connection.
Why Choose an ABS DWV Closet Flange with Adjustable Plastic Ring?
Installation Flexibility
- Adjustable mounting ring
- Helps simplify toilet bolt alignment
- Provides added positioning flexibility
- Useful during new installations and remodels
- Supports proper fixture orientation
Compact Spigot Connection
- Fits into a compatible ABS DWV hub
- Can reduce the need for an extra coupling
- Useful in space-sensitive installations
- Designed for solvent-cement joining
- Compatible with non-pressure ABS DWV systems
Typical Applications
Toilet Installations
- Residential bathrooms
- Commercial restrooms
- New toilet installations
- Bathroom remodels
- ABS DWV closet connections
Alignment-Sensitive Installations
- Fixture mounting adjustments
- Existing closet drain connections
- New construction rough-ins
- Residential plumbing
- Commercial plumbing
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify the nominal spigot size before installation and confirm compatibility with the intended ABS DWV hub or mating fitting.
Position the flange at the proper elevation for the finished floor and toilet installation.
Clean and prepare the spigot end and mating hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the flange into the mating hub before applying solvent cement to confirm insertion depth, flange elevation, and general fixture position.
Apply compatible ABS solvent cement as required and fully seat the spigot into the mating hub while maintaining correct flange position.
Adjust the plastic ring to align the mounting slots with the intended toilet position, then secure the flange according to the manufacturer's instructions and applicable plumbing requirements.
Complete the toilet connection using the appropriate fixture seal and mounting hardware.
Our piping specialists can help review your drain size, spigot connection, flange configuration, mounting requirements, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV closet flange with adjustable plastic ring used for?
It connects a toilet to an ABS DWV system while providing an adjustable mounting ring that helps align the fixture mounting slots during installation.
What does SPG mean?
SPG means spigot. The connection is designed to fit into a compatible ABS DWV hub rather than receiving pipe inside a socket.
What is the purpose of the adjustable plastic ring?
The ring allows the mounting slots to be positioned for better alignment with the toilet and fixture mounting hardware.
How is this different from the HUB version?
The SPG version has a spigot connection that fits into a compatible hub, while the HUB version has a socket connection that receives compatible ABS DWV pipe.
Can the spigot connection fit directly into another fitting?
Yes. The spigot end is designed to fit into a compatible ABS DWV hub, which can reduce the need for an additional coupling in some installations.
Should the adjustable ring be aligned before final fastening?
Yes. Confirm the intended toilet orientation and mounting-slot position before securing the flange.
Does the spigot connection require solvent cement?
Yes. The spigot-to-hub connection is intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, and vent applications.
Can it be used for compressed air or gas?
No. The supplied product information states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What is the maximum operating temperature?
The supplied product information specifies applications where operating temperatures do not exceed 140°F.
What should I verify before ordering?
Confirm the spigot size, mating hub size, adjustable-ring configuration, toilet drain requirements, finished-floor requirements, and compatibility with the intended ABS DWV system.
Important Ordering & Installation Notes
- This listing is for an ABS DWV Closet Flange with Adjustable Plastic Ring and SPG connection.
- Verify the nominal spigot size before ordering.
- Confirm compatibility with the intended mating ABS DWV hub or fitting.
- The fitting includes an adjustable plastic mounting ring.
- Confirm mounting-ring position before final fastening.
- Align the mounting slots with the intended toilet orientation.
- The spigot end is designed to fit into a compatible ABS DWV hub.
- The spigot-to-hub connection is intended for solvent-cement installation.
- The spigot configuration can reduce the need for an additional coupling in some installations.
- Confirm flange elevation relative to the finished floor before installation.
- Dry-fit the flange into the mating hub before final assembly.
- Adjust the ring only as intended by the manufacturer.
- Secure the flange according to applicable plumbing and installation requirements.
- Use an appropriate toilet sealing method for the final fixture installation.
- This fitting is intended for non-pressure drain, waste, and vent applications.
- Do not use for transporting compressed air or gas.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat the spigot into the compatible mating hub.
- Maintain correct flange position while the solvent-cement joint sets.
- Allow the completed joint to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals, fire-stopping materials, thread sealants, and other aggressive agents that may damage ABS compounds.
- Consult manufacturer documentation for complete dimensions, ring adjustment details, and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
