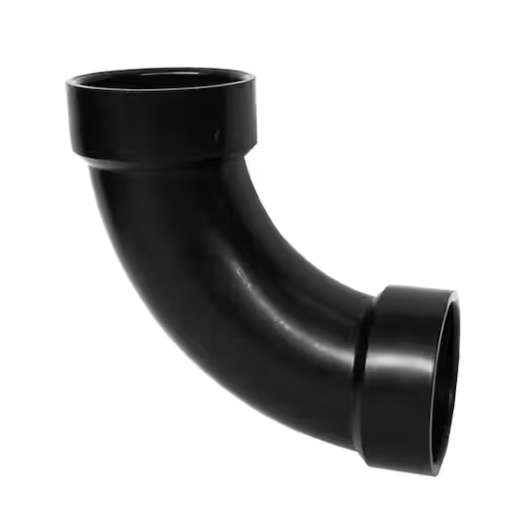

ABS DWV 90 Elbow (HUB x HUB)
- SKU:
- LN300
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV 90 Elbow (HUB x HUB)
ABS DWV 90° Elbows provide a dependable 90-degree directional change in non-pressure drain, waste, vent, sewer, and general drainage systems.
Featuring hub connections on both ends, this elbow is designed to join compatible ABS DWV pipe while redirecting flow through a 90-degree bend. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV 90° elbow
- Hub x Hub connection configuration
- Provides a 90-degree change in direction
- Designed for compatible ABS DWV pipe
- Hub connections for solvent-cement installation
- Designed for drain, waste, and vent systems
- Suitable for sewer and general drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV 90° Elbow |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub |
| Angle | 90° |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Provide a 90-Degree Directional Change in ABS DWV Piping |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sanitary Drainage, Waste Lines, Vent Systems, Sewer, and General Drainage |
Connection Configuration
Hub Connection
One hub accepts compatible ABS DWV pipe for a permanent solvent-cement connection on one side of the directional change.
Opposite Hub Connection
The second hub accepts compatible ABS DWV pipe on the opposite side, completing the 90-degree turn within the drainage system.
Construction Details
The elbow is manufactured from virgin ABS polymer material suitable for molded fittings and ABS drainage systems.
Its 90-degree configuration redirects the piping layout while maintaining a compact fitting profile for residential and commercial DWV installations.
Both hub connections are designed for compatible ABS solvent-cement joining, creating permanent connections when installed according to approved procedures.
Why Choose an ABS DWV 90° Elbow?
Directional Change
- Creates a 90-degree turn in ABS DWV piping
- Hub connections on both ends
- Compact one-piece fitting
- Useful for changing drainage routing
- Suitable for a wide range of DWV layouts
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term drainage service
Typical Applications
Drainage Systems
- Sanitary drain lines
- Waste piping
- Vent piping
- Sewer connections
- General building drainage
Routing Applications
- 90-degree piping turns
- Horizontal and vertical drainage transitions
- Residential plumbing
- Commercial drainage systems
- Compatible ABS DWV modifications
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify the nominal hub size before installation and confirm compatibility with the intended ABS DWV pipe.
Cut the pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Apply compatible ABS solvent cement as required, then fully seat each pipe into its corresponding hub while maintaining the required 90-degree alignment.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage system into service.
Our piping specialists can help review your nominal pipe size, drainage layout, connection requirements, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV 90° elbow used for?
It is used to create a 90-degree change in direction in a non-pressure ABS drain, waste, or vent piping system.
What does HUB x HUB mean?
It means both ends are hub connections designed to accept compatible ABS pipe for solvent-cement installation.
Does this fitting require solvent cement?
Yes. Both hub connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, vent, sewer, and general drainage applications.
Can it be used for compressed air or gas?
No. The supplied product information specifically states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What is the maximum operating temperature?
The supplied product information specifies applications where operating temperatures do not exceed 140°F.
What standards are referenced?
The supplied product information references ASTM D3965, ASTM D2661, CSA B181.1, and NSF Standard 14.
Can this elbow be used in sewer and general drainage applications?
Yes. The supplied product information identifies sewer and general drainage as suitable applications in addition to sanitary DWV systems.
What should I verify before ordering?
Confirm the nominal hub size, mating ABS pipe size, required 90-degree configuration, operating temperature, and intended non-pressure drainage application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV 90° Elbow with HUB x HUB connections.
- Verify the required nominal pipe size before ordering.
- Both hub ends accept compatible ABS DWV pipe.
- This fitting provides a 90-degree change in piping direction.
- This fitting is intended for non-pressure DWV, sewer, and general drainage applications.
- Do not use for compressed air or gas service.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Maintain proper 90-degree alignment during installation.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals and materials that may damage ABS compounds.
- Use caution with fire-stopping materials, sealants, and chemicals used around ABS piping.
- Consult manufacturer documentation for complete dimensions and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
