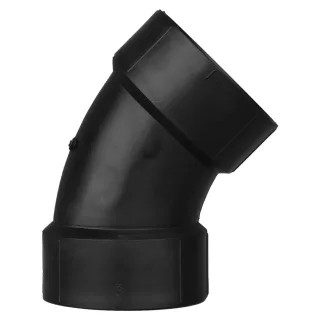

ABS DWV 45 Elbow Short-Turn (HUB x HUB)
- SKU:
- LN321S
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
ABS DWV 45 Elbow Short-Turn (HUB x HUB)
ABS DWV 45° Short-Turn Elbows provide a compact 45-degree directional change in non-pressure drain, waste, vent, sewer, and general drainage systems.
Featuring hub connections on both ends, this fitting is designed for installations where a tighter 45-degree turn is needed and available space is limited. Manufactured for ABS DWV service, it meets recognized standards including ASTM D2661, CSA B181.1, and NSF Standard 14.
Product Highlights
- ABS DWV 45° short-turn elbow
- Hub x Hub connection configuration
- Provides a compact 45-degree directional change
- Short-turn profile for confined installations
- Hub connections accept compatible ABS DWV pipe
- Designed for solvent-cement installation
- Suitable for drain, waste, and vent systems
- Suitable for sewer and general drainage applications
- Non-pressure fitting
- Maximum operating temperature of 140°F
- Not intended for compressed air or gas service
- Not intended for pressure testing
- Manufactured from virgin ABS polymers
- Complies with ASTM D2661
- Certified to CSA B181.1
- Meets NSF Standard 14 requirements
Technical Specifications
| Product Type | ABS DWV 45° Elbow Short-Turn |
|---|---|
| Material | ABS |
| Connection Type | Hub x Hub |
| Angle | 45° |
| Turn Type | Short-Turn |
| Joint Method | Solvent Cement |
| System Type | Drain, Waste, and Vent (DWV) |
| Pressure Service | Non-Pressure |
| Maximum Operating Temperature | 140°F |
| Primary Function | Provide a Compact 45-Degree Directional Change in ABS DWV Piping |
| Referenced Standards | ASTM D3965, ASTM D2661, CSA B181.1, NSF Standard 14 |
| Typical Applications | Sanitary Drainage, Waste Lines, Vent Systems, Sewer, General Drainage, and Tight-Space Routing |
Connection Configuration
Hub Connection
One hub accepts compatible ABS DWV pipe for a permanent solvent-cement connection on one side of the fitting.
Opposite Hub Connection
The second hub accepts compatible ABS DWV pipe on the opposite side, completing the 45-degree directional change.
Short-Turn Design
The short-turn profile provides a compact 45-degree bend where installation space is limited.
This tighter configuration can be useful when routing ABS DWV piping around nearby framing, fixtures, or other building components.
Both hub connections are designed for compatible ABS solvent-cement joining, creating permanent non-pressure drainage joints when installed according to approved procedures.
Why Choose an ABS DWV 45° Short-Turn Elbow?
Compact Routing
- Provides a 45-degree directional change
- Short-turn profile saves installation space
- Useful in confined plumbing layouts
- Hub connections on both ends
- Compact one-piece fitting
ABS DWV Benefits
- Lightweight construction
- Easy handling and installation
- Suitable for non-pressure drainage systems
- Compatible with ABS DWV piping systems
- Designed for long-term drainage service
Typical Applications
Drainage Systems
- Sanitary drain lines
- Waste piping
- Vent piping
- Sewer connections
- General building drainage
Tight-Space Routing
- Compact 45-degree turns
- Offset drainage layouts
- Confined piping spaces
- Residential plumbing
- Commercial drainage systems
Standards & Compliance
- ASTM D3965: ABS material requirements for pipe extrusion and molded fittings
- ASTM D2661: Schedule 40 ABS drain, waste, and vent pipe and fittings
- CSA B181.1: ABS drain, waste, and vent pipe, fittings, and accessories
- NSF Standard 14: Plastic piping system components and related materials
Installation
Verify the nominal hub size before installation and confirm compatibility with the intended ABS DWV pipe.
Cut both pipe ends square and remove burrs. Clean and prepare the pipe and hub surfaces according to accepted ABS solvent-cement installation procedures.
Dry-fit the assembly first to confirm the required 45-degree orientation before applying solvent cement.
Apply compatible ABS solvent cement as required, then fully seat each pipe into its corresponding hub while maintaining proper alignment.
Allow completed joints to cure according to the solvent cement manufacturer's recommendations before placing the drainage system into service.
Our piping specialists can help review your pipe size, required angle, available installation space, and ABS DWV compatibility before you order.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is an ABS DWV 45° short-turn elbow used for?
It is used to create a compact 45-degree directional change in a non-pressure ABS drain, waste, or vent piping system.
What does HUB x HUB mean?
It means both ends are hub connections designed to accept compatible ABS pipe for solvent-cement installation.
What does short-turn mean?
Short-turn refers to the more compact bend profile, which reduces the amount of installation space needed for the 45-degree directional change.
Does this fitting require solvent cement?
Yes. Both hub connections are intended for compatible ABS solvent-cement installation.
Is this fitting intended for pressure systems?
No. This fitting is intended for non-pressure drain, waste, vent, sewer, and general drainage applications.
Can it be used for compressed air or gas?
No. The supplied product information specifically states that ABS DWV fittings are not intended for transporting compressed air or gas.
Can this fitting be used for pressure testing?
No. The supplied product information states that ABS DWV fittings should not be used for pressure testing.
What is the maximum operating temperature?
The supplied product information specifies applications where operating temperatures do not exceed 140°F.
What standards are referenced?
The supplied product information references ASTM D3965, ASTM D2661, CSA B181.1, and NSF Standard 14.
What should I verify before ordering?
Confirm the nominal hub size, mating ABS pipe size, required 45-degree short-turn configuration, available installation space, and intended non-pressure drainage application.
Important Ordering & Installation Notes
- This listing is for an ABS DWV 45° Elbow Short-Turn with HUB x HUB connections.
- Verify the required nominal pipe size before ordering.
- Both hub ends accept compatible ABS DWV pipe.
- This fitting provides a compact 45-degree directional change.
- The short-turn profile is intended for space-conscious installations.
- Dry-fit the assembly before applying solvent cement.
- This fitting is intended for non-pressure DWV, sewer, and general drainage applications.
- Do not use for compressed air or gas service.
- Do not use for pressure testing.
- Maximum operating temperature is 140°F.
- Use compatible ABS solvent cement for installation.
- Cut pipe square and remove burrs before assembly.
- Clean and prepare all mating surfaces before solvent-cement installation.
- Fully seat each ABS pipe into its corresponding hub.
- Maintain proper 45-degree alignment during installation.
- Allow completed joints to cure according to the solvent cement manufacturer's recommendations before service.
- Protect the fitting from incompatible chemicals and materials that may damage ABS compounds.
- Use caution with fire-stopping materials, sealants, and chemicals used around ABS piping.
- Consult manufacturer documentation for complete dimensions and installation requirements.
- Follow applicable plumbing codes and manufacturer installation recommendations.
