6000# Forged Steel Socket Weld 45 Elbows
- SKU:
- 6M45S
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

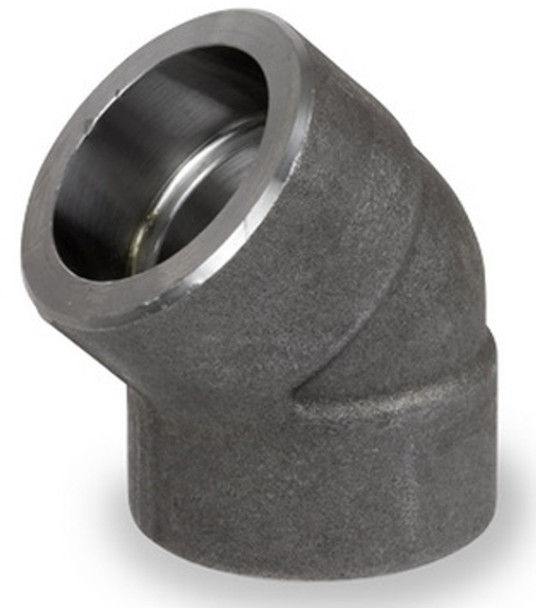

6000# Forged Steel Socket Weld 45 Degree Elbows
6000# Forged Steel Socket Weld 45 Degree Elbows are designed to provide a gradual directional change in compatible high-pressure socket weld piping systems.
Manufactured from normalized forged carbon steel conforming to ASME SA105N, these elbows feature socket weld connections for strong, permanent welded joints. Forged steel fitting dimensions conform to ASME B16.11, making these fittings suitable for demanding industrial, mechanical, oil and gas, power generation, and process piping applications.
Product Highlights
- 6000# forged steel socket weld 45° elbow
- Provides a 45-degree directional change
- Socket weld connections on both ends
- Compact forged steel fitting design
- Forged steel fitting material conforms to ASME SA105N
- Material is normalized
- Forged steel fitting dimensions conform to ASME B16.11
- Designed for welded high-pressure piping systems
- Provides a permanent welded connection when properly installed
- Manufacturing facility is ISO certified
- Product specification sheet available
- Pipe sizing reference chart available
- Certificate of Conformance available
Technical Specifications
| Product Type | Socket Weld 45° Elbow |
|---|---|
| Pressure Class | 6000# |
| Material | Forged Carbon Steel |
| Connection Type | Socket Weld x Socket Weld |
| Elbow Angle | 45 Degrees |
| Primary Function | Change Piping Direction by 45 Degrees |
| Material Standard | ASME SA105N |
| Heat Treatment | Normalized |
| Dimensional Standard | ASME B16.11 |
| Manufacturing | ISO-Certified Facility |
| Documentation | Specification Sheet and Certificate of Conformance Available |
45° Elbow Configuration
Socket Weld Inlet
One socket opening accepts compatible pipe for welded assembly.
45° Forged Body
The forged elbow body redirects the piping run through a gradual 45-degree angle.
Socket Weld Outlet
The second socket opening connects to the adjoining pipe through a welded joint.
Construction Details
These 6000# socket weld 45° elbows are manufactured from normalized ASME SA105N forged carbon steel for demanding piping applications requiring strength, durability, and dimensional consistency.
Forged steel fitting dimensions conform to ASME B16.11. The socket weld configuration is designed to accept compatible pipe ends and form strong welded joints when installed using qualified procedures.
Why Choose a Forged Steel Socket Weld 45° Elbow?
Gradual Directional Change
- Changes piping direction by 45 degrees
- Socket weld connections on both ends
- Provides a more gradual turn than a 90° elbow
- Compact forged fitting configuration
- Designed for compatible 6000# socket weld systems
Forged Steel Construction
- Manufactured from forged carbon steel
- Material conforms to ASME SA105N
- Normalized material condition
- Dimensions conform to ASME B16.11
- Manufactured in an ISO-certified facility
Socket Weld 45° Elbow vs. Threaded 45° Elbow
Socket Weld 45° Elbow
A socket weld elbow uses welded connections to create a permanent piping joint and is suited to systems where socket weld construction is specified.
Threaded 45° Elbow
A threaded elbow uses mechanical threaded connections and can be assembled without welding where threaded construction is appropriate.
Typical Applications
Industrial & Process Piping
- Industrial process piping
- Mechanical piping systems
- Plant utility piping
- Power generation piping
- Fabricated piping assemblies
Socket Weld Piping Systems
- Oil and gas piping
- Equipment connections
- Process piping
- High-pressure welded systems
- Compatible 6000# socket weld applications
Applicable Forged Steel Standards
ASME SA105N
Forged steel fitting material conforms to ASME SA105N and is supplied in the normalized condition.
ASME B16.11
Forged steel fitting dimensions conform to ASME B16.11.
Ask Willy: Need Pipe Size Help?
Use our common pipe diameters and wall thickness chart to confirm sizing before ordering 6000# forged steel socket weld 45° elbows. You can also review the product specification sheet and Certificate of Conformance below.
Product Documentation
Product Specification Sheet
Review the specification sheet for dimensional and product-specific information on the 6000# forged steel socket weld 45° elbow.
Pipe Size Chart
Use the common pipe diameters and wall thickness chart to help confirm compatible pipe sizing before ordering or fabrication.
Certificate of Conformance
Certificate of Conformance documentation is available through the linked PDF.
Frequently Asked Questions
What is a 6000# forged steel socket weld 45° elbow?
It is a forged steel fitting with socket weld connections designed to change the direction of compatible piping by 45 degrees.
What type of connections does this elbow use?
This fitting uses socket weld connections on both ends.
Why use a 45° elbow instead of a 90° elbow?
A 45° elbow provides a more gradual directional change when the piping layout does not require a full right-angle turn.
What material standard applies?
The supplied product information states that forged steel fitting material conforms to ASME SA105N.
Is the material normalized?
Yes. The supplied product information specifies normalized forged carbon steel.
What dimensional standard applies?
Forged steel fitting dimensions conform to ASME B16.11.
Is this fitting threaded?
No. This listing is for a socket weld elbow, which is intended for welded pipe connections rather than threaded assembly.
Is the manufacturing facility ISO certified?
Yes. The supplied product information states that the manufacturing facility is ISO certified.
Is a specification sheet available?
Yes. A product specification sheet is linked in the Willy section above.
What should I verify before ordering?
Confirm the nominal pipe size, 6000# class, socket weld configuration, material requirements, and applicable piping-system specifications before ordering.
Important Ordering & Installation Notes
- Confirm the required nominal pipe size before ordering.
- This listing is for a 6000# forged steel socket weld 45° elbow.
- Confirm that the 45-degree directional change matches the intended piping layout.
- Confirm socket weld compatibility with the adjoining pipe.
- Forged steel fitting material conforms to ASME SA105N and is normalized.
- Forged steel fitting dimensions conform to ASME B16.11.
- Verify pipe outside diameter, wall thickness, and fitting dimensions before fabrication.
- Socket weld installation should be performed using applicable piping codes and qualified welding procedures.
- Maintain proper fit-up and installation clearance according to the applicable fabrication requirements.
- Confirm applicable pressure, temperature, material, welding, and project requirements before installation.
- Review the product specification sheet before fabrication or installation.
- Certificate of Conformance documentation is available from the link above.
