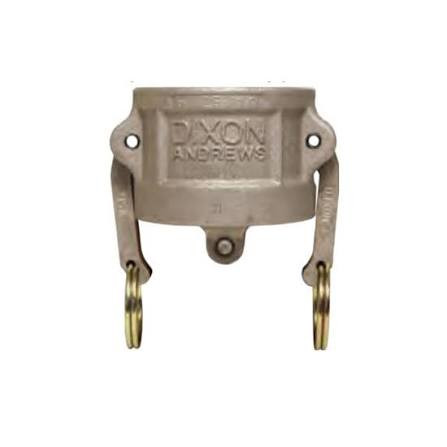

5" Aluminum Cam & Groove Type DC Dust Cap

The 500-DC-AL is designed to close a compatible 5" male cam and groove adapter when the connection is disconnected. The cap helps protect the open connection from dirt, debris, and other contaminants during storage or downtime.

The Type DC configuration incorporates cam arms that engage the mating adapter for convenient installation and removal. Confirm the adapter size and compatibility before placing the dust cap into service.

Dixon manufactures the 500-DC-AL from 356T6 aluminum for use as a protective cam and groove closure. The aluminum body should be inspected before installation for damage, deformation, or contamination.

Check the cam arms and mating adapter at the same time to verify that the components engage correctly. Damaged or excessively worn coupling components should be replaced before use.

The 500-DC-AL is supplied standard with a nitrile rubber gasket positioned inside the dust cap. Dixon also notes that other gasket types are available for applications requiring a different seal material.

Inspect the gasket for cuts, distortion, deterioration, or contamination before installing the cap. Gasket condition and material compatibility should be reviewed for the intended application.

Dixon states that no standard exists for 5" cam and groove fittings and that these fittings generally do not interchange with other manufacturers. Compatibility should therefore be confirmed before ordering or installation.

Dixon also specifies that dust caps and dust plugs are not intended for pressure applications. The 500-DC-AL should be used as a protective closure rather than as a pressure-retaining component.
