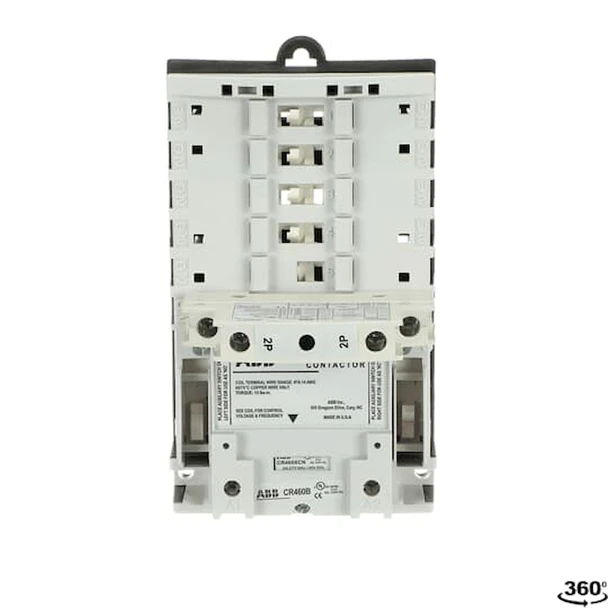

30A Electrically Held Lighting Contactor
- SKU:
- CR463L20ANA
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 2.80 LBS
Description
30A Electrically Held Lighting Contactor
30A Electrically Held Lighting Contactor is an ABB CR463L Series contactor designed for commercial and industrial lighting-control applications. Catalog number CR463L20ANA features a 30A contact rating, two normally open power poles, a 277V AC coil, and an open construction.
The CR463L electrically held contactor platform uses modular power poles and is designed for dependable switching of compatible lighting loads. ABB identifies the CR463L family as a 30A, 2-12 pole lighting contactor system with configurable power poles and field-serviceable components.
Product Highlights
- ABB CR463L Series electrically held lighting contactor
- Catalog number CR463L20ANA
- 30A contact rating
- 2-pole configuration
- 2 normally open (2 NO) power contacts
- 277V AC coil
- Open construction
- Modular power-pole design
- Manual operator
- Contact-position indication
- Designed for commercial and industrial lighting control
- Field-configurable CR460 Series platform
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Catalog Number | CR463L20ANA |
| Series | CR463L / CR460 Series |
| Product Type | Electrically Held Lighting Contactor |
| Contact Rating | 30A |
| Number of Poles | 2 |
| Contact Configuration | 2 Normally Open (2 NO) |
| Coil Voltage | 277V AC |
| Construction | Open |
| Holding Type | Electrically Held |
| Power Pole Rating | 30A |
| Motor Rating | 15A |
| Pilot Duty Rating | A600 |
| UPC | 783166621264 |
Construction Details
The CR463L20ANA is part of ABB's CR463L electrically held lighting contactor family. The CR463L platform uses a standard modular base with replaceable power poles, allowing the contact configuration to be adapted for compatible applications.
This model provides two normally open power poles. ABB's CR463L design includes contact-position indication, convenient side access for field power wiring, a manual operator, enclosed contacts, and an easy-change coil.
The power terminals are designed to accept up to two #8 AWG conductors, while the modular power poles can be changed between normally open and normally closed configurations on compatible assemblies by repositioning the pole according to ABB instructions.
Lighting Contactor Features
30A Power Contacts
The CR463L contactor platform uses power poles rated at 30A for compatible lighting-control applications.
2 Normally Open Poles
CR463L20ANA is supplied with two normally open power contacts for switching compatible electrical loads.
277V AC Coil
This catalog-number configuration uses a 277V AC operating coil. Confirm that the available control voltage matches the contactor coil before installation.
Electrically Held Operation
Continuous Coil Operation
As an electrically held contactor, the operating coil remains energized while the contactor is commanded into its electrically held operating state.
Lighting Control
The contactor provides centralized switching for compatible lighting circuits and other loads permitted by the manufacturer's ratings.
CR463L Modular Power Pole Design
ABB's CR463L lighting contactor platform uses modular power poles that support multiple pole and contact arrangements. The standard CR463L family supports configurations ranging from 2 through 12 poles.
The modular design allows compatible power poles to be serviced or reconfigured while maintaining the standard contactor base. Always follow ABB instructions when changing a power-pole configuration.
Common Applications
Commercial Lighting
- Office building lighting
- Retail lighting systems
- Warehouse lighting
- Exterior lighting control
- Commercial facility lighting
- Building lighting automation
Industrial & Institutional
- Industrial facility lighting
- Manufacturing facilities
- Schools and institutional buildings
- Equipment and utility areas
- Centralized lighting-control systems
- Compatible electrically switched loads
Contact & Terminal Features
Power Terminals
The CR463L platform uses robust power terminals designed to accept up to two #8 AWG conductors and provides convenient side access for field power wiring.
Contact Position Indication
The contactor provides visible contact-position indication to assist with inspection and servicing of the lighting-control assembly.
Installation & Selection Considerations
- Confirm catalog number CR463L20ANA before ordering.
- Verify that a 30A electrically held lighting contactor is required.
- Confirm that two normally open power poles match the intended circuit.
- Verify that 277V AC is available for the operating coil.
- Confirm load type and electrical ratings before installation.
- Do not exceed the ratings of the contactor or connected equipment.
- Use conductor sizes permitted by the manufacturer.
- Follow manufacturer-specified terminal torque requirements.
- Install the open contactor inside a suitable electrical enclosure where required.
- Maintain applicable electrical working clearances.
- De-energize equipment before installation or service.
- Verify absence of voltage before working on electrical equipment.
- Installation and service should be performed by qualified electrical personnel.
- Follow current ABB instructions and applicable electrical codes.
Need Help Selecting a Lighting Contactor?
Our electrical and industrial product specialists can help review your lighting load, pole configuration, coil voltage, control requirements, and enclosure needs to confirm whether CR463L20ANA is the correct lighting contactor for your application.
Frequently Asked Questions
What is the catalog number for this lighting contactor?
The catalog number is CR463L20ANA.
What type of contactor is CR463L20ANA?
CR463L20ANA is an ABB CR463L Series electrically held lighting contactor.
What is the contact rating?
The CR463L20ANA uses 30A rated power contacts.
How many poles does CR463L20ANA have?
This model has two power poles.
What is the contact configuration?
CR463L20ANA is configured with two normally open (2 NO) power contacts.
What is the coil voltage?
The CR463L20ANA configuration uses a 277V AC operating coil.
Is this an electrically held or mechanically held contactor?
CR463L20ANA is an electrically held lighting contactor.
Is this an enclosed contactor?
No. CR463L20ANA is an open lighting contactor. A suitable enclosure may be required according to the installation and applicable electrical requirements.
Can the CR463L power poles be reconfigured?
ABB's CR463L platform uses modular power poles that can be configured for compatible normally open or normally closed arrangements according to manufacturer instructions.
What applications is this contactor designed for?
It is designed for compatible commercial, industrial, and institutional lighting-control applications and other loads permitted by the manufacturer's electrical ratings.
Who should install the contactor?
Installation and service should be performed by qualified electrical personnel with the equipment de-energized and in accordance with current ABB instructions and applicable electrical codes.
