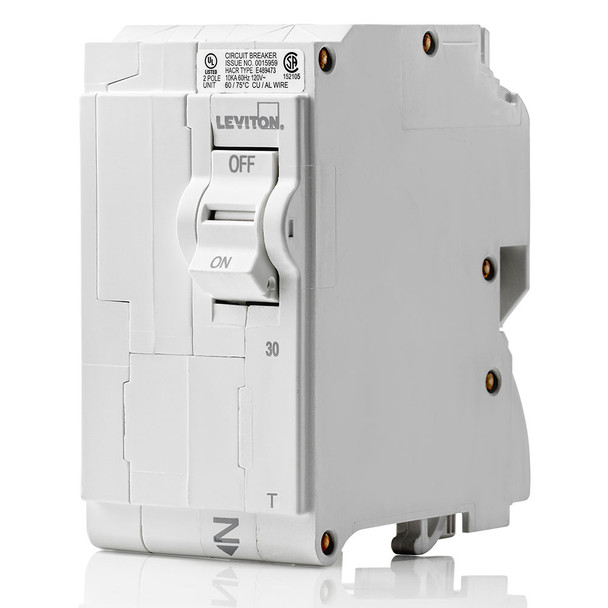

30A 2-Pole Thermal Magnetic Branch Circuit Breaker

The LB230-T is a 30 amp 2-pole standard thermal magnetic branch circuit breaker designed to provide reliable overcurrent protection for residential and light commercial electrical distribution systems.

This breaker is rated for 120/240V and 120/208V applications and is built for dependable circuit protection in compatible load centers and panelboards.

Key Features

• 30 amp current rating
• 2-pole breaker configuration
• Standard thermal magnetic trip protection
• Rated for 120/240V and 120/208V systems
• Branch circuit breaker design
• Provides overload and short-circuit protection
• Compatible with select load centers and panelboards

Construction Details

The thermal magnetic trip mechanism helps protect circuits by responding to both sustained overload conditions and high-current short circuits.

The 2-pole design is suitable for circuits requiring simultaneous disconnection of both poles.

Important Notes

Verify compatibility with the intended load center or panelboard before installation.

Installation should be performed in accordance with applicable electrical codes and manufacturer instructions.

Product Documents

Instruction Sheet Spec Sheet Load Center Brochure Load Center Catalog
