304 Stainless Steel Butt Weld Concentric Reducer - Sch 40
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.00 LBS
Description

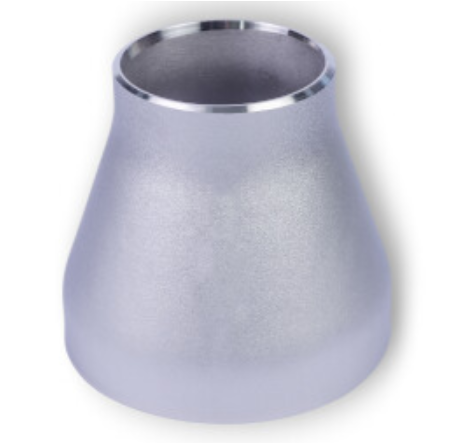

304 Stainless Steel Butt Weld Concentric Reducer - Sch 40
304/L Stainless Steel Schedule 40S Butt Weld Concentric Reducers provide a smooth, centered transition between different pipe sizes. Manufactured from ASTM A/SA403 WP304/L stainless steel, these fittings offer dependable corrosion resistance, strength, and weldability for commercial, industrial, and process piping systems.
The concentric design keeps the inlet and outlet pipe centerlines aligned, supporting a balanced flow transition while helping reduce turbulence and pressure loss. Available reducing combinations range from 3/4" × 1/2" through 10" × 8".
Product Highlights
- Concentric reducer with aligned inlet and outlet centerlines
- Schedule 40S wall thickness
- ASTM A/SA403 WP304/L stainless steel construction
- Manufactured to ASME B16.9 dimensional standards
- Butt weld ends provide strong, permanent piping connections
- Smooth tapered profile supports an efficient flow transition
- Dual-grade 304/L material provides corrosion resistance and weldability
- Heavier wall construction than comparable Schedule 10S reducers
- Available in reducing combinations from 3/4" × 1/2" through 10" × 8"
Technical Specifications
| Product Type | Concentric Butt Weld Reducer |
|---|---|
| Material | 304/L Stainless Steel |
| Material Specification | ASTM A/SA403 WP304/L |
| Pipe Schedule | Schedule 40S |
| Connection Type | Butt Weld (BW) |
| Reducer Type | Concentric |
| Centerline | Aligned inlet and outlet centerlines |
| Dimensional Standard | ASME B16.9 |
| Size Range | Reducing combinations from 3/4" × 1/2" through 10" × 8" |
| Applications | Commercial, industrial, process, and stainless steel piping systems |
Construction Details
304/L Stainless Steel
Manufactured from dual-certified WP304/L stainless steel, combining the corrosion resistance of Type 304 with the lower carbon content and improved weldability of Type 304L.
Concentric Taper
The symmetrical tapered body maintains a common centerline between the larger and smaller pipe ends for a balanced reduction in pipe diameter.
Schedule 40S Fit-Up
Each reducer is formed to ASME B16.9 dimensions for accurate fit-up with corresponding Schedule 40S stainless steel pipe.
Material & Reducer Design
Material Construction
- 304/L stainless steel
- ASTM A/SA403 WP304/L specification
- Excellent corrosion resistance
- Improved weldability from low-carbon 304L chemistry
- Durable construction for demanding piping service
Concentric Reducer Configuration
- Centered reducing profile
- Aligned inlet and outlet centerlines
- Butt weld end connections
- Schedule 40S wall thickness
- ASME B16.9 dimensional standard
Why Use a Concentric Reducer?
A concentric reducer transitions between different pipe diameters while keeping both pipe centerlines aligned. The symmetrical taper supports a smooth, balanced reduction and is commonly used where maintaining a common piping centerline is important.
Schedule 40S Construction
Schedule 40S stainless steel reducers use a heavier wall than comparable Schedule 10S fittings. This provides additional mechanical strength while maintaining compatibility with corresponding Schedule 40S stainless steel piping.
Available Size Combinations
These Schedule 40S stainless steel concentric reducers are available in multiple reducing combinations ranging from 3/4" × 1/2" through 10" × 8". Select the larger and smaller nominal pipe sizes required for the piping system being connected.
Typical Applications
Commercial & Industrial
- Commercial piping systems
- Industrial process piping
- Manufacturing facilities
- Utility piping systems
Process Piping
- Stainless steel process piping
- Piping systems requiring a centered size transition
- Schedule 40S piping assemblies
- Permanent welded reducer connections
Pipe Size Reference
Need help confirming nominal pipe diameters or Schedule 40S wall thicknesses before ordering? Use our common pipe diameter and wall thickness reference chart to verify the correct larger and smaller pipe sizes for your installation.
Product Documents
Service Metal Schedule 40 Concentric & Eccentric Reducer Spec Sheet
Review the product specification sheet for dimensions and additional manufacturer information for Schedule 40 stainless steel concentric and eccentric butt weld reducers.
Certificate of Conformance
Review the available Certificate of Conformance documentation for applicable product and material information.
Need Help Selecting the Correct Concentric Reducer?
Our industrial PVF specialists can help confirm your required larger pipe size, smaller pipe size, Schedule 40S wall thickness, material, and reducer configuration before you order.
Frequently Asked Questions
What is a concentric reducer used for?
A concentric reducer connects two different pipe diameters while keeping the larger and smaller pipe ends aligned on a common centerline.
What material are these reducers made from?
These reducers are manufactured from ASTM A/SA403 WP304/L stainless steel.
What pipe schedule are these reducers designed for?
These concentric reducers are designed for Schedule 40S stainless steel piping systems.
What is the difference between a concentric and eccentric reducer?
A concentric reducer keeps the inlet and outlet centered on a common centerline. An eccentric reducer offsets the transition so one side of the piping run remains aligned.
What connection type is used?
These fittings use butt weld connections to create permanent welded joints with compatible Schedule 40S stainless steel piping.
What dimensional standard do these reducers meet?
The reducers are manufactured to ASME B16.9 dimensional requirements.
What reducing sizes are available?
Available reducing combinations range from 3/4" × 1/2" through 10" × 8".
How do I select the correct reducer size?
Select the fitting according to both the larger and smaller nominal pipe sizes required in the system, and confirm that the corresponding Schedule 40S wall thicknesses are compatible.
Important Ordering & Installation Notes
- Select both the larger and smaller nominal pipe sizes required for the reducing connection.
- Available combinations range from 3/4" × 1/2" through 10" × 8".
- Material: ASTM A/SA403 WP304/L stainless steel.
- Pipe schedule: Schedule 40S.
- Reducer configuration: Concentric.
- Connection: Butt weld (BW).
- Dimensional standard: ASME B16.9.
- Confirm both nominal pipe sizes and their corresponding Schedule 40S wall thicknesses before installation.
- Butt weld fittings require proper end preparation and qualified welding procedures to maintain joint integrity and corrosion resistance.
- Pressure and temperature ratings depend on the complete piping system design, applicable code, joining method, and operating conditions.
