3000# Forged Steel Socket Weld Cross
- SKU:
- 3MCRSS
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

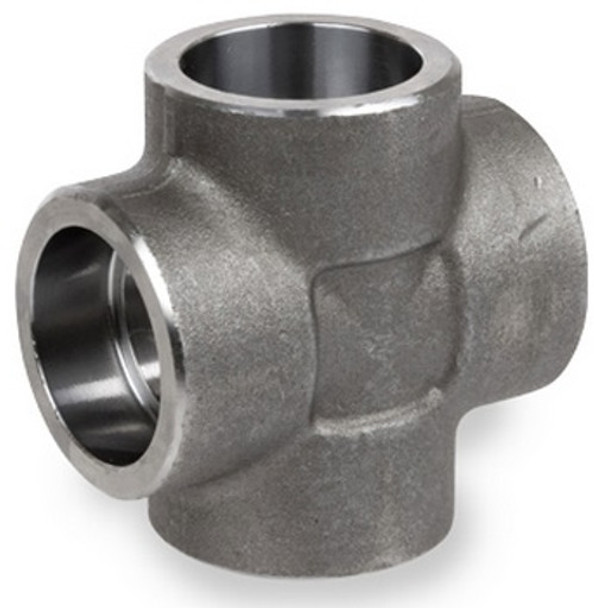

3000# Forged Steel Socket Weld Cross
3000# Forged Steel Socket Weld Crosses are designed to create four-way branch connections in socket weld piping systems, allowing flow to be distributed in multiple directions from a single fitting.
Manufactured from normalized forged steel conforming to ASME SA105N, these crosses provide a compact and durable connection for industrial, commercial, mechanical, and process piping applications. Forged steel fitting dimensions conform to ASME B16.11, and the manufacturing facility is ISO certified.
Product Highlights
- 3000# forged steel socket weld cross
- Four-way piping connection
- Four socket weld openings
- Designed for multi-directional flow distribution
- Compact forged steel construction
- Forged steel fitting material conforms to ASME SA105N
- Material is normalized
- Forged steel fitting dimensions conform to ASME B16.11
- NPT threads on applicable forged steel fittings conform to ASME B1.20.1
- Forged steel socket weld inserts conform to MSS-SP-79
- Forged steel unions conform to MSS-SP-83
- Forged steel outlet fittings conform to MSS-SP-97
- Manufacturing facility is ISO certified
- Product specification sheet available
- Certificate of Conformance available
Technical Specifications
| Product Type | Socket Weld Cross |
|---|---|
| Pressure Class | 3000# |
| Material | Forged Steel |
| Connection Type | Socket Weld |
| Configuration | Four-Way Cross |
| Number of Openings | 4 |
| Primary Function | Multi-Directional Branch Connection |
| Material Standard | ASME SA105N |
| Heat Treatment | Normalized |
| Dimensional Standard | ASME B16.11 |
| Thread Standard | ASME B1.20.1 for Applicable NPT Forged Steel Fittings |
| Socket Weld Insert Standard | MSS-SP-79 |
| Forged Steel Union Standard | MSS-SP-83 |
| Outlet Fitting Standard | MSS-SP-97 |
| Manufacturing | ISO-Certified Facility |
| Documentation | Specification Sheet and Certificate of Conformance Available |
Socket Weld Cross Configuration
Straight-Through Run
Two opposing socket weld openings form the primary straight-through piping path.
Opposing Branches
Two additional socket weld openings provide perpendicular branch connections from the main run.
Four Socket Weld Ends
Each opening is designed to accept compatible pipe for welded installation.
Construction Details
These 3000# socket weld crosses are manufactured from normalized forged steel conforming to ASME SA105N. Forged fitting dimensions conform to ASME B16.11.
The four-way configuration allows a piping system to continue straight while also creating two opposing perpendicular branch connections from the same fitting.
Why Choose a Forged Steel Socket Weld Cross?
Four-Way Flow Distribution
- Provides four piping connection points
- Supports a straight-through main run
- Adds two opposing branch connections
- Useful for manifolds and distribution layouts
- Can reduce the number of separate branch fittings required
Forged Steel Construction
- Manufactured from forged steel
- Material conforms to ASME SA105N
- Normalized material condition
- Dimensions conform to ASME B16.11
- Manufactured in an ISO-certified facility
Cross vs. Tee
Socket Weld Cross
A cross provides four connection points, allowing a straight-through run with two opposing branch connections.
Socket Weld Tee
A tee provides three connection points, consisting of a straight-through run and one perpendicular branch connection.
Typical Applications
Industrial & Mechanical Piping
- Industrial process piping
- Mechanical piping systems
- Plant utility piping
- Power piping systems
- Fabricated piping assemblies
Distribution & Branch Systems
- Manifold piping layouts
- Multi-directional branch systems
- Process distribution piping
- Equipment connections
- Compatible high-pressure socket weld systems
Applicable Forged Steel Standards
ASME SA105N & B16.11
Forged steel material conforms to ASME SA105N in the normalized condition, and fitting dimensions conform to ASME B16.11.
MSS-SP-79 & MSS-SP-83
Forged steel socket weld inserts conform to MSS-SP-79, while forged steel unions conform to MSS-SP-83.
MSS-SP-97
Forged steel outlet fittings conform to MSS-SP-97.
Ask Willy: Need Pipe Size Help?
Use our common pipe diameters and wall thickness chart to confirm sizing before ordering 3000# forged steel socket weld crosses. You can also review the product specification sheet and Certificate of Conformance below.
Product Documentation
Product Specification Sheet
Review the specification sheet for dimensional and product-specific information on the 3000# socket weld cross.
Pipe Size Chart
Use the common pipe diameters and wall thickness chart to help confirm compatible pipe sizing before ordering.
Certificate of Conformance
Certificate of Conformance documentation is available through the linked PDF.
Frequently Asked Questions
What is a 3000# forged steel socket weld cross?
It is a forged steel fitting with four socket weld openings designed to create a straight-through run with two opposing branch connections.
How many connections does a socket weld cross have?
A cross has four connection openings.
How is a cross different from a tee?
A cross provides four connection points with two opposing branches, while a tee provides three connection points with one branch.
What type of connections does this fitting use?
This fitting uses socket weld connections at all four openings.
What material standard applies?
The supplied product information states that forged steel fitting material conforms to ASME SA105N.
Is the material normalized?
Yes. The supplied product information specifies normalized forged steel material.
What dimensional standard applies?
Forged steel fitting dimensions conform to ASME B16.11.
What standard applies to socket weld inserts?
Forged steel socket weld inserts conform to MSS-SP-79.
What standards apply to forged steel unions and outlet fittings?
Forged steel unions conform to MSS-SP-83, while forged steel outlet fittings conform to MSS-SP-97.
Is the manufacturing facility ISO certified?
Yes. The supplied product information states that the manufacturing facility is ISO certified.
What should I verify before ordering?
Confirm the nominal pipe size, 3000# class, four-way socket weld configuration, material requirements, and applicable piping-system specifications before ordering.
Important Ordering & Installation Notes
- Confirm the required nominal pipe size before ordering.
- This listing is for a 3000# forged steel socket weld cross.
- Confirm that the four-way connection configuration matches the intended piping layout.
- Forged steel fitting material conforms to ASME SA105N and is normalized.
- Forged steel fitting dimensions conform to ASME B16.11.
- Verify compatibility with all four adjoining pipe connections.
- Confirm applicable pressure, temperature, dimensional, material, and project requirements.
- Use qualified welding procedures and personnel as required by the applicable piping code or project specification.
- Maintain the required socket weld fit-up and expansion gap where applicable.
- Inspect all sockets and adjoining pipe ends before fit-up and welding.
- Review the product specification sheet before installation.
- Certificate of Conformance documentation is available from the link above.
