3000# 316L Stainless Steel Socket Weld Reducing Tee
- SKU:
- S5036RT
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
- Note:
- Sizes read (Ends x Middle)
Description

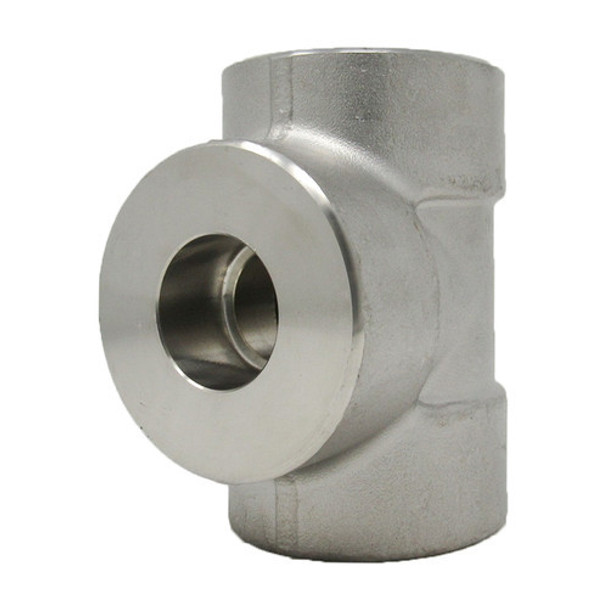

3000# 316L Stainless Steel Socket Weld Reducing Tee
SCI 3000# 316/316L Stainless Steel Socket Weld Reducing Tee Fig. S5036RT provides a forged three-way connection with a reduced branch for compatible stainless steel socket-weld piping.
Designed for commercial and industrial piping systems, the S5036RT combines forged 316/316L stainless steel construction with Class 3000 socket-weld connections for creating a reduced-size 90-degree branch from a larger piping run.
Product Highlights
- SCI Fig. S5036RT
- Class 3000 forged fitting
- 316/316L stainless steel construction
- Reducing tee configuration
- Socket-weld connections
- Designed for reduced-size branch connections
Technical Specifications
| Product Type | Forged Stainless Steel Socket Weld Reducing Tee |
|---|---|
| Brand | SCI / ASC |
| Manufacturer | ASC Engineered Solutions |
| Figure | S5036RT |
| Pressure Class | Class 3000 |
| Material | 316/316L Stainless Steel |
| Material Standard | ASTM A182 Grade F316/316L |
| Construction | Forged |
| Connection | Socket Weld |
| Configuration | Reducing Tee |
| Fitting Standard | ASME B16.11 |
Construction Details
SCI Fig. S5036RT is manufactured from forged 316/316L stainless steel for corrosion resistance and dependable service in compatible Class 3000 socket-weld piping systems.
The reducing tee configuration incorporates socket-weld connections and provides a reduced-size middle branch from the main piping run, allowing a smaller branch line to be incorporated without a separate reducing fitting.
SCI forged 316/316L stainless steel fittings conform to ASTM A182 Grade F316/316L, with socket-weld fitting dimensions conforming to ASME B16.11.
Design & Typical Applications
Socket Weld Reducing Tee Design
- Three-way reducing tee configuration
- Reduced-size middle branch
- Class 3000 fitting design
- Forged 316/316L construction
- Permanent socket-weld connections
Typical Applications
- Industrial process piping
- Commercial piping systems
- Stainless steel process lines
- Reduced-size branch connections
- Corrosion-resistant piping systems
Installation & Selection Considerations
- Confirm the run and branch pipe sizes.
- Verify sizes as ends x middle.
- Confirm Class 3000 requirements.
- Use proper socket-welding procedures.
- Inspect completed welds before service.

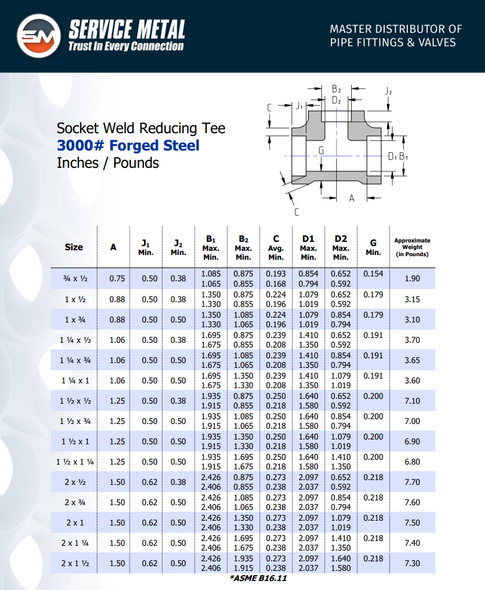

Use the SCI Forged Carbon Steel, Stainless Steel Fittings & Outlets Catalog and Pipe Chart to confirm Fig. S5036RT specifications, Class 3000 socket-weld requirements, reducing tee sizing, and common pipe diameters and wall thicknesses.
Need Help Selecting a 3000# 316L Stainless Steel Socket Weld Reducing Tee?
Need help confirming the run size, reduced middle branch size, Class 3000 requirements, 316/316L material, or socket-weld compatibility? The GetPipe.com Team can help you select the correct SCI forged stainless steel reducing tee.
Frequently Asked Questions
What is the 3000# 316L Stainless Steel Socket Weld Reducing Tee used for?
It is designed to create a reduced-size 90-degree branch from a compatible Class 3000 stainless steel socket-weld piping run.
What figure identifies this SCI socket weld reducing tee?
ASC Engineered Solutions identifies the 316/316L Stainless Steel 3000# Forged Socket Weld Reducing Tee as Fig. S5036RT.
What material is the S5036RT manufactured from?
It is manufactured from forged 316/316L stainless steel conforming to ASTM A182 Grade F316/316L.
How are the reducing tee sizes listed?
Sizes are read as ends x middle, with the middle dimension identifying the reduced branch connection.
What type of connections does the S5036RT use?
The S5036RT uses socket-weld connections for permanent welded installation.
What standard applies to the socket-weld fitting dimensions?
SCI forged stainless steel socket-weld fitting dimensions conform to ASME B16.11.
What does 3000# indicate?
3000# identifies the reducing tee as a Class 3000 forged socket-weld fitting.
What should I confirm before ordering?
Confirm the end size, reduced middle branch size, Class 3000 requirement, 316/316L material requirement, and socket-weld connection type.
Important Ordering & Installation Notes
- Confirm the run and branch sizes.
- Read sizes as ends x middle.
- Verify Class 3000 requirements.
- Confirm 316/316L compatibility.
- Use proper socket-welding procedures.
