3000# 304L Stainless Steel Socket Weld Cross
- SKU:
- S5034X
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description

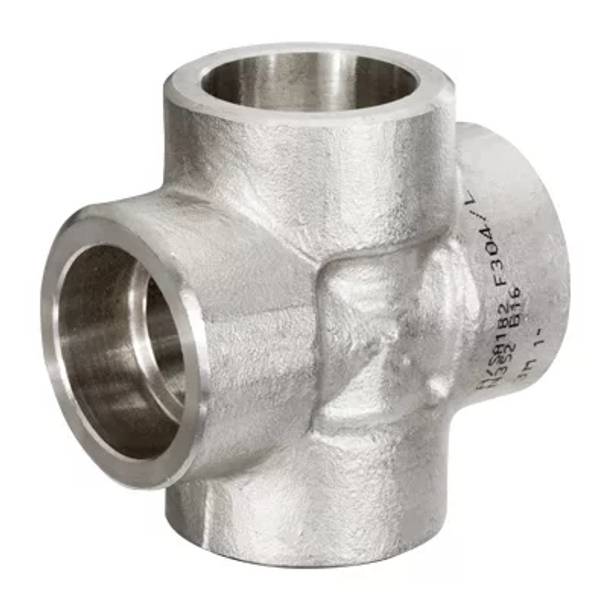

3000# 304L Stainless Steel Socket Weld Cross
SCI 3000# 304/304L Stainless Steel Socket Weld Cross Fig. S5034X provides a four-way connection for branching compatible stainless steel socket-weld piping systems.
Designed for commercial and industrial piping systems, the S5034X combines forged 304/304L stainless steel construction with Class 3000 socket-weld connections for durable, permanent multi-directional piping installations.
Product Highlights
- SCI Fig. S5034X
- Class 3000 forged fitting
- 304/304L stainless steel construction
- Four-way cross configuration
- Socket-weld end connections
- Designed for welded branch connections
Technical Specifications
| Product Type | Forged Stainless Steel Socket Weld Cross |
|---|---|
| Brand | SCI / ASC |
| Manufacturer | ASC Engineered Solutions |
| Figure | S5034X |
| Pressure Class | Class 3000 |
| Material | 304/304L Stainless Steel |
| Material Standard | ASTM A182 Grade F304/304L |
| Construction | Forged |
| Connection | Socket Weld |
| Configuration | Four-Way Cross |
| Fitting Standard | ASME B16.11 |
Construction Details
SCI Fig. S5034X is manufactured from forged 304/304L stainless steel for corrosion resistance and dependable service in compatible Class 3000 socket-weld piping systems.
The four-way cross configuration provides a straight-through run with two opposing 90-degree branches, allowing multiple piping sections to connect at a common intersection.
SCI forged stainless steel fittings conform to ASTM A182 Grade F304/304L, with socket-weld fitting dimensions conforming to ASME B16.11.
Design & Typical Applications
Socket Weld Cross Design
- Four-way piping connection
- Opposing 90-degree branches
- Class 3000 fitting design
- Socket-weld end connections
- Permanent welded installation
Typical Applications
- Industrial process piping
- Commercial piping systems
- Stainless steel process lines
- Multi-branch piping layouts
- Corrosion-resistant piping systems
Installation & Selection Considerations
- Confirm the required nominal pipe size.
- Verify Class 3000 requirements.
- Confirm 304/304L material compatibility.
- Align all connections before welding.
- Inspect completed welds before service.
Use the SCI Forged Carbon Steel, Stainless Steel Fittings & Outlets Catalog and Pipe Chart to confirm Fig. S5034X specifications, Class 3000 socket-weld requirements, material information, and common pipe diameters and wall thicknesses.
Need Help Selecting a 3000# 304L Stainless Steel Socket Weld Cross?
Need help confirming pipe size, Class 3000 requirements, 304/304L material, or four-way socket-weld connection requirements? The GetPipe.com Team can help you select the correct SCI forged stainless steel cross.
Frequently Asked Questions
What is the 3000# 304L Stainless Steel Socket Weld Cross used for?
It is used to connect four compatible piping sections at a common intersection in a Class 3000 stainless steel socket-weld piping system.
What figure identifies this SCI socket weld cross?
SCI identifies the 3000# 304/304L Stainless Steel Socket Weld Cross as Fig. S5034X.
What material is this cross manufactured from?
It is manufactured from forged 304/304L stainless steel conforming to ASTM A182 Grade F304/304L.
What type of connection does this fitting use?
The cross uses socket-weld connections designed for permanent welded installation.
How many piping connections does the cross provide?
The cross provides four socket-weld piping connections at a common intersection.
What standard applies to the socket-weld fitting dimensions?
SCI forged stainless steel socket-weld fitting dimensions conform to ASME B16.11.
What does 3000# indicate?
3000# identifies the fitting as a Class 3000 forged socket-weld fitting.
What should I confirm before ordering?
Confirm the nominal pipe size, Class 3000 requirement, 304/304L material requirement, and four-way socket-weld configuration.
Important Ordering & Installation Notes
- Confirm the nominal pipe size.
- Verify Class 3000 requirements.
- Confirm 304/304L compatibility.
- Align all connections before welding.
- Inspect welds before system operation.
