300# Black Ductile Iron Union Elbow
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
300# Black Ductile Iron Union Elbow
300# black ductile iron union elbows combine a 90-degree change in direction with a separable union connection. This compact fitting allows connected piping or equipment to be disconnected without rotating the adjoining pipe, helping simplify installation, service, and maintenance in demanding threaded piping systems.
Select the required nominal pipe size from the product options above. The selected variation determines the ASC item number, UPC, online selling price, weight, net cost, and other size-specific product information.
Product Highlights
- 300# / Class 300 black ductile iron construction
- 90-degree union elbow configuration
- Female NPT threaded end connections
- Union connection allows disassembly without rotating adjoining pipe
- Compact design combines direction change and serviceable connection
- Threads conform to ASME B1.20.1
- Designed for demanding commercial and industrial threaded piping systems
- ASC Figure 3552
- Available in nominal pipe sizes from 1/2" through 2"

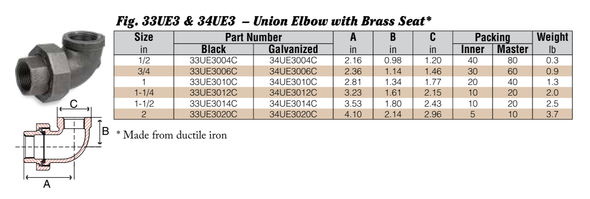

Technical Specifications
| Material | Ductile Iron |
|---|---|
| Pressure Class | 300# / Class 300 |
| Connection | Female NPT x Female NPT |
| Connection Sizes | Equal Nominal Pipe Size |
| Configuration | 90-Degree Union Elbow |
| Thread Standard | ASME B1.20.1 |
| Finish | Black |
| Manufacturer | ASC |
| Figure Number | 3552 |
| Available Sizes | 1/2" through 2" |
How a Union Elbow Works
A union elbow changes the direction of a threaded piping system by 90 degrees while incorporating a union joint. The union nut can be loosened to separate the connection without rotating the attached piping. This makes the fitting useful near valves, pumps, equipment, and other components that may require periodic removal or service.
Common Applications
Commercial and Mechanical Systems
- Mechanical-room piping
- Pump and equipment connections
- Valve assemblies
- Water and utility piping
- Compressed-air systems
- Serviceable threaded connections
Industrial Service
- Industrial process piping
- Oil and petroleum piping
- Compatible gas service
- Approved steam applications
- Maintenance and repair installations
- Systems requiring periodic disassembly
Product Resources
Review the ASC malleable iron threaded fittings catalog before installation.
Need Help Selecting a 300# Black Ductile Iron Union Elbow?
Our industrial PVF specialists can help confirm the required pipe size, pressure class, union configuration, thread type, material compatibility, service conditions, and product availability.
Frequently Asked Questions
What is a 300# black ductile iron union elbow used for?
It changes piping direction by 90 degrees while providing a union connection that can be separated for service or maintenance.
What connections does this union elbow have?
It uses female NPT threaded connections sized for the selected nominal pipe size.
How is a union elbow different from a standard elbow?
A standard elbow changes direction but normally requires the connected piping to be rotated during assembly or removal. A union elbow includes a union nut that allows the connection to be separated without rotating the adjoining pipe.
What pressure class is this fitting?
This fitting is manufactured as a 300# / Class 300 threaded ductile iron fitting.
What sizes are available?
Available product variations range from 1/2" through 2" nominal pipe size.
Should thread sealant be used during installation?
Use an approved pipe-thread sealant or thread tape selected for the piping media, pressure, temperature, applicable codes, and manufacturer recommendations.
Important Ordering Notes
- Select the required nominal pipe size before adding the product to your cart.
- This fitting combines a 90-degree elbow with a separable union connection.
- The selected variation determines the ASC item number, UPC, online selling price, weight, and net cost.
- Confirm the nominal pipe size and thread type of both mating components before ordering.
- Confirm that a union elbow is appropriate for the piping layout and required service access.
- Confirm pressure, temperature, media compatibility, and application requirements before installation.
- Use an approved thread sealant suitable for the piping media and operating conditions.
- Support connected piping properly to avoid excessive mechanical stress on the fitting.
- Installation should be completed by qualified personnel and comply with applicable codes and standards.
