Spears

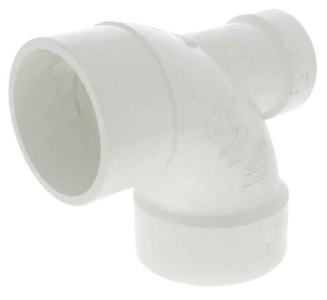

3"x3"x2" PVC DWV 90 Street Elbow w/ 2" Low Heel Inlet (H x S x H)
- SKU:
- P310-338
- Availability:
- Usually Ships Same Day
- Weight:
- 1.12 LBS
Description
3" x 3" x 2" PVC DWV 90 Street Elbow w/ 2" Low Heel Inlet (H x S x H)
3" x 3" x 2" PVC DWV 90 Street Elbow with 2" Low Heel Inlet (H x S x H) combines a 90-degree directional change with an additional 2" low heel inlet for compatible PVC drain, waste, and vent piping systems. The street-style configuration provides a 3" hub connection, a 3" spigot connection, and a 2" hub inlet in one compact fitting.
The Hub x Spigot x Hub (H x S x H) configuration allows the 3" hub to receive compatible PVC DWV pipe while the 3" spigot end connects directly into a compatible hub. The integrated 2" low heel hub provides an additional connection point without requiring a separate branch fitting at the same location.
Product Highlights
- PVC construction
- 90-degree elbow
- 2" low heel inlet
- 3" main connection size
- Hub x spigot x hub design
- Designed for compatible PVC DWV systems
- Combines a directional turn and branch inlet
- Provides a compact 3" x 3" x 2" drainage connection
Technical Specifications
| Product Type | DWV 90 Degree Street Elbow with Low Heel Inlet |
|---|---|
| Material | PVC |
| Nominal Size | 3" x 3" x 2" |
| System Type | Drain, Waste & Vent (DWV) |
| Elbow Angle | 90 Degrees |
| Connection Configuration | Hub x Spigot x Hub (H x S x H) |
| Main Connections | 3" Hub x 3" Spigot |
| Low Heel Inlet | 2" Hub |
| Joining Method | Solvent Weld |
| Primary Function | 90-Degree DWV Directional Change with Additional 2" Heel Inlet |
90-Degree Street Elbow Design
The fitting provides a 90-degree directional change while incorporating a street-style connection into the main 3" run. The 3" hub receives compatible PVC DWV pipe or a properly sized spigot connection, while the 3" spigot end is designed to connect directly into a compatible hub.
This street configuration can provide a compact connection where the piping layout requires both a 90-degree turn and direct fitting-to-fitting assembly.
2" Low Heel Inlet
The integrated 2" low heel inlet provides an additional hub connection near the heel of the elbow. This allows a compatible 2" DWV connection to enter the fitting while the 3" main piping changes direction.
Confirm the position of the heel inlet before installation so the 2" connection is properly oriented with the planned DWV piping arrangement.
Hub x Spigot x Hub Connections
The H x S x H configuration consists of a 3" hub, a 3" spigot, and a 2" hub low heel inlet. The street-style spigot end can connect directly into a compatible hub, while the two hub connections receive properly sized PVC pipe or compatible spigot connections.
Verify all three connections before assembly and properly prepare each compatible PVC solvent-weld surface according to the joining-product instructions.
Compact PVC DWV Configuration
Combining a 90-degree street elbow and 2" low heel inlet in one fitting provides a compact solution for DWV layouts requiring a 3" directional change and an additional 2" connection in the same area.
The integrated configuration can reduce the number of separate fittings needed while helping simplify compatible PVC drain, waste, and vent piping arrangements.
Installation & Selection Considerations
- Confirm the 3" main size.
- Verify the 2" heel inlet.
- Confirm the H x S x H design.
- Use proper PVC solvent-welding procedures.
- Verify fitting orientation with the DWV layout.
Our PVC DWV fitting specialists can help review your 3" main piping, 2" low heel inlet, H x S x H connection requirements, fitting orientation, drainage application, and overall DWV system configuration before you order.
Frequently Asked Questions
What size is this PVC DWV street elbow?
This fitting is 3" x 3" x 2", with 3" main connections and an additional 2" low heel inlet.
What does H x S x H mean?
H x S x H means Hub x Spigot x Hub. This fitting has a 3" hub connection, a 3" spigot connection, and a 2" hub low heel inlet.
What is the purpose of the 2" low heel inlet?
The 2" low heel inlet provides an additional connection near the heel of the elbow while the 3" main DWV piping changes direction.
How is a street elbow different from a standard elbow?
A street elbow incorporates a spigot connection that can fit directly into a compatible hub, allowing a more compact fitting-to-fitting connection in suitable piping layouts.
What connects to the 3" spigot end?
The 3" spigot end is designed to fit into a compatible 3" hub connection and is joined using the appropriate PVC solvent-welding procedure.
Why is the fitting orientation important?
The 90-degree turn and 2" low heel inlet need to align with the intended DWV piping arrangement, so the complete orientation should be checked before solvent welding.
Can this fitting be used for pressure piping?
This fitting is intended for DWV service. For pressure piping, select fittings specifically designed and rated for the required pressure application.
What should I confirm before ordering?
Confirm the 3" x 3" x 2" size, H x S x H configuration, 2" low heel inlet, required fitting orientation, and compatibility with the planned PVC DWV system.
Important Ordering & Installation Notes
- Confirm the 3" main size.
- Verify the 2" inlet size.
- Check the fitting orientation.
- Confirm the H x S x H connections.
- Follow applicable DWV installation requirements.
