Dixon

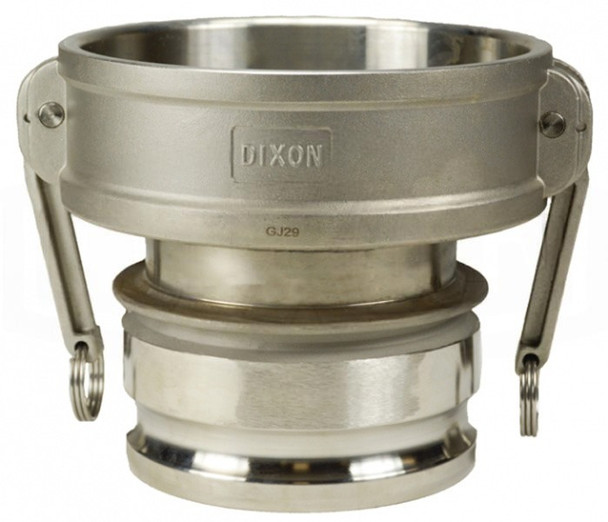

3" x 2" Type DA Stainless Steel Cam & Groove Reducing Coupler x Adapter
- SKU:
- NLDIX3020-DA-SS
- Availability:
- Limited quantity available.
- Weight:
- 4.00 LBS
Description
Dixon 3020-DA-SS 3" x 2" Type DA Stainless Steel Cam & Groove Reducing Coupler x Adapter
The Dixon 3020-DA-SS Type DA Cam & Groove Reducer provides a 3" female cam & groove coupler x 2" male adapter connection for compatible liquid transfer systems requiring a reduction in connection size.
Manufactured from 316 stainless steel, this heavy-duty reducing fitting provides corrosion resistance for demanding industrial fluid handling applications. The 3" female coupler end includes cam arms for quick connection to compatible male adapters, while the included Buna-N nitrile gasket helps provide dependable sealing performance.
Product Highlights
- Dixon model 3020-DA-SS
- Type DA reducing coupler x adapter
- 3" female cam & groove coupler x 2" male adapter
- 316 stainless steel construction
- Buna-N nitrile gasket included
- Maximum operating pressure: 125 PSI
- Overall length: approximately 6-9/32"
- Corrosion-resistant construction
- Cam arms and locking mechanism for quick connection
- Interchangeable with cam & groove fittings produced to A-A-59326D specifications
- Designed for liquid transfer applications
- Not recommended for compressed air or steam service
Technical Specifications
| Brand | Dixon |
|---|---|
| Model | 3020-DA-SS |
| Product Type | Reducing Cam & Groove Coupler x Adapter |
| Cam & Groove Type | Type DA |
| Configuration | Reducing / Jump Size |
| Coupler Connection | 3" Female Cam & Groove |
| Adapter Connection | 2" Male Cam & Groove |
| Material | 316 Stainless Steel |
| Gasket Material | Buna-N Nitrile |
| Maximum Operating Pressure | 125 PSI |
| Overall Length | Approximately 6-9/32" |
| Interchange Standard | A-A-59326D |
| Service | Liquid Transfer |
| Compressed Air Service | Not Recommended |
| Steam Service | Not Recommended |
3" Female Coupler x 2" Male Adapter
The Dixon 3020-DA-SS combines a 3" female cam & groove coupler with a 2" male cam & groove adapter, providing a direct reduction between two different nominal camlock connection sizes.
The 3" female end is equipped with cam arms and a locking mechanism for quick connection to a compatible male adapter.
Type DA Reducing Configuration
The Type DA reducing configuration allows a compatible 3" camlock connection to transition to a 2" cam & groove connection within the same fitting.
This jump-size design is intended for liquid transfer systems where different cam & groove connection sizes must be joined.
316 Stainless Steel Construction
The 3020-DA-SS is manufactured from 316 stainless steel, providing corrosion resistance and durable construction for demanding industrial liquid transfer environments.
Buna-N Nitrile Gasket
A Buna-N nitrile gasket is included with the female coupler connection to help provide a secure, leak-resistant seal during operation.
Verify gasket compatibility with the intended transferred media before installation and use.
125 PSI Maximum Operating Pressure
The supplied product information specifies a maximum operating pressure of 125 PSI for the Dixon 3020-DA-SS.
Operating requirements and the ratings of all connected system components should be verified before placing the fitting into service.
A-A-59326D Interchangeability
The 3020-DA-SS is designed to be interchangeable with standard cam & groove fittings produced to A-A-59326D specifications, supporting integration with compatible camlock components.
Typical Applications
- Industrial liquid transfer
- Cam & groove transfer systems
- 3" to 2" camlock size transitions
- Applications requiring corrosion-resistant 316 stainless steel construction
- Compatible A-A-59326D cam & groove systems
Installation & Service Notes
Before installation, confirm that the system requires a 3" female cam & groove coupler x 2" male cam & groove adapter configuration.
Verify the compatibility of the 316 stainless steel body and Buna-N nitrile gasket with the intended media and operating conditions. The supplied product information states that this fitting is not recommended for compressed air or steam service.
Our specialists can help with Type DA camlock reducers, 3" to 2" connection transitions, gasket compatibility, and matching cam & groove components.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is the Dixon 3020-DA-SS?
The 3020-DA-SS is a 3" x 2" Type DA stainless steel cam & groove reducing coupler x adapter designed for compatible liquid transfer applications.
What are the connection sizes?
The fitting provides a 3" female cam & groove coupler x 2" male cam & groove adapter configuration.
Why is this considered a reducing or jump-size fitting?
It transitions between 3" and 2" cam & groove connection sizes within a single fitting.
What material is the 3020-DA-SS made from?
The fitting is manufactured from 316 stainless steel.
What gasket is included?
The supplied product information identifies an included Buna-N nitrile gasket.
What is the maximum operating pressure?
The Dixon 3020-DA-SS has a supplied maximum operating pressure of 125 PSI.
What is the overall length?
The supplied product information lists an overall length of approximately 6-9/32".
Does the 3020-DA-SS interchange with standard camlock fittings?
The supplied product information states that it is interchangeable with compatible cam & groove fittings produced to A-A-59326D specifications.
Can the 3020-DA-SS be used for compressed air or steam?
No. The supplied product information states that this fitting is not recommended for compressed air or steam service.
Important Ordering & Product Notes
- This listing covers the Dixon 3020-DA-SS 3" x 2" Type DA Stainless Steel Cam & Groove Reducing Coupler x Adapter.
- Connection configuration is 3" female cam & groove coupler x 2" male cam & groove adapter.
- Body construction is 316 stainless steel.
- Includes a Buna-N nitrile gasket.
- Maximum operating pressure is 125 PSI.
- Overall length is approximately 6-9/32".
- Designed for liquid transfer service.
- Interchangeable with compatible fittings produced to A-A-59326D specifications.
- Not recommended for compressed air or steam service.
- Product weight and temperature range were not supplied in the provided product information.
- Verify gasket compatibility, connection requirements, pressure requirements, and operating conditions before installation.
