Dixon
3" Type DC Stainless Steel Cam & Groove Dust Cap
- SKU:
- NLDIX300-DC-SS
- Availability:
- Limited quantity available.
- Weight:
- 2.27 LBS
Description

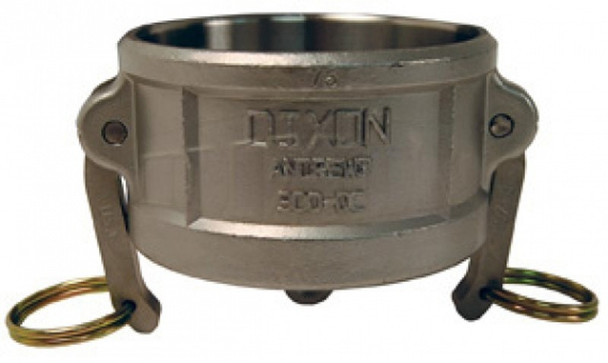

Dixon 3" Type DC Stainless Steel Cam & Groove Dust Cap
The Dixon 3" Type DC Stainless Steel Cam & Groove Dust Cap is designed to protect compatible cam and groove adapters from dirt, dust, moisture, and other contaminants while disconnected from service.
Manufactured from rugged 316 stainless steel, this heavy-duty dust cap provides corrosion resistance and durability for demanding industrial environments. A Buna-N nitrile rubber gasket helps create a secure protective seal, supporting system cleanliness and helping protect camlock components during storage or downtime.
Product Highlights
- 3" Type DC cam & groove dust cap
- Female cam coupler end design
- 316 stainless steel construction
- Buna-N nitrile rubber gasket included
- Helps protect camlock adapters from dirt, dust, moisture, and contaminants
- Corrosion-resistant construction for demanding environments
- Interchanges with A-A-59326D compatible cam & groove fittings
- Heavy-duty construction
- Suitable for protecting disconnected fittings in liquid transfer systems
- Designed for protective dust-cover service only
- Not intended for pressure-containing applications
Technical Specifications
| Brand | Dixon |
|---|---|
| Product Type | Cam & Groove Dust Cap |
| Fitting Type | Type DC |
| Nominal Size | 3" |
| Connection Style | Female Cam & Groove Coupler End |
| Material | 316 Stainless Steel |
| Gasket Material | Buna-N (Nitrile Rubber) |
| Interchange Standard | A-A-59326D |
| Intended Use | Protection of Disconnected Cam & Groove Adapters |
| Pressure Service | Not Intended for Pressure-Containing Applications |
Type DC Dust Cap Design
The Type DC configuration uses a female cam coupler end designed to fit over a compatible male cam and groove adapter. This allows the cap to protect an exposed connection while the system is disconnected from service.
316 Stainless Steel Construction
The dust cap is manufactured from 316 stainless steel for durability and corrosion resistance in demanding industrial environments.
The supplied product information identifies resistance to corrosion, chemicals, weather exposure, and demanding operating conditions as benefits of the stainless steel construction.
Buna-N Protective Gasket
An included Buna-N nitrile rubber gasket helps create a protective seal between the dust cap and mating cam and groove adapter.
The gasket helps keep debris and moisture away from the protected connection during storage or system downtime. Verify gasket compatibility with the operating environment and any residual media before use.
Connection Protection
The Type DC dust cap helps protect exposed camlock adapters against common contaminants, including:
- Dirt
- Dust
- Moisture
- Other environmental contaminants
Keeping disconnected fittings covered helps maintain system cleanliness and protects the connection while it is not in service.
A-A-59326D Interchange
The dust cap is designed to interchange with compatible cam and groove fittings manufactured to Commercial Item Description A-A-59326D specifications.
Typical Applications
- Protecting disconnected cam and groove adapters
- Industrial liquid transfer systems
- Camlock fitting storage and downtime protection
- Applications requiring corrosion-resistant connection protection
Inspection & Service Notes
Inspect the Buna-N gasket regularly and replace worn components as necessary to maintain proper protective sealing performance.
Always verify 316 stainless steel and Buna-N compatibility with the operating environment and transferred media before use.
Non-Pressure Protective Service
This Type DC dust cap is designed for protective dust-cover service only. It is not intended to contain system pressure.
Use the cap to protect a compatible cam and groove adapter while the connection is disconnected and out of service.
Our specialists can help with Type DC dust cap selection, cam and groove compatibility, 316 stainless steel applications, and Buna-N gasket compatibility.
Email the GetPipe.com Team Visit Quick SupportFrequently Asked Questions
What is a Type DC cam and groove fitting?
This Type DC fitting is a dust cap with a female cam coupler end designed to cover and protect a compatible male cam and groove adapter while disconnected from service.
What size is this dust cap?
The supplied product information identifies this as a 3" Type DC cam and groove dust cap.
What material is the dust cap made from?
The dust cap is manufactured from 316 stainless steel.
Does the dust cap include a gasket?
Yes. The supplied product information identifies an included Buna-N nitrile rubber gasket.
What does this dust cap protect against?
It is designed to help protect compatible cam and groove adapters from dirt, dust, moisture, and other contaminants while the connection is out of service.
Does this dust cap interchange with standard camlock fittings?
The supplied product information states that it interchanges with compatible cam and groove fittings manufactured to A-A-59326D specifications.
Is this dust cap designed for liquid transfer systems?
It is suitable for protecting disconnected fittings in liquid transfer systems. The cap itself is intended for protective service while the connection is not in use.
Can this Type DC dust cap be used under pressure?
No. The supplied product information states that it is designed for protective dust-cover service only and is not intended for pressure-containing applications.
Should the gasket be inspected?
Yes. The supplied product information recommends inspecting the gasket regularly and replacing worn components as necessary to maintain proper sealing performance.
Important Ordering & Product Notes
- This listing covers the Dixon 3" Type DC Stainless Steel Cam & Groove Dust Cap.
- Fitting type is Type DC.
- Nominal camlock size is 3".
- The Type DC cap uses a female cam coupler end design.
- Cap material is 316 stainless steel.
- A Buna-N nitrile rubber gasket is included.
- Designed to help protect compatible camlock adapters from dirt, dust, moisture, and other contaminants.
- Designed to interchange with compatible cam and groove fittings manufactured to A-A-59326D specifications.
- The specific manufacturer part number, product dimensions, and product weight were not supplied in the provided product information.
- Verify material and gasket compatibility with the operating environment and any transferred or residual media.
- Inspect the gasket regularly and replace worn components as necessary.
- Designed for protective dust-cover service only and not intended for pressure-containing applications.
