Charman Inc.

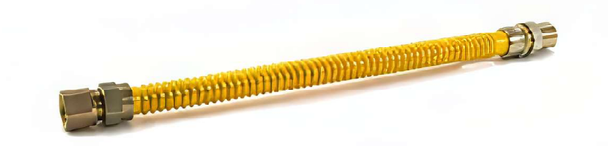

3/8" OD Yellow Coated Gas Connector - 3/8" FIP x 1/2" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
3/8" OD Yellow Coated Gas Connector - 3/8" FIP x 1/2" FIP
Charman Inc 3/8" OD Yellow Coated Gas Connectors provide a flexible connection for compatible gas-fired appliances and equipment. This configuration features a 3/8" FIP connection on one end and a 1/2" FIP connection on the other and is available in lengths from 12" through 72".
The flexible corrugated connector construction helps accommodate routing between fixed gas piping and compatible equipment where rigid-pipe alignment may be impractical. Female threaded connections at both ends provide a convenient transition between compatible 3/8" and 1/2" male threaded connection points.
Product Highlights
- Charman Inc yellow coated gas connector
- 3/8" outside diameter
- 3/8" FIP x 1/2" FIP connection configuration
- Female threaded connections on both ends
- Different nominal connection sizes for transition applications
- Flexible corrugated connector construction
- Yellow exterior coating
- Available in lengths from 12" through 72"
- Multiple lengths for different installation layouts
- Designed for compatible gas appliance and equipment connections
Technical Specifications
| Product Type | Yellow Coated Gas Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-38-C5 |
| Connector OD | 3/8" |
| Connection 1 | 3/8" FIP |
| Connection 2 | 1/2" FIP |
| Connection Configuration | 3/8" Female Iron Pipe x 1/2" Female Iron Pipe |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections |
Understanding the Connection Configuration
This connector has a 3/8" FIP connection on one end and a 1/2" FIP connection on the other. FIP identifies a female threaded pipe connection, so the 3/8" end connects to a compatible 3/8" male threaded connection while the 1/2" end connects to a compatible 1/2" male threaded connection.
Because the two ends use different nominal pipe sizes, this configuration is useful where the gas supply and connected appliance or equipment do not use the same connection size.
Why Choose a Yellow Coated Gas Connector?
Flexible Installation
- Accommodates practical routing between fixed connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between gas piping and connected equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Female x Female Transition
- 3/8" FIP connection on one end
- 1/2" FIP connection on the opposite end
- Female threaded connections at both ends
- Connects between compatible male threaded connection points
- Provides two different nominal pipe connection sizes
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Available lengths range from 12" through 72". Avoid excessive slack, sharp bends, kinks, twisting, crushing, or other conditions that could damage the connector.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement gas connector applications
- Maintenance projects
- Equipment connection updates
- Applications requiring different female connection sizes at each end
Available Connector Lengths
The 800-38-C5 connector family is available in eight lengths while maintaining the same 3/8" OD and 3/8" FIP x 1/2" FIP connection configuration.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Female x Female Transition Connection
The 3/8" FIP x 1/2" FIP configuration provides female threaded connections at both ends while changing nominal connection size. This configuration is intended for installations where one mating component provides a compatible 3/8" male threaded connection and the other provides a compatible 1/2" male threaded connection.
Confirm the connection size required at each end before ordering.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector diameters, connection configurations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 3/8" OD gas connector is appropriate for the intended installation.
- Confirm that one required connection is 3/8" FIP and the other is 1/2" FIP.
- Verify that the 3/8" FIP end mates with a compatible 3/8" male threaded connection.
- Verify that the 1/2" FIP end mates with a compatible 1/2" male threaded connection.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector, coating, and end fittings before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system.
- Leak-test completed gas connections before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection Type
This family is configured with a 3/8" FIP connection on one end and a 1/2" FIP connection on the other. Confirm both mating connection sizes before ordering.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, connection requirements, required length, equipment, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 3/8" outside diameter with a 3/8" FIP connection on one end and a 1/2" FIP connection on the other.
What connections does this connector have?
It has a 3/8" FIP female threaded connection on one end and a 1/2" FIP female threaded connection on the other.
What lengths are available?
This listing includes 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
What does FIP mean?
FIP identifies a female threaded pipe connection. Both ends of this connector are female threaded, with one end sized 3/8" and the other sized 1/2".
Are both threaded ends the same size?
No. One end is 3/8" FIP and the other is 1/2" FIP.
What mating connections are required?
The 3/8" FIP end requires a compatible 3/8" male threaded connection, and the 1/2" FIP end requires a compatible 1/2" male threaded connection.
How do I choose the correct connector length?
Measure the required connection distance and planned routing, then select a length that allows proper installation without stretching, kinking, twisting, or excessive slack.
Can the connector be sharply bent?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Where can I find other gas connector configurations?
Use the Charman Inc Yellow Coated Gas Connector catalog linked in the Willy section to compare other connector diameters, connection styles, and lengths.
Important Ordering Notes
- This listing is for Charman Inc 3/8" OD yellow coated gas connectors.
- Connection configuration is 3/8" FIP x 1/2" FIP.
- Both connector ends are female threaded connections.
- The threaded ends use different nominal pipe sizes.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm the required connection size at each end before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
