Leviton
20A Single-Pole Pilot Light Toggle Switch
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.25 LBS
Description
Switches / Lighting Control
20A Single-Pole Pilot Light Toggle Switch
Listed options include pilot-light and standard switches with different voltage ratings. Confirm the indicator type and rating for the selected manufacturer part number.

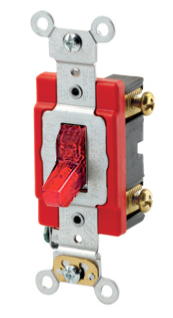

Product model shown
Product Features
- Device Type: Toggle Switch
- Switch Function: Single-Pole
- Grade: Extra Heavy-Duty Industrial Specification Grade
- Grounding: Self-Grounding
- Termination: Back or Side Wire
- Amperage: 20 A
- Pilot Light on Red, Clear options
- Standard / No Pilot Light on Ebony, White, Ivory, Brown, Gray options
- 120 VAC rating for Red, Clear options
- 120/277 VAC rating for Ebony, White, Ivory, Brown, Gray options
- Match the switch function to the circuit arrangement
- Verify the listed amperage and voltage for the load
- Use the termination method specified for the model
- Confirm the device and wall plate opening match
Available Models
Select the listed option and confirm its manufacturer part number.
| Option | Manufacturer SKU |
|---|---|
| Red / Pilot Light / 120 VAC | 1221-PLR |
| Ebony / Standard / No Pilot Light / 120/277 VAC | 1221-2E |
| White / Standard / No Pilot Light / 120/277 VAC | 1221-2W |
| Ivory / Standard / No Pilot Light / 120/277 VAC | 1221-2I |
| Brown / Standard / No Pilot Light / 120/277 VAC | 1221-2 |
| Gray / Standard / No Pilot Light / 120/277 VAC | 1221-2GY |
| Clear / Pilot Light / 120 VAC | 1221-PLC |
Technical Specifications
| Manufacturer | Leviton |
|---|---|
| Device Type | Toggle Switch |
| Grade | Extra Heavy-Duty Industrial Specification Grade |
| Grounding | Self-Grounding |
| Amperage | 20 A |
| Switch Function | Single-Pole |
Use the switch function and device arrangement to identify the correct replacement. A single-pole, 3-way or combination switch must match the way the circuit is controlled.
Compare the listed circuit ratings and termination method with the installation. For combination devices, check every controlled circuit and the required wall plate opening.
- Match the switch function to the circuit arrangement
- Verify the listed amperage and voltage for the load
- Use the termination method specified for the model
- Confirm the device and wall plate opening match
This listing identifies amperage as 20 A. Use the selected manufacturer part number to confirm the exact model before ordering.
Select the switch function named in this listing for the circuit arrangement. The number of control locations and the device combination determine which switch configuration is appropriate.
Confirm the toggle or Decora opening and any combination-device arrangement before ordering. Match the wall plate to the switch face and the number of devices in the box.
The listed model specifies device type: Toggle Switch; grounding: Self-Grounding.
Additional model details include termination: Back or Side Wire; model differences: indicator varies by option, voltage varies by option.
Product Questions
How do I choose the correct model?
Select the option shown in the model table and confirm its manufacturer part number. Compare the listed specifications with the device or installation being replaced.
What should I check for switch function?
Select the switch function named in this listing for the circuit arrangement. The number of control locations and the device combination determine which switch configuration is appropriate.
What installation details should I confirm?
Compare the listed circuit ratings and termination method with the installation. For combination devices, check every controlled circuit and the required wall plate opening.
