Dixon

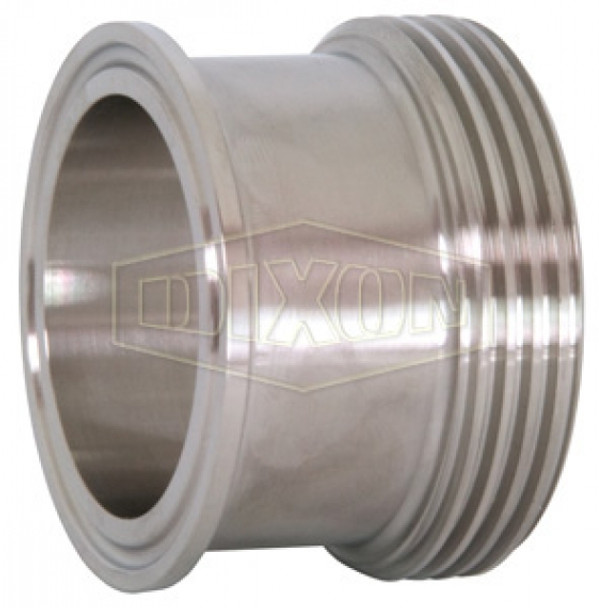

17MP-15-G150 - Clamp x Threaded Bevel Seat Adapter
- SKU:
- 17MP-15-G150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.38 LBS
Description
Dixon Clamp x Threaded Bevel Seat Adapter - 17MP-15-G150
Dixon 17MP-15-G150 Clamp x Threaded Bevel Seat Adapter is a 1-1/2 in tube OD sanitary adapter manufactured from 304 stainless steel. It transitions between a sanitary clamp connection and a threaded bevel seat connection for compatible hygienic processing systems.
The 17MP-15-G150 is part of Dixon's 17MP-15 clamp x threaded bevel seat adapter family. Proper selection should account for tube OD, adapter length, stainless steel material, clamp compatibility, threaded bevel seat compatibility, and the requirements of the complete sanitary processing system.
Product Highlights
- 1-1/2 in tube OD
- 1.84 in A dimension
- 304 stainless steel
- 17MP-15 sanitary adapter configuration
- Clamp x threaded bevel seat design
- Connects compatible sanitary connection styles
- Designed for compatible hygienic processing systems
- Suitable for food, beverage, pharmaceutical, and sanitary processing applications
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 17MP-15-G150 |
| Product Type | Clamp x Threaded Bevel Seat Adapter |
| Series | 17MP-15 |
| Tube OD | 1-1/2 in |
| Material | 304 Stainless Steel |
| Dimension A | 1.84 in |
| Connection Style | Clamp x Threaded Bevel Seat |
Clamp x Threaded Bevel Seat Adapter Design
The Dixon 17MP-15-G150 combines a sanitary clamp connection with a threaded bevel seat connection to transition between compatible sanitary components. This configuration allows the adapter to connect two different connection styles while remaining suitable for hygienic fluid-handling applications.
The clamp end provides a removable sanitary connection, while the threaded bevel seat end mates with compatible bevel seat equipment. Both connection styles should be confirmed before installation to ensure the adapter matches the required piping or processing arrangement.
304 Stainless Steel Construction
The 17MP-15-G150 is manufactured from 304 stainless steel for use in compatible sanitary and hygienic processing environments. The stainless construction provides a durable fitting body for applications where cleanliness, corrosion resistance, and repeated cleaning are important considerations.
Material compatibility should be reviewed against the process media, cleaning chemicals, operating conditions, and surrounding equipment. Confirm that 304 stainless steel meets the requirements of the complete sanitary system before the adapter is placed into service.
1-1/2 in Clamp x Threaded Bevel Seat Configuration
The Dixon 17MP-15-G150 is sized for a 1-1/2 in tube OD and has a 1.84 in A dimension. These dimensions help identify the correct adapter when matching it with existing sanitary tubing, fittings, and related processing equipment.
The tube OD and adapter length should be confirmed before ordering because nearby equipment and mating components may limit available installation space. Verify both connection styles and the required dimensions so the adapter fits the intended sanitary assembly correctly.
Sanitary & Hygienic Processing Applications
The Dixon 17MP-15-G150 provides a transition between compatible sanitary clamp and threaded bevel seat connections for food, beverage, pharmaceutical, and other hygienic processing applications. Its configuration allows it to be incorporated into systems that use multiple sanitary connection styles.
Final system suitability depends on the mating fittings, gaskets, clamp components, threaded bevel seat components, process media, cleaning procedures, operating conditions, and material compatibility of the complete system. All components should be reviewed together before installation.
Installation & Selection Considerations
- Verify part number 17MP-15-G150.
- Confirm the required 1-1/2 in tube OD.
- Verify the 1.84 in A dimension.
- Confirm clamp and bevel seat compatibility.
- Verify 304 stainless steel is suitable for the application.
Our fitting specialists can help review your Dixon part number, tube OD, adapter dimension, 304 stainless steel construction, clamp compatibility, threaded bevel seat connection, mating components, and application requirements before you order.
Frequently Asked Questions
What is the Dixon 17MP-15-G150?
The 17MP-15-G150 is a Dixon clamp x threaded bevel seat adapter manufactured from 304 stainless steel for a 1-1/2 in tube OD configuration.
What tube OD is the Dixon 17MP-15-G150?
The Dixon 17MP-15-G150 has a 1-1/2 in tube OD configuration.
What material is the 17MP-15-G150 made from?
The Dixon 17MP-15-G150 is manufactured from 304 stainless steel.
What is the A dimension?
The Dixon 17MP-15-G150 has a 1.84 in A dimension.
What connections does the 17MP-15-G150 use?
The 17MP-15-G150 transitions between a compatible sanitary clamp connection and a threaded bevel seat connection.
What should I confirm before ordering?
Confirm part number 17MP-15-G150, the required 1-1/2 in tube OD, 1.84 in A dimension, 304 stainless steel construction, and compatibility with the mating clamp and threaded bevel seat components.
Important Ordering & Installation Notes
- Confirm part number 17MP-15-G150.
- Verify the required 1-1/2 in tube OD.
- Confirm the 1.84 in A dimension.
- Verify clamp and bevel seat compatibility.
- Confirm 304 stainless steel is suitable for the application.
