Dixon
17MP-14-G300 - Clamp x Plain Bevel Seat Adapter with Hex Nut
- SKU:
- 17MP-14-G300
- Availability:
- Usually Ships Same Day
- Weight:
- 2.00 LBS
Description

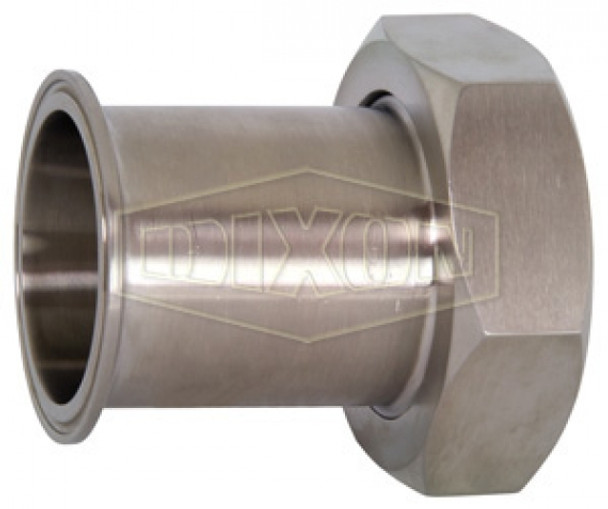

Dixon Clamp x Plain Bevel Seat Adapter with Hex Nut - 17MP-14-G300
Dixon 17MP-14-G300 Clamp x Plain Bevel Seat Adapter with Hex Nut is a 3 in tube OD sanitary adapter manufactured from 304 stainless steel. It transitions between a sanitary clamp connection and a plain bevel seat connection with hex nut for compatible hygienic processing systems.
The 17MP-14-G300 is part of Dixon's 17MP-14 clamp x plain bevel seat adapter family. Proper selection should account for tube OD, adapter length, stainless steel material, clamp compatibility, bevel seat compatibility, and the requirements of the complete sanitary processing system.
Product Highlights
- 3 in tube OD
- 3.75 in A dimension
- 304 stainless steel
- Includes hex nut configuration
- Clamp x plain bevel seat design
- 17MP-14 sanitary adapter configuration
- Connects compatible clamp and bevel seat components
- Suitable for food, beverage, pharmaceutical, and hygienic processing systems
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 17MP-14-G300 |
| Product Type | Clamp x Plain Bevel Seat Adapter with Hex Nut |
| Series | 17MP-14 |
| Tube OD | 3 in |
| Material | 304 Stainless Steel |
| Dimension A | 3.75 in |
| Connection Style | Clamp x Plain Bevel Seat with Hex Nut |
Clamp x Plain Bevel Seat Adapter Design
The Dixon 17MP-14-G300 combines a sanitary clamp connection with a plain bevel seat connection and hex nut. This configuration provides a transition between compatible sanitary connection styles within hygienic fluid-handling systems.
The adapter should be matched with the appropriate mating components. Confirm the clamp connection, plain bevel seat connection, hex nut configuration, tube OD, and required adapter dimension before installation.
304 Stainless Steel Construction
The 17MP-14-G300 is manufactured from 304 stainless steel for use in compatible sanitary and hygienic processing applications.
Material suitability should be evaluated against the process media, cleaning procedures, operating environment, and requirements of the complete processing system.
3 in Clamp x Plain Bevel Seat Configuration
This 17MP-14-G300 configuration has a 3 in tube OD and a 3.75 in A dimension. These specifications should be confirmed when matching the adapter to existing sanitary processing equipment.
Confirm the 3 in tube OD, 3.75 in A dimension, 304 stainless steel construction, hex nut configuration, and compatibility of both mating connection styles before ordering.
Sanitary & Hygienic Processing Applications
The Dixon 17MP-14-G300 provides a transition between compatible sanitary clamp and plain bevel seat connections for food, beverage, pharmaceutical, and other hygienic processing applications.
Final system suitability depends on the mating fittings, gaskets, clamp components, bevel seat components, process media, cleaning procedures, operating conditions, and material compatibility of the complete system.
Installation & Selection Considerations
- Verify part number 17MP-14-G300.
- Confirm the required 3 in tube OD.
- Verify the 3.75 in A dimension.
- Confirm clamp and bevel seat mating compatibility.
- Verify 304 stainless steel is suitable for the application.
Our fitting specialists can help review your Dixon part number, tube OD, adapter dimension, 304 stainless steel construction, clamp compatibility, plain bevel seat connection, hex nut configuration, mating components, and application requirements before you order.
Frequently Asked Questions
What is the Dixon 17MP-14-G300?
The 17MP-14-G300 is a Dixon clamp x plain bevel seat adapter with hex nut manufactured from 304 stainless steel for a 3 in tube OD configuration.
What tube OD is the Dixon 17MP-14-G300?
The Dixon 17MP-14-G300 has a 3 in tube OD configuration.
What material is the 17MP-14-G300 made from?
The Dixon 17MP-14-G300 is manufactured from 304 stainless steel.
What is the A dimension?
The Dixon 17MP-14-G300 has a 3.75 in A dimension.
What connections does the 17MP-14-G300 use?
The 17MP-14-G300 transitions between a compatible sanitary clamp connection and a plain bevel seat connection with hex nut.
What should I confirm before ordering?
Confirm part number 17MP-14-G300, the required 3 in tube OD, 3.75 in A dimension, 304 stainless steel construction, hex nut configuration, and compatibility with the mating clamp and bevel seat components.
Important Ordering & Installation Notes
- Confirm part number 17MP-14-G300.
- Verify the required 3 in tube OD.
- Confirm the 3.75 in A dimension.
- Verify clamp and bevel seat mating compatibility.
- Confirm 304 stainless steel is suitable for the application.
