Dixon
16AQ-G300 - Q-Line Solid End Cap
- SKU:
- 16AQ-G300
- Availability:
- Usually Ships Same Day
- Weight:
- 4.00 LBS
Description

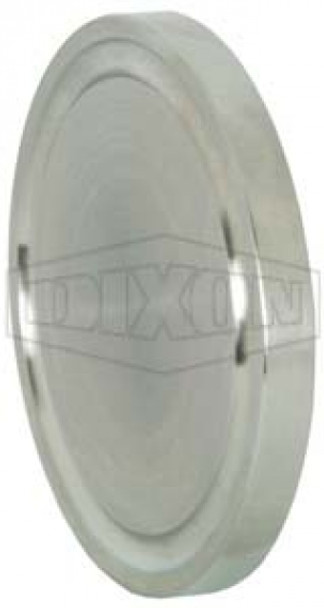

Dixon Q-Line Solid End Cap - 16AQ-G300
Dixon 16AQ-G300 Q-Line Solid End Cap is a 3 in size end cap manufactured from 304 stainless steel. Its Q-Line design provides a solid closure for compatible sanitary and hygienic processing connections.
The 16AQ-G300 is part of Dixon's 16AQ Q-Line solid end cap family. Proper selection should account for fitting size, end cap dimensions, stainless steel material, mating Q-Line components, and the requirements of the complete sanitary processing system.
Product Highlights
- 3 in size
- 0.26 in A dimension
- 304 stainless steel
- Solid end cap construction
- Q-Line connection design
- 16AQ end cap configuration
- Designed for compatible Q-Line fittings
- Suitable for sanitary and hygienic processing systems
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 16AQ-G300 |
| Product Type | Q-Line Solid End Cap |
| Series | 16AQ |
| Size | 3 in |
| Material | 304 Stainless Steel |
| Dimension A | 0.26 in |
| Connection Style | Q-Line |
Q-Line Solid End Cap Design
The Dixon 16AQ-G300 features a Q-Line configuration designed for use with compatible Q-Line sanitary fitting components. Its solid end cap construction provides a closure point within an appropriate Q-Line connection.
Q-Line systems depend on correctly matched mating components, so fitting size, connection style, and associated hardware should be confirmed before installation.
304 Stainless Steel Construction
The 16AQ-G300 is manufactured from 304 stainless steel. This material provides a durable fitting option for compatible sanitary and hygienic processing applications where 304 stainless steel is specified.
Material suitability should be evaluated against the process media, cleaning procedures, operating environment, and requirements of the complete processing system.
3 in Q-Line Configuration
This 16AQ-G300 configuration is the 3 in size and has a 0.26 in A dimension. The solid end cap is designed to close a compatible Q-Line connection rather than provide a through-flow path.
Confirm the 3 in fitting size, 0.26 in A dimension, 304 stainless steel construction, and compatibility with the mating Q-Line components before ordering.
Sanitary & Hygienic Processing Applications
The Dixon 16AQ-G300 is designed for compatible sanitary and hygienic processing systems using Q-Line fitting connections, including food, beverage, and pharmaceutical processing applications.
Final system suitability depends on the mating components, process media, cleaning procedures, operating conditions, installation requirements, and material compatibility of the complete system.
Installation & Selection Considerations
- Verify part number 16AQ-G300.
- Confirm the required 3 in size.
- Verify the 0.26 in A dimension.
- Confirm compatibility with mating Q-Line components.
- Verify 304 stainless steel is suitable for the application.
Our fitting specialists can help review your Dixon part number, fitting size, end cap dimensions, 304 stainless steel construction, Q-Line compatibility, mating components, and application requirements before you order.
Frequently Asked Questions
What is the Dixon 16AQ-G300?
The 16AQ-G300 is a Dixon Q-Line solid end cap in the 3 in size, manufactured from 304 stainless steel.
What size is the Dixon 16AQ-G300?
The Dixon 16AQ-G300 is the 3 in size.
What material is the 16AQ-G300 made from?
The Dixon 16AQ-G300 is manufactured from 304 stainless steel.
What is the A dimension?
The Dixon 16AQ-G300 has an A dimension of 0.26 in.
What type of connection does the 16AQ-G300 use?
The 16AQ-G300 is a Q-Line solid end cap designed for use with compatible Q-Line sanitary fitting components.
What should I confirm before ordering?
Confirm part number 16AQ-G300, the required 3 in size, 0.26 in A dimension, 304 stainless steel construction, and compatibility with the mating Q-Line components.
Important Ordering & Installation Notes
- Confirm part number 16AQ-G300.
- Verify the required 3 in size.
- Confirm the 0.26 in A dimension.
- Verify Q-Line mating component compatibility.
- Confirm 304 stainless steel is suitable for the application.
