Dixon
15-G300 - Recessed Threaded Bevel Seat Ferrule
- SKU:
- 15-G300
- Availability:
- Usually Ships Same Day
- Weight:
- 0.76 LBS
Description

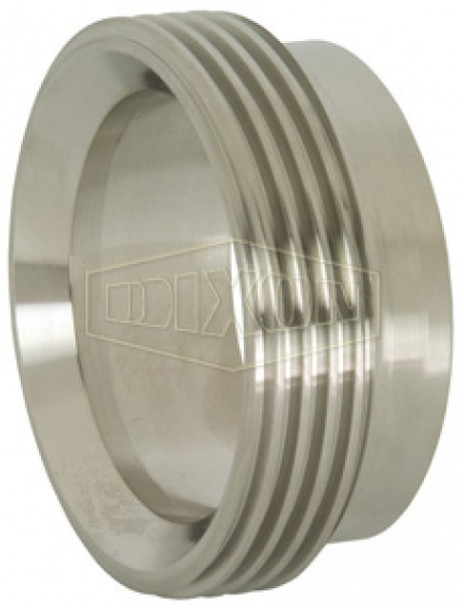

Dixon Recessed Threaded Bevel Seat Ferrule - 15-G300
Dixon 15-G300 Recessed Threaded Bevel Seat Ferrule features a 3 in Tube O.D. and 304 stainless steel construction. Its recessed threaded configuration provides a connection point for compatible Dixon bevel seat sanitary and hygienic processing systems.
The 15-G300 is part of Dixon's Series 15 recessed threaded bevel seat ferrule family. Proper selection should account for tube O.D., ferrule dimensions, stainless steel material, threaded bevel seat compatibility, and the requirements of the complete sanitary fitting assembly.
Product Highlights
- 3 in Tube O.D.
- 1.25 in A dimension
- 3.01 in B dimension
- 304 stainless steel
- Series 15 configuration
- Threaded bevel seat connection
- Recessed sanitary ferrule design
- Designed for compatible hygienic systems
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 15-G300 |
| Product Type | Recessed Threaded Bevel Seat Ferrule |
| Series | 15 |
| Tube O.D. | 3 in |
| Material | 304 Stainless Steel |
| Dimension A | 1.25 in |
| Dimension B | 3.01 in |
Recessed Threaded Bevel Seat Design
The Dixon 15-G300 uses a recessed threaded bevel seat ferrule configuration. The design provides a threaded connection point for compatible bevel seat components used in sanitary and hygienic processing systems.
Proper assembly depends on matching the ferrule with the correct bevel seat components and confirming the required tube size and connection dimensions before installation.
304 Stainless Steel Construction
The 15-G300 is manufactured from 304 stainless steel. This material provides a durable fitting option for compatible sanitary processing applications where 304 stainless steel is specified.
Material suitability should be evaluated against the process media, cleaning procedures, operating environment, fabrication method, and requirements of the complete processing system.
3 in Recessed Threaded Ferrule Configuration
This 15-G300 configuration is sized for 3 in Tube O.D. Dixon's current hygienic fittings catalog lists Dimension A as 1.25 in and Dimension B as 3.01 in.
Confirm the required tube size, threaded bevel seat connection, mating components, dimensional requirements, and fabrication method before ordering or installation.
Sanitary & Hygienic Processing Applications
The Dixon 15-G300 is designed for compatible sanitary and hygienic systems requiring a recessed threaded bevel seat ferrule connection.
Final system suitability depends on the mating bevel seat components, process media, cleaning procedures, fabrication requirements, operating conditions, and installation practices.
Installation & Selection Considerations
- Verify part number 15-G300.
- Confirm the required 3 in Tube O.D.
- Verify the required ferrule dimensions.
- Confirm compatibility with mating bevel seat components.
- Use appropriate sanitary fabrication and installation procedures.
Our fitting specialists can help review your Dixon part number, tube O.D., ferrule dimensions, 304 stainless steel construction, bevel seat fitting compatibility, mating components, and installation requirements before you order.
Frequently Asked Questions
What is the Dixon 15-G300?
The 15-G300 is a Dixon Series 15 recessed threaded bevel seat ferrule with a 3 in Tube O.D. and 304 stainless steel construction.
What tube size is the Dixon 15-G300?
The Dixon 15-G300 is the 3 in Tube O.D. configuration in Dixon's Series 15 recessed threaded bevel seat ferrule family.
What material is the 15-G300 made from?
The Dixon 15-G300 is manufactured from 304 stainless steel.
What are the A and B dimensions?
Dixon's current hygienic fittings catalog lists Dimension A as 1.25 in and Dimension B as 3.01 in for the 15-G300.
What type of ferrule is the 15-G300?
The 15-G300 is a recessed threaded bevel seat ferrule designed for use with compatible Dixon bevel seat sanitary fitting components.
What should I confirm before ordering?
Confirm part number 15-G300, the required 3 in Tube O.D., 304 stainless steel construction, ferrule dimensions, and compatibility with the required bevel seat fitting components.
Important Ordering & Installation Notes
- Confirm part number 15-G300.
- Verify the required 3 in Tube O.D.
- Confirm 304 stainless steel is suitable.
- Verify threaded bevel seat component compatibility.
- Follow appropriate sanitary fabrication and installation procedures.
