Dixon
14WLI-G150 - Male I-Line Long Weld Ferrule
- SKU:
- 14WLI-G150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.26 LBS
Description

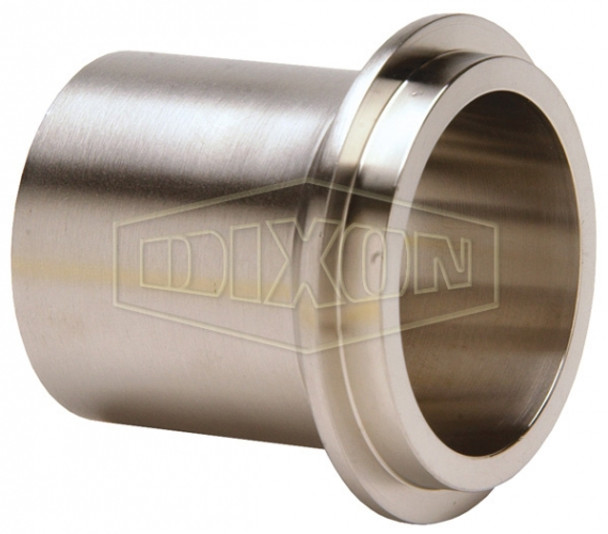

Dixon Male I-Line Long Weld Ferrule - 14WLI-G150
Dixon 14WLI-G150 Male I-Line Long Weld Ferrule features a 1-1/2 in Tube O.D. and 304 stainless steel construction. Its long weld ferrule configuration provides a male I-Line connection for compatible sanitary and hygienic processing systems.
The 14WLI-G150 is part of Dixon's 14WLI Male I-Line Long Weld Ferrule family. Proper selection should account for tube O.D., ferrule dimensions, nominal wall thickness, stainless steel material, welding requirements, and compatibility with the complete I-Line fitting assembly.
Product Highlights
- 0.20 in B dimension
- 0.065 in nominal wall
- 1.50 in C dimension
- 1-1/2 in Tube O.D.
- 2.04 in A dimension
- 304 stainless steel
- Long weld ferrule design
- Male I-Line ferrule configuration
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 14WLI-G150 |
| Product Type | Male I-Line Long Weld Ferrule |
| Series | 14WLI |
| Tube O.D. | 1-1/2 in |
| Material | 304 Stainless Steel |
| Dimension A | 2.04 in |
| Dimension B | 0.20 in |
| Dimension C | 1.50 in |
| Nominal Wall | 0.065 in |
Male I-Line Long Weld Ferrule Design
The Dixon 14WLI-G150 uses Dixon's male I-Line long weld ferrule configuration. The extended weld-end design provides additional ferrule length for compatible sanitary tube fabrication while maintaining the connection geometry required for mating I-Line components.
The ferrule should be selected according to the required tube size, welding configuration, dimensional requirements, and mating I-Line components used throughout the sanitary processing system.
304 Stainless Steel Construction
The 14WLI-G150 is manufactured from 304 stainless steel. This material provides a durable fitting option for compatible food, beverage, dairy, and other hygienic processing applications.
Material compatibility should be evaluated against the process media, cleaning procedures, operating environment, welding method, and requirements of the complete processing system.
1-1/2 in Long Weld Ferrule Configuration
This 14WLI-G150 configuration is sized for 1-1/2 in Tube O.D. Dixon lists Dimension A as 2.04 in, Dimension B as 0.20 in, Dimension C as 1.50 in, and the nominal wall thickness as 0.065 in.
Confirm the required tube size, installation dimensions, mating I-Line components, and fabrication requirements before ordering or welding.
Sanitary & Hygienic Processing Applications
The Dixon 14WLI-G150 is designed for compatible sanitary and hygienic processing systems using I-Line fittings. The long weld ferrule configuration provides an extended weld end for compatible sanitary tube fabrication and processing equipment installations.
Final system suitability depends on the mating components, process media, cleaning procedures, fabrication method, operating conditions, and installation requirements of the complete system.
Installation & Selection Considerations
- Verify part number 14WLI-G150.
- Confirm the required 1-1/2 in Tube O.D.
- Verify the 0.065 in nominal wall.
- Confirm compatibility with mating I-Line components.
- Use appropriate sanitary tube welding and fabrication procedures.
Our fitting specialists can help review your Dixon part number, tube O.D., ferrule dimensions, nominal wall thickness, 304 stainless steel construction, I-Line compatibility, sanitary processing application, and welding requirements before you order.
Frequently Asked Questions
What is the Dixon 14WLI-G150?
The 14WLI-G150 is a Dixon Male I-Line Long Weld Ferrule with a 1-1/2 in Tube O.D. and 304 stainless steel construction.
What tube size is the Dixon 14WLI-G150?
The Dixon 14WLI-G150 is designed for a 1-1/2 in Tube O.D. configuration.
What material is the 14WLI-G150 made from?
The Dixon 14WLI-G150 is manufactured from 304 stainless steel.
What are the A, B, and C dimensions?
Dixon lists Dimension A as 2.04 in, Dimension B as 0.20 in, and Dimension C as 1.50 in for the 14WLI-G150.
What is the nominal wall thickness?
Dixon lists a nominal wall thickness of 0.065 in for the 14WLI-G150.
What should I confirm before ordering?
Confirm part number 14WLI-G150, the required 1-1/2 in Tube O.D., 304 stainless steel construction, ferrule dimensions, nominal wall thickness, welding requirements, and compatibility with the mating I-Line components.
Important Ordering & Installation Notes
- Confirm part number 14WLI-G150.
- Verify the required 1-1/2 in Tube O.D.
- Confirm 304 stainless steel is suitable.
- Verify mating I-Line fitting compatibility.
- Follow appropriate sanitary welding and fabrication procedures.
