Dixon
14W-G150 - Heavy Wall Tank Plain Bevel Seat Ferrule
- SKU:
- 14W-G150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.61 LBS
Description

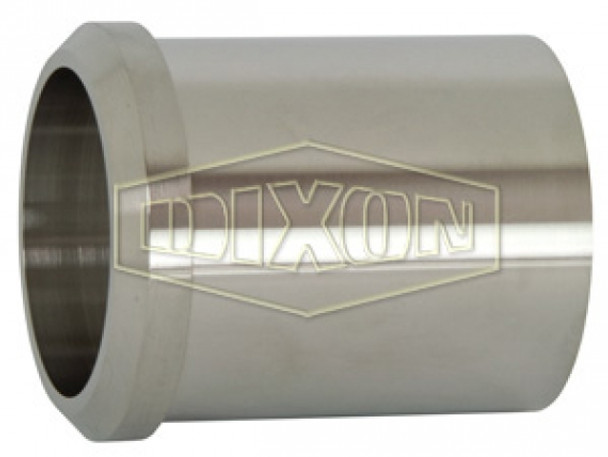

Dixon Heavy Wall Tank Plain Bevel Seat Ferrule - 14W-G150
Dixon 14W-G150 Heavy Wall Tank Plain Bevel Seat Ferrule features a 1-1/2 in size and 304 stainless steel construction. Its heavy-wall tank ferrule configuration provides a durable bevel seat connection for compatible sanitary and hygienic processing systems.
The 14W-G150 is part of Dixon's 14W Heavy Wall Tank Plain Bevel Seat Ferrule family. Proper selection should account for fitting size, ferrule dimensions, stainless steel material, tank fabrication requirements, and compatibility with the complete bevel seat fitting assembly.
Product Highlights
- 1-1/2 in size
- 2.53 in A dimension
- 1.37 in B dimension
- 1.68 in C dimension
- 304 stainless steel
- Heavy-wall tank design
- Dixon 14W ferrule family
- Designed for compatible bevel seat systems
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 14W-G150 |
| Product Type | Heavy Wall Tank Plain Bevel Seat Ferrule |
| Series | 14W |
| Size | 1-1/2 in |
| Material | 304 Stainless Steel |
| Dimension A | 2.53 in |
| Dimension B | 1.37 in |
| Dimension C | 1.68 in |
Heavy Wall Tank Plain Bevel Seat Ferrule Design
The Dixon 14W-G150 uses Dixon's heavy wall tank plain bevel seat ferrule configuration. It is designed for tank fabrication applications requiring a robust ferrule connection and a compatible plain bevel seat interface.
The heavy-wall configuration differs from standard sanitary tube weld ferrules and should be selected according to the tank connection, fabrication requirements, and mating bevel seat components.
304 Stainless Steel Construction
The 14W-G150 is manufactured from 304 stainless steel. This construction provides a durable fitting option for compatible sanitary tanks and hygienic processing equipment.
Material compatibility should be evaluated against the process media, cleaning procedures, operating environment, fabrication method, and requirements of the complete system.
1-1/2 in Heavy Wall Tank Configuration
This 14W-G150 configuration is a 1-1/2 in size. Dixon lists Dimension A as 2.53 in, Dimension B as 1.37 in, and Dimension C as 1.68 in.
Confirm the required size, tank opening and fabrication requirements, mating bevel seat components, and installation dimensions before ordering or welding.
Sanitary Tank & Hygienic Processing Applications
The Dixon 14W-G150 is designed for compatible sanitary tank and hygienic processing installations that use bevel seat fittings. Its heavy-wall construction supports applications where the ferrule becomes part of the fabricated tank connection.
Final system suitability depends on the tank design, mating components, process media, cleaning procedures, fabrication method, and operating conditions of the complete installation.
Installation & Selection Considerations
- Verify part number 14W-G150.
- Confirm the required 1-1/2 in size.
- Verify A, B, and C dimensions.
- Confirm compatibility with mating bevel seat components.
- Use appropriate sanitary tank welding and fabrication procedures.
Our fitting specialists can help review your Dixon part number, fitting size, ferrule dimensions, 304 stainless steel construction, bevel seat compatibility, tank fabrication requirements, sanitary processing application, and welding requirements before you order.
Frequently Asked Questions
What is the Dixon 14W-G150?
The 14W-G150 is a Dixon Heavy Wall Tank Plain Bevel Seat Ferrule in a 1-1/2 in size with 304 stainless steel construction.
What size is the Dixon 14W-G150?
Dixon lists the 14W-G150 as a 1-1/2 in Heavy Wall Tank Plain Bevel Seat Ferrule.
What material is the 14W-G150 made from?
The Dixon 14W-G150 is manufactured from 304 stainless steel.
What are the A, B, and C dimensions?
Dixon lists Dimension A as 2.53 in, Dimension B as 1.37 in, and Dimension C as 1.68 in for the 14W-G150.
What is the 14W-G150 designed for?
It is a heavy wall tank ferrule designed to provide a plain bevel seat connection in compatible sanitary tank and hygienic processing installations.
What should I confirm before ordering?
Confirm part number 14W-G150, the required 1-1/2 in size, 304 stainless steel construction, A, B, and C dimensions, tank fabrication requirements, and compatibility with the mating bevel seat components.
Important Ordering & Installation Notes
- Confirm part number 14W-G150.
- Verify the required 1-1/2 in size.
- Confirm 304 stainless steel is suitable.
- Verify mating bevel seat fitting compatibility.
- Follow appropriate sanitary tank welding and fabrication procedures.
