14MPHT-R400 - Tygon® Hose Clamp Adapter
- SKU:
- 14MPHT-R400
- Availability:
- Usually Ships Same Day
- Weight:
- 1.62 LBS
Description

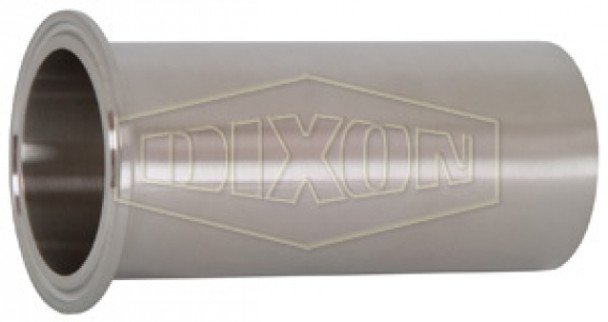

Dixon Tygon® Hose Clamp Adapter - 14MPHT-R400
Dixon 14MPHT-R400 Tygon® Hose Clamp Adapter features a 4 in Tube O.D. connection and 316L stainless steel construction. Designed for compatible Tygon® hose connections, this adapter provides a sanitary transition for food, beverage, pharmaceutical, and other hygienic processing applications.
The 14MPHT-R400 is part of Dixon's 14MPHT Tygon® Hose Adapter family. Proper selection should account for tube O.D., fitting dimensions, Tygon® hose compatibility, band clamp requirements, stainless steel material, and the operating requirements of the complete hygienic system.
Product Highlights
- 4 in Tube O.D.
- 3.83 in B dimension
- 4.00 in C dimension
- 4.63 in A dimension
- 316L stainless steel
- Tygon® hose adapter design
- Dixon 14MPHT adapter family
- Designed for compatible hygienic hose connections
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 14MPHT-R400 |
| Product Type | Tygon® Hose Clamp Adapter |
| Series | 14MPHT |
| Tube O.D. | 4 in |
| Material | 316L Stainless Steel |
| Dimension A | 4.63 in |
| Dimension B | 3.83 in |
| Dimension C | 4.00 in |
Tygon® Hose Clamp Adapter Design
The Dixon 14MPHT-R400 is designed to connect compatible Tygon® hose with a sanitary clamp-style fitting. Dixon specifies that the hose I.D. should be slightly larger than the O.D. of the fitting to allow proper insertion and assembly.
For installation, the fitting is inserted into the hose so the hose remains approximately 1/2 in away from the clamp connection. A compatible band clamp is then used to secure the hose to the adapter.
316L Stainless Steel Construction
The 14MPHT-R400 is manufactured from 316L stainless steel. This material provides durable construction for compatible food, beverage, pharmaceutical, and hygienic processing applications.
Material suitability should be evaluated against the process media, cleaning procedures, hose material, environmental conditions, and operating requirements of the complete system.
4 in Tygon® Hose Adapter Configuration
This 14MPHT-R400 configuration has a 4 in Tube O.D. Dixon lists Dimension A as 4.63 in, Dimension B as 3.83 in, and Dimension C as 4.00 in for this specific 316L stainless steel part number.
Verify the required 4 in configuration and compatibility with the intended Tygon® hose before ordering. The hose I.D. should be slightly larger than the fitting O.D. for proper assembly.
Hygienic Hose Connection Applications
The Dixon 14MPHT-R400 is designed for compatible food, beverage, pharmaceutical, and other hygienic processing systems requiring a transition to flexible Tygon® hose.
Dixon notes that 3-A certification applies to the fitting alone. Attaching the fitting to a hose does not retain the fitting's 3-A certification and does not make the completed hose assembly 3-A certified.
Installation & Selection Considerations
- Verify part number 14MPHT-R400.
- Confirm the required 4 in Tube O.D.
- Use a compatible band clamp for retention.
- Confirm the hose I.D. fits over the adapter correctly.
- Verify 316L stainless steel suits the process application.
Our fitting specialists can help review your Dixon part number, tube O.D., adapter dimensions, 316L stainless steel construction, Tygon® hose compatibility, band clamp requirements, hygienic processing application, and installation requirements before you order.
