14AHT-G150 - Plain Bevel Seat Tygon® Hose Adapter
- SKU:
- 14AHT-G150
- Availability:
- Usually Ships Same Day
- Weight:
- 0.55 LBS
Description

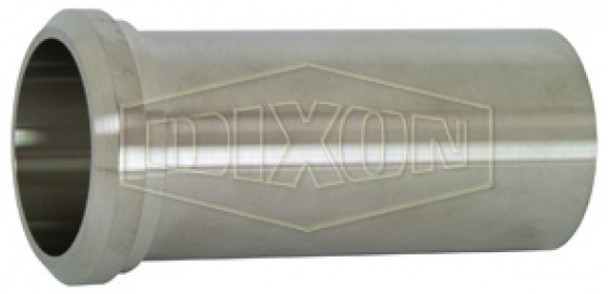

Dixon Plain Bevel Seat Tygon® Hose Adapter - 14AHT-G150
Dixon 14AHT-G150 Plain Bevel Seat Tygon® Hose Adapter is a 1-1/2 in Tube O.D. hygienic adapter manufactured from 304 stainless steel. The plain bevel seat configuration provides a transition between compatible bevel seat piping components and Tygon® hose connections.
The 14AHT-G150 is part of Dixon's 14AHT Series Plain Bevel Seat Tygon® Hose Adapter family. Proper selection should account for tube O.D., adapter dimensions, hose compatibility, mating bevel seat components, and the operating requirements of the complete hygienic piping system.
Product Highlights
- 1-1/2 in Tube O.D.
- 304 stainless steel
- Dixon 14AHT Series adapter
- Plain bevel seat configuration
- Tygon® hose adapter design
- Designed for compatible hose connections
- Connects with compatible bevel seat components
- Suitable for compatible hygienic processing systems
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 14AHT-G150 |
| Product Type | Plain Bevel Seat Tygon® Hose Adapter |
| Series | 14AHT |
| Tube O.D. | 1-1/2 in |
| Material | 304 Stainless Steel |
| Dimension A | 4.72 in |
| Dimension B | 1.37 in |
Plain Bevel Seat Design
The Dixon 14AHT-G150 features a plain bevel seat configuration designed for use with compatible bevel seat connection systems. The adapter provides the connection geometry required to incorporate a Tygon® hose connection into compatible hygienic process piping.
Correct component selection is important when assembling the connection. Verify the adapter series, tube O.D., mating bevel seat components, hose requirements, and complete system specifications before installation.
304 Stainless Steel Construction
The 14AHT-G150 is manufactured from 304 stainless steel. This material is commonly used for hygienic processing equipment and piping components where corrosion resistance, durability, and cleanable construction are important.
Material suitability should be evaluated against the process media, cleaning procedures, operating conditions, hose material, and requirements of the complete piping system.
1-1/2 in Tube O.D. Configuration
This 14AHT-G150 configuration is designed for 1-1/2 in Tube O.D. Dixon lists Dimension A at 4.72 in and Dimension B at 1.37 in for this adapter configuration.
Verify the tube O.D. and dimensional requirements before assembling the adapter. Other sizes in Dixon's Plain Bevel Seat Tygon® Hose Adapter family use different dimensions and should not be substituted solely on appearance.
Hygienic Hose Connection Applications
The Dixon 14AHT-G150 is designed for compatible hygienic piping systems requiring a transition to Tygon® hose. Its plain bevel seat connection allows the adapter to mate with compatible bevel seat components while the hose end provides the connection point for compatible Tygon® hose.
Proper installation should account for hose sizing, connection security, mating component compatibility, system cleaning procedures, and the operating requirements of the complete process system.
Installation & Selection Considerations
- Verify part number 14AHT-G150.
- Confirm the required 1-1/2 in Tube O.D.
- Verify compatibility with the selected Tygon® hose.
- Confirm 304 stainless steel is suitable for the application.
- Verify compatibility with the complete bevel seat connection.
Our fitting specialists can help review your Dixon part number, tube O.D., stainless steel material, adapter dimensions, Tygon® hose compatibility, bevel seat connection, hygienic piping application, and installation requirements before you order.
Frequently Asked Questions
What is the Dixon 14AHT-G150?
The 14AHT-G150 is a Dixon Plain Bevel Seat Tygon® Hose Adapter designed for a 1-1/2 in Tube O.D. connection and manufactured from 304 stainless steel.
What size is the Dixon 14AHT-G150?
The Dixon 14AHT-G150 is the 1-1/2 in Tube O.D. configuration in Dixon's 14AHT Plain Bevel Seat Tygon® Hose Adapter family.
What material is the 14AHT-G150 made from?
The Dixon 14AHT-G150 is manufactured from 304 stainless steel.
What type of connection does the 14AHT-G150 use?
The 14AHT-G150 uses a plain bevel seat configuration on the process connection side and is designed as a Tygon® hose adapter.
What are the A and B dimensions?
Dixon lists Dimension A as 4.72 in and Dimension B as 1.37 in for the 14AHT-G150.
What should I confirm before ordering?
Confirm part number 14AHT-G150, 1-1/2 in Tube O.D., 304 stainless steel construction, adapter dimensions, Tygon® hose requirements, and compatibility with the intended bevel seat connection.
Important Ordering & Installation Notes
- Confirm part number 14AHT-G150.
- Verify the required 1-1/2 in Tube O.D.
- Confirm mating bevel seat components.
- Verify compatibility with the selected Tygon® hose.
- Confirm 304 stainless steel is suitable for the application.
