Dixon
13HS-400 - Tube Hex Hanger Sleeve
- SKU:
- 13HS-400
- Availability:
- Usually Ships Same Day
- Weight:
- 0.14 LBS
Description

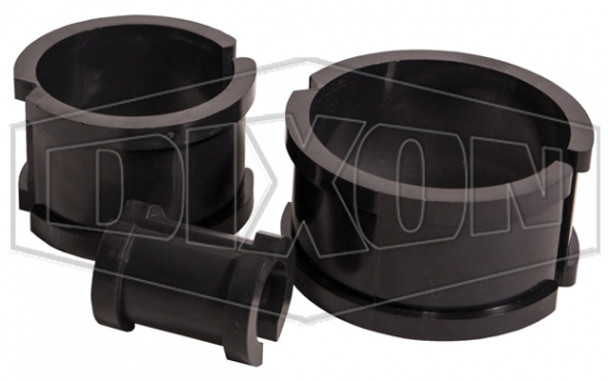

Dixon Tube Hex Hanger Sleeve - 13HS-400
Dixon 13HS-400 Tube Hex Hanger Sleeve is a 4 in high-temperature sleeve designed for use with compatible Dixon Tube Hex Hangers. The sleeve provides a nonmetallic interface between the supported sanitary tube and compatible hanger assembly.
The 13HS-400 is part of Dixon's high-temperature Tube Hex Hanger Sleeve family and has a maximum temperature rating of 325°F (163°C). Selection should account for tube size, hanger compatibility, operating temperature, installation requirements, and the conditions of the complete sanitary piping system.
Product Highlights
- 4 in size
- Tube hex hanger sleeve
- Dixon 13HS series component
- High-temperature sleeve design
- Nonmetallic tube support interface
- 325°F (163°C) maximum temperature
- Designed for compatible Dixon Tube Hex Hangers
- Supports sanitary tubing within compatible hanger assemblies
Technical Specifications
| Manufacturer | Dixon |
|---|---|
| Part Number | 13HS-400 |
| Product Type | Tube Hex Hanger Sleeve |
| Series | 13HS |
| Size | 4 in |
| Sleeve Type | High Temperature |
| Maximum Temperature | 325°F (163°C) |
| Compatible Equipment | Dixon Tube Hex Hangers |
| Primary Function | Tube Hanger Sleeve / Insert |
| Application | Compatible Sanitary & Hygienic Tube Support Systems |
High-Temperature Sleeve Design
The Dixon 13HS-400 is designed as the high-temperature sleeve option for compatible 4 in Tube Hex Hanger assemblies. It fits around the supported tubing within the hanger and provides separation between the tube and surrounding hanger hardware.
This replaceable sleeve arrangement allows the sleeve to be inspected separately from the hanger body during maintenance. Always verify the required tube size and compatible hanger configuration before selecting a replacement component.
325°F Temperature Rating
Dixon specifies a maximum temperature of 325°F (163°C) for its high-temperature Tube Hex Hanger Sleeves. This higher-temperature design distinguishes the 13HS series from Dixon's polypropylene sleeve alternatives.
Actual application suitability should be evaluated using the temperature, process environment, cleaning procedures, surrounding equipment, and requirements of the complete sanitary piping installation.
4 in Size Configuration
This 13HS-400 configuration is the 4 in size within Dixon's high-temperature sleeve range. The 13HS family includes multiple sizes, so the part number and nominal size should be verified carefully before ordering.
Correct sizing helps ensure that the sleeve fits the intended hanger assembly and supported tubing correctly. Do not substitute another sleeve size based only on the appearance of the hanger components.
Sanitary Tube Support Applications
The Dixon 13HS-400 is intended for use as part of a compatible sanitary Tube Hex Hanger assembly. The sleeve provides a nonmetallic contact surface around the tubing while the surrounding hanger hardware provides mechanical support.
Proper tube support can help maintain piping alignment and positioning at designated support points. Hanger compatibility, tube size, temperature requirements, support spacing, and installation conditions should all be considered before use.
Installation & Selection Considerations
- Verify part number 13HS-400.
- Confirm the required 4 in size.
- Inspect the sleeve before installation.
- Confirm compatibility with the Tube Hex Hanger.
- Do not exceed the 325°F maximum temperature rating.
Our fitting specialists can help review your Dixon part number, sleeve size, Tube Hex Hanger compatibility, temperature requirements, sanitary piping application, and installation requirements before you order.
Frequently Asked Questions
What is the Dixon 13HS-400?
The 13HS-400 is a Dixon high-temperature Tube Hex Hanger Sleeve designed for the compatible 4 in hanger size.
What size is the 13HS-400?
The Dixon 13HS-400 is the 4 in size within Dixon's high-temperature Tube Hex Hanger Sleeve family.
What is the maximum temperature?
Dixon specifies a maximum temperature of 325°F (163°C) for its high-temperature Tube Hex Hanger Sleeves.
What is the sleeve used for?
The sleeve fits within a compatible Tube Hex Hanger and provides a nonmetallic interface between the supported sanitary tubing and hanger hardware.
Is the 13HS-400 a high-temperature sleeve?
Yes. Dixon lists the 13HS-400 as the high-temperature sleeve option corresponding to the 4 in size.
Are other high-temperature 13HS sizes available?
Yes. Dixon lists multiple high-temperature 13HS sleeve sizes, including 1/2 in through 4 in and a 6 in option.
Is there a polypropylene version for the 4 in size?
Yes. Dixon lists 13PS-400 as the corresponding 4 in polypropylene sleeve option.
What should I confirm before ordering?
Confirm part number 13HS-400, the required 4 in size, Tube Hex Hanger compatibility, temperature requirements, and the conditions of the intended installation.
Important Ordering & Installation Notes
- Confirm part number 13HS-400.
- Verify the required 4 in size.
- Inspect the sleeve for damage or wear.
- Confirm compatibility with the complete hanger assembly.
- Do not exceed the 325°F (163°C) maximum temperature.
