Merit Brass
125# Lead Free Brass Street 45° Elbow
- SKU:
- XNL103A
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
125# Lead Free Brass Street 45° Elbow
125# Lead Free Brass Street 45° Elbows are threaded fittings designed to provide a 45-degree change in direction while connecting a female-threaded component directly to a male-threaded component. The street elbow configuration combines male and female threaded ends, helping create a compact offset without requiring a separate pipe nipple in many installations.
These fittings conform with the lead-content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act and are certified to contain ≤0.25 weighted average % lead. Manufacturer dimensional, certification, and material safety documentation is provided below.
Product Highlights
- 125# lead free brass street 45° elbow
- Provides a 45-degree change in piping direction
- Male x female threaded street elbow configuration
- Can reduce the need for a separate pipe nipple
- Lead free brass construction
- Conforms with lead-content requirements for lead-free plumbing under the U.S. Safe Drinking Water Act
- Certified ≤0.25 weighted average % lead
- Designed for compatible threaded plumbing and piping systems
- Useful for compact offsets and directional changes
- Manufacturer dimensional and certification documentation available
Technical Specifications
| Product Type | Street 45° Elbow |
|---|---|
| Pressure Class | 125# |
| Material | Lead Free Brass |
| Connection Type | Threaded |
| Connection Configuration | Male x Female |
| Elbow Angle | 45° |
| Lead Content | ≤0.25 Weighted Average % Lead |
| Compliance | Conforms with Lead Content Requirements for Lead Free Plumbing as Defined by the U.S. Safe Drinking Water Act |
| Primary Function | Changing Piping Direction 45 Degrees |
Street 45° Elbow Construction
A street 45° elbow provides a gradual directional change while incorporating male threads on one end and female threads on the other.
The male end can thread directly into a compatible female-threaded valve, fitting, or equipment connection, while the female end accepts a compatible male-threaded pipe or fitting. This can help create a shorter, cleaner assembly than using a standard elbow with an additional nipple.
Lead free brass construction makes this fitting suitable for applications requiring compliance with applicable lead-content requirements for plumbing products.
Why Choose a Lead Free Brass Street 45° Elbow?
Compact Male x Female Design
- Creates a 45-degree piping turn
- Male and female threaded connections
- Can connect directly to a female-threaded component
- May eliminate an additional pipe nipple
- Useful where installation space is limited
Lead Free Brass Construction
- Certified ≤0.25 weighted average % lead
- Conforms with U.S. Safe Drinking Water Act lead-content requirements
- Provides corrosion resistance in compatible applications
- Suitable for applicable potable-water plumbing systems
- Manufacturer certification documentation available
Lead Free Compliance
The supplied product information states that these fittings conform with lead-content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act.
The fittings are also identified as being certified to contain ≤0.25 weighted average % lead. Review the manufacturer certification letter in the Product Documents section for additional certification information.
Street 45° Elbow vs. Standard 45° Elbow
Street 45° Elbow
- Male thread on one end
- Female thread on the opposite end
- Can thread directly into a female connection
- May eliminate an additional pipe nipple
- Useful for compact offset installations
Standard 45° Elbow
- Typically uses female threaded connections
- Connects compatible male-threaded components
- May require a nipple depending on the installation
- Provides the same 45-degree directional change
- Different connection configuration from a street elbow
Common Applications
Plumbing & Water Systems
- Potable-water piping where applicable
- Commercial plumbing systems
- Water distribution piping
- Fixture and equipment connections
- General threaded brass piping assemblies
Commercial & General Service
- Mechanical piping installations
- Utility piping systems
- Valve connections
- Equipment piping
- Compact 45° offset piping layouts
Installation & Selection Guidance
- Confirm the required nominal fitting size before ordering.
- Verify male and female thread compatibility with the mating components.
- Use an appropriate thread sealant suitable for the piping material, system media, pressure, and temperature.
- Apply thread sealant according to the sealant manufacturer's instructions.
- Avoid over-tightening threaded brass fittings.
- Confirm that the 125# fitting class is suitable for the intended piping system.
- Verify media, pressure, and temperature compatibility before installation.
- Confirm lead-free requirements for the specific plumbing application.
- Inspect the completed connection for leaks before placing the system into service.
- Installation should comply with applicable plumbing codes and project requirements.
Product Documents

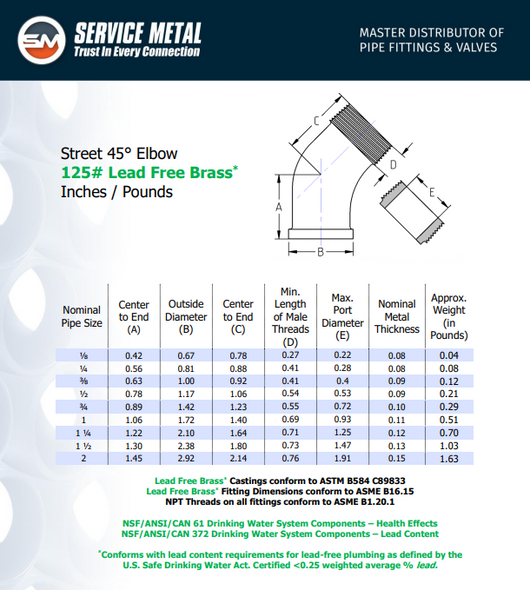

Import Brass Fitting Dimensions
Review manufacturer dimensional information for applicable lead free brass fittings and connection sizes.
Import Brass Fitting Certification Letter
Review the manufacturer certification documentation covering the lead free brass fitting product line.
Material Safety Data Sheet
Review the manufacturer material safety documentation for additional product and material information.
Need Help Selecting a Lead Free Brass Street 45° Elbow?
Our industrial PVF specialists can help review your fitting size, male and female thread requirements, pressure class, application, and lead-free plumbing requirements before you order.
Frequently Asked Questions
What is a street 45° elbow?
A street 45° elbow changes piping direction by 45 degrees and uses a male threaded connection on one end and a female threaded connection on the other.
How is a street 45° elbow different from a standard 45° elbow?
A street elbow has male and female threaded ends, while a standard threaded elbow typically uses female threaded connections. The street configuration can eliminate the need for an additional nipple in some installations.
What pressure class is this fitting?
This fitting is identified as a 125# lead free brass street elbow.
Is this fitting lead free?
Yes. The supplied product information states that it conforms with lead-content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act.
What is the certified lead content?
The fitting is identified as containing no more than 0.25 weighted average percent lead.
What connections does this street elbow use?
A street elbow uses a male threaded connection on one end and a female threaded connection on the other.
When should I use a 45° street elbow instead of a 90° street elbow?
A 45° street elbow is useful for a more gradual directional change or offset, while a 90° street elbow creates a full right-angle turn.
Where can I find fitting dimensions?
Use the Import Brass Fitting Dimensions document in the Product Documents section above.
Where can I verify the lead-free certification?
Use the Import Brass Fitting Certification Letter provided in the Product Documents section above.
Is material safety information available?
Yes. A manufacturer Material Safety Data Sheet is provided in the Product Documents section above.
Important Ordering Notes
- Product is a 125# lead free brass street 45° elbow.
- Designed to create a 45-degree change in piping direction.
- Male x female threaded street elbow configuration.
- Conforms with lead-content requirements for lead-free plumbing as defined by the U.S. Safe Drinking Water Act.
- Certified ≤0.25 weighted average % lead.
- Confirm nominal fitting size before ordering.
- Verify male and female thread compatibility with mating piping components.
- Confirm pressure, temperature, and media compatibility before installation.
- Review applicable plumbing-code requirements for potable-water installations.
- Refer to the manufacturer dimensional, certification, and material safety documents for additional product information.
