Cello
125# CTS Copper Flange - 2 Piece
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

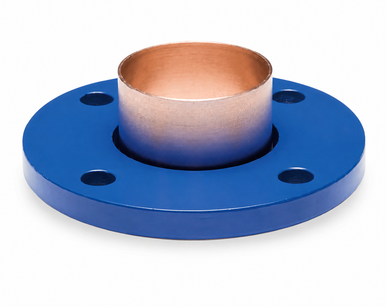

125# CTS Copper Flange
125# CTS copper flanges provide a solder-to-flanged transition for compatible copper tube piping systems using a CTS copper solder connection and a two-piece flanged configuration.
Select the required nominal tube size from the product options above. The selected variation determines the item number, online selling price, weight, cost, and size-specific product information.
Product Highlights
- CTS copper flange construction
- 125 lb pressure class
- Two-piece flange configuration
- CTS copper solder connection
- Provides a transition from copper tube to a compatible flanged connection
- Two-piece configuration helps simplify flange and bolt-hole alignment during installation
- Available in nominal tube sizes from 1-1/2" through 8"
Technical Specifications
| Product Type | CTS Copper Flange |
|---|---|
| Pressure Class | 125 lb |
| Configuration | Two Piece |
| Connection | CTS Copper Solder x Flanged |
| Manufacturer | Cello Products |
| Available Sizes | 1-1/2" through 8" |
How a CTS Copper Flange Works
A CTS copper flange provides a transition between copper tube and a compatible bolted flange connection. The copper connection is soldered to compatible CTS copper tube, while the flange face allows the piping system to connect to compatible flanged valves, pumps, equipment, or piping components. The two-piece configuration allows the flange ring to be positioned for easier bolt-hole alignment during installation.
Common Applications
Plumbing & Mechanical
- Copper water piping
- Mechanical-room piping
- Pump connections
- Valve connections
Commercial & Industrial
- HVAC and hydronic systems
- Equipment connections
- Commercial copper piping
- Industrial copper piping systems
Need Help Selecting a CTS Copper Flange?
Our industrial PVF specialists can help confirm nominal tube size, pressure class, connection type, mating flange compatibility, gasket requirements, and product availability.
Frequently Asked Questions
What is a CTS copper flange used for?
It provides a transition between compatible CTS copper tube and a bolted flange connection used on valves, pumps, equipment, or other flanged piping components.
What pressure class is this flange?
This product listing is for the 125 lb pressure class.
How does this flange connect to copper tube?
The copper connection is designed to be soldered to compatible CTS copper tube.
Why is this a two-piece flange?
The two-piece configuration allows the flange ring to be positioned independently, helping simplify bolt-hole alignment with the mating flange during installation.
Important Ordering Notes
- Select the required nominal tube size before adding the product to your cart.
- The selected variation determines the item number, price, weight, and cost.
- Confirm the CTS copper connection size before ordering.
- Confirm mating flange compatibility, gasket requirements, and bolt pattern before installation.
- Gaskets, bolts, nuts, and mating components are sold separately unless specifically stated otherwise.
- Confirm pressure, temperature, media compatibility, and applicable code requirements before installation.
