ABB

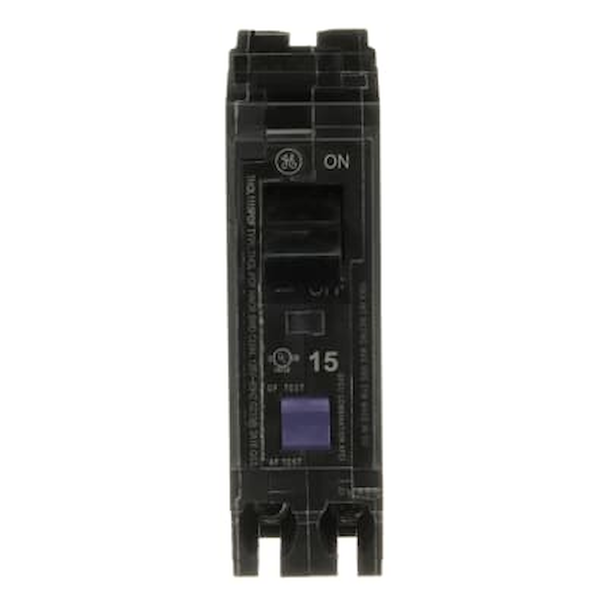

1-Pole Plug-On Neutral Dual Function Circuit Breaker
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.00 LBS
Description
1-Pole Plug-On Neutral Dual Function Circuit Breaker
ABB Q-Line 1-Pole Plug-On Neutral Dual Function Circuit Breakers combine AFCI and GFCI protection in a single breaker for compatible residential electrical distribution applications. This product family includes 15A and 20A configurations.
Both models use a 1-pole plug-on neutral configuration. Select the correct breaker according to the required ampere rating and confirm compatibility with the exact plug-on neutral load center, branch circuit, conductor requirements, and electrical installation before ordering.
Product Highlights
- ABB Q-Line miniature circuit breaker family
- Dual Function AFCI/GFCI protection
- 1-pole configuration
- Plug-on neutral design
- No traditional neutral pigtail required in compatible plug-on neutral equipment
- 15A and 20A configurations
- THQL1115PDF – 15A
- THQL1120PDF – 20A
- Designed for compatible ABB plug-on neutral load centers
- Verify exact load center compatibility before ordering
Technical Specifications
| Manufacturer | ABB |
|---|---|
| Product Family | Q-Line |
| Product Type | Dual Function Circuit Breaker |
| Protection Type | AFCI / GFCI Dual Function |
| Number of Poles | 1 |
| Neutral Connection | Plug-On Neutral |
| Available Ampere Ratings | 15A, 20A |
| Available Catalog Numbers | THQL1115PDF, THQL1120PDF |
| Primary Application | Compatible Plug-On Neutral Residential Electrical Distribution Equipment |
Available Dual Function Breakers
Catalog Number & Ampere Rating
| Catalog Number | Ampere Rating | Poles | Protection Type | Neutral Connection |
|---|---|---|---|---|
| THQL1115PDF | 15A | 1 | Dual Function AFCI/GFCI | Plug-On Neutral |
| THQL1120PDF | 20A | 1 | Dual Function AFCI/GFCI | Plug-On Neutral |
Selecting the Correct Breaker
15A – THQL1115PDF
Select THQL1115PDF when the compatible plug-on neutral load center requires a 15A, 1-pole dual function AFCI/GFCI circuit breaker.
20A – THQL1120PDF
Select THQL1120PDF when the compatible plug-on neutral load center requires a 20A, 1-pole dual function AFCI/GFCI circuit breaker.
Model Selection Guide
| Ampere Rating | Catalog Number | Protection Type | Poles | Neutral Connection |
|---|---|---|---|---|
| 15A | THQL1115PDF | Dual Function AFCI/GFCI | 1 | Plug-On Neutral |
| 20A | THQL1120PDF | Dual Function AFCI/GFCI | 1 | Plug-On Neutral |
Dual Function Protection
AFCI Protection
The dual function breaker provides arc-fault circuit interrupter protection for compatible branch circuits where AFCI protection is required.
GFCI Protection
The same breaker also provides ground-fault circuit interrupter protection for compatible circuits where GFCI protection is required.
Plug-On Neutral Design
The plug-on neutral design allows the breaker to connect to the neutral system of compatible load centers without the traditional neutral pigtail used by standard dual function breakers.
This configuration requires electrical equipment specifically designed to accept plug-on neutral breakers. Confirm the exact load center and neutral connection arrangement before ordering.
15A vs. 20A
THQL1115PDF – 15A
The THQL1115PDF is the 15A, 1-pole plug-on neutral dual function AFCI/GFCI configuration.
THQL1120PDF – 20A
The THQL1120PDF is the 20A, 1-pole plug-on neutral dual function AFCI/GFCI configuration.
Common Applications
Residential Branch Circuits
- Compatible residential load centers
- 15A branch circuit applications
- 20A branch circuit applications
- Circuits requiring AFCI protection
- Circuits requiring GFCI protection
- Applications requiring both AFCI and GFCI protection
Plug-On Neutral Applications
- Compatible plug-on neutral load centers
- No-pigtail neutral breaker installations
- Approved ABB Q-Line applications
- Residential electrical panel upgrades
- Compatible replacement breaker applications
Installation & Selection Considerations
- Confirm the exact catalog number before ordering.
- Select THQL1115PDF for the 15A configuration.
- Select THQL1120PDF for the 20A configuration.
- Verify that a 1-pole dual function AFCI/GFCI circuit breaker is required.
- Confirm that the exact load center supports ABB Q-Line plug-on neutral breakers.
- Do not assume a plug-on neutral breaker can be installed in equipment designed only for pigtail-neutral breakers.
- Verify the required branch circuit ampere rating before installation.
- Confirm that both AFCI and GFCI protection are appropriate for the intended circuit.
- Verify system voltage and complete breaker ratings before installation.
- Confirm conductor material and wire size requirements.
- Verify branch circuit neutral routing and terminal requirements.
- Follow ABB terminal and torque requirements.
- Do not substitute a standard breaker where dual function AFCI/GFCI protection is required.
- Do not substitute a pigtail-style breaker based only on amperage or appearance.
- Confirm AFCI and GFCI requirements with applicable electrical codes.
- Maintain required electrical working clearances.
- De-energize equipment before installation or service.
- Verify absence of voltage before working inside electrical equipment.
- Installation and service should be performed by qualified electrical personnel.
- Follow current ABB instructions, equipment labeling, and applicable local and national electrical codes.
Product Documents
Review the supplied ABB Q-Line 1-Pole Dual Function product documentation for AFCI/GFCI protection information, electrical characteristics, conductor requirements, trip characteristics, and additional manufacturer information.
Need Help Selecting a Dual Function Circuit Breaker?
Our electrical and industrial product specialists can help review your load center, required amperage, plug-on neutral compatibility, AFCI/GFCI protection requirements, conductor sizing, and breaker compatibility before you order.
Frequently Asked Questions
What catalog numbers are available?
The available models are THQL1115PDF and THQL1120PDF.
What is THQL1115PDF?
THQL1115PDF is the 15A, 1-pole plug-on neutral dual function AFCI/GFCI circuit breaker configuration.
What is THQL1120PDF?
THQL1120PDF is the 20A, 1-pole plug-on neutral dual function AFCI/GFCI circuit breaker configuration.
What ampere ratings are available?
The available configurations are 15A and 20A.
What does dual function mean?
Dual function means the breaker combines AFCI and GFCI protection in a single circuit breaker.
Are these plug-on neutral breakers?
Yes. Both listed models use a plug-on neutral configuration.
Do these breakers use a traditional neutral pigtail?
The plug-on neutral configuration is designed to connect to the neutral system of compatible equipment without the traditional neutral pigtail used by standard configurations.
Can I use these breakers in any load center?
No. The exact load center must be designed and approved for the applicable ABB Q-Line plug-on neutral breaker configuration.
Can I select the breaker based only on amperage?
No. Confirm the exact load center, plug-on neutral compatibility, AFCI/GFCI requirements, conductor requirements, and complete electrical ratings before ordering.
Where can I review the ABB product documentation?
The supplied ABB Q-Line 1-Pole Dual Function Breaker Product Details PDF is linked in the Product Documents section above.
Important Ordering & Installation Notes
- Product: 1-Pole Plug-On Neutral Dual Function Circuit Breaker.
- THQL1115PDF – 15A.
- THQL1120PDF – 20A.
- Manufacturer: ABB.
- Product family: Q-Line.
- Protection type: Dual Function AFCI/GFCI.
- Number of poles: 1.
- Neutral connection: Plug-On Neutral.
- Select THQL1115PDF when the approved application requires a 15A plug-on neutral dual function breaker.
- Select THQL1120PDF when the approved application requires a 20A plug-on neutral dual function breaker.
- Confirm that the exact load center is specifically approved for ABB Q-Line plug-on neutral breakers before ordering.
- Do not assume that a plug-on neutral breaker can be installed in a standard load center designed only for pigtail-neutral breakers.
- Confirm the required branch circuit ampere rating before selecting the breaker.
- Verify that both AFCI and GFCI protection are required or appropriate for the intended application.
- Do not substitute a standard circuit breaker where dual function AFCI/GFCI protection is required.
- Do not substitute an AFCI-only or GFCI-only breaker where both protection functions are required.
- Do not substitute a pigtail-neutral breaker based only on amperage or physical appearance.
- Verify system voltage and complete breaker ratings before installation.
- Confirm conductor material, conductor size, neutral routing, and terminal requirements.
- Follow ABB terminal torque and installation requirements.
- Verify that the breaker is fully seated on both the electrical bus and plug-on neutral connection before returning the equipment to service.
- Maintain all required covers, barriers, filler plates, and protective components after installation.
- Confirm AFCI and GFCI requirements with current applicable electrical codes.
- De-energize equipment before installing, removing, or servicing the circuit breaker.
- Verify absence of voltage before working inside electrical equipment.
- Installation and service should be performed by qualified electrical personnel.
- Follow current ABB installation instructions, equipment labeling, and all applicable local and national electrical codes.
