1" OD Yellow Coated Gas Connector - 3/4" MIP x 3/4" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description

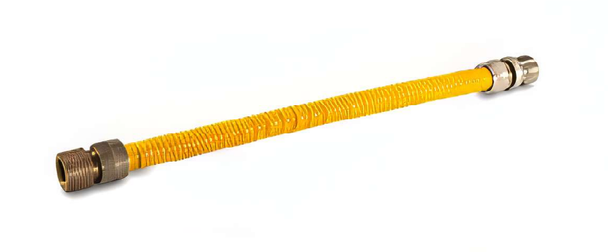

1" OD Yellow Coated Gas Connector - 3/4" MIP x 3/4" FIP
Charman Inc 1" OD Yellow Coated Gas Connectors provide a flexible connection between compatible gas piping and appliance or equipment connections. This configuration features a 3/4" MIP connection on one end and a 3/4" FIP connection on the other, with multiple connector lengths available for different installation layouts.
The yellow-coated flexible design helps provide routing flexibility where a rigid connection may be impractical. Length options from 12" through 60" allow the connector to be selected according to the distance between the gas supply and the connected appliance or equipment.
Product Highlights
- Charman Inc yellow coated gas flex connector
- 1" outside diameter connector
- 3/4" MIP x 3/4" FIP connection configuration
- Flexible connector design for gas piping applications
- Yellow exterior coating
- Multiple lengths for different installation requirements
- Available in 12", 18", 24", 36", 48", and 60" lengths
- Male threaded connection on one end
- Female threaded connection on the opposite end
- Suitable for compatible gas appliance and equipment connections
Technical Specifications
| Product Type | Yellow Coated Gas Flex Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-10-D1 |
| Connector OD | 1" |
| Connection 1 | 3/4" MIP |
| Connection 2 | 3/4" FIP |
| Connection Configuration | 3/4" Male Iron Pipe x 3/4" Female Iron Pipe |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 36", 48" and 60" |
| Primary Application | Flexible Gas Equipment and Appliance Connections |
Understanding the Connection Configuration
This connector uses different connection styles on each end. The 3/4" MIP end provides a male threaded connection, while the 3/4" FIP end provides a female threaded connection.
Before ordering, confirm both connection types on the gas supply and the appliance or equipment being connected. The nominal thread size is 3/4" on both ends even though one connection is male and the other is female.
Why Use a Flexible Gas Connector?
Flexible Installation
- Accommodates installations where rigid piping alignment is difficult
- Provides flexibility between fixed piping and connected equipment
- Multiple available lengths help match different installation layouts
- Useful where appliance or equipment positioning requires connection flexibility
- Helps simplify final connection between compatible threaded components
Male x Female Connections
- 3/4" MIP connection on one end
- 3/4" FIP connection on the opposite end
- Both connections use the same 3/4" nominal pipe size
- Reduces the need for additional adapters when this connection combination matches the installation
- Allows direct connection to compatible threaded components
Available Lengths
This 1" OD, 3/4" MIP x 3/4" FIP connector configuration is offered in several lengths to accommodate different equipment placement and piping layouts. Select the connector length that provides an appropriate route between the gas supply and connected appliance or equipment without unnecessary stretching or improper positioning.
- 12"
- 18"
- 24"
- 36"
- 48"
- 60"
Common Applications
Gas Appliance Connections
- Compatible gas-fired appliances
- Commercial cooking equipment
- Heating equipment
- Gas-fired mechanical equipment
- Other equipment requiring compatible flexible gas connections
Installation & Replacement
- New gas equipment installations
- Replacement connector applications
- Equipment relocation within allowable installation requirements
- Maintenance projects
- Applications requiring a flexible connection between fixed components
Selecting the Correct Connector Length
Select connector length based on the actual distance and routing required between the gas supply connection and the appliance or equipment connection. The connector should be long enough to make the required connection without being stretched or placed under unnecessary tension.
A longer connector should not be selected simply to create excess slack. Confirm the installation layout and applicable requirements before choosing a length.
Confirm the Connections Before Ordering
Supply-Side Connection
Confirm which side of the installation requires the 3/4" male threaded connection. MIP indicates a male iron pipe thread configuration.
Equipment-Side Connection
Confirm which side of the installation requires the 3/4" female threaded connection. FIP indicates a female iron pipe thread configuration.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information and use the complete Charman Inc Gas Flex Connector catalog to compare available connector diameters, connection combinations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 1" OD gas connector is appropriate for the intended installation.
- Confirm that the required connection configuration is 3/4" MIP x 3/4" FIP.
- Verify the thread type and nominal size of both mating connections before ordering.
- Select a connector length suitable for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other damage during installation.
- Route the connector so it is protected from physical damage.
- Use connection and sealing practices appropriate for the gas piping system and applicable requirements.
- Inspect the connector and end fittings for damage before installation.
- Confirm that the connector does not contact sharp edges or surfaces that could damage the coating.
- Leak-test completed gas connections using an appropriate method before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection Type
This family is specifically configured with a 3/4" MIP connection on one end and a 3/4" FIP connection on the other. Confirm that this male-to-female combination matches the installation before ordering.
Connector Length
Select from 12", 18", 24", 36", 48", or 60" based on the required installation distance. Proper connector routing and installation requirements should be considered when choosing length.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connection sizes, MIP and FIP requirements, connector OD, required length, and application before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 1" outside diameter with 3/4" nominal threaded connections.
What connections does this connector have?
It has a 3/4" MIP male threaded connection on one end and a 3/4" FIP female threaded connection on the other.
What lengths are available?
This listing includes 12", 18", 24", 36", 48", and 60" lengths.
What does MIP mean?
MIP identifies the male threaded connection on the connector. This fitting uses a 3/4" MIP connection.
What does FIP mean?
FIP identifies the female threaded connection on the connector. This fitting uses a 3/4" FIP connection.
Are both threaded ends the same nominal pipe size?
Yes. Both ends are 3/4" nominal pipe size, but one end is male and the other is female.
How do I choose the correct connector length?
Measure the required connection distance and consider the intended routing. Choose a length that allows proper installation without stretching, kinking, or placing unnecessary tension on the connector.
Can this connector be sharply bent to fit a tight installation?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it. Follow applicable installation requirements and product documentation.
Should the connection be leak-tested after installation?
Yes. Completed gas piping connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Where can I find additional connector sizes and configurations?
Use the Charman Inc Yellow Coated Gas Connector catalog linked in the Willy section to compare other connector diameters, threaded connection combinations, and available lengths.
Important Ordering Notes
- This listing is for Charman Inc yellow coated gas connectors with a 1" outside diameter.
- Connection configuration is 3/4" MIP x 3/4" FIP.
- Both threaded connections are 3/4" nominal size.
- Select the required connector length from the available options.
- Available lengths in this listing are 12", 18", 24", 36", 48", and 60".
- Confirm male and female connection requirements before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and Gas Flex Connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
