Charman Inc.

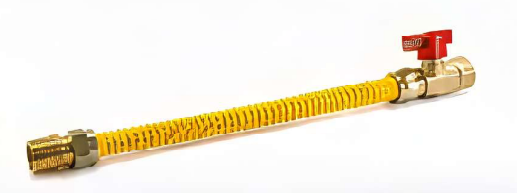

1/2" OD Yellow Coated Gas Connector - 1/2" MIP x 1/2" FIP
- Availability:
- Usually in Stock – Ships Quickly
- Weight:
- 0.00 LBS
Description
1/2" OD Yellow Coated Gas Connector - 1/2" MIP x 1/2" FIP
Charman Inc 1/2" OD Yellow Coated Gas Connectors provide a flexible connection for compatible gas-fired appliances and equipment. This configuration features a 1/2" MIP connection on one end and a 1/2" FIP connection on the other, with available lengths from 12" through 72" to accommodate different installation layouts.
The flexible corrugated connector construction helps accommodate routing between fixed gas piping and compatible equipment where rigid-pipe alignment may be impractical. The male x female configuration maintains a 1/2" nominal connection size while providing opposite thread configurations at each end.
Product Highlights
- Charman Inc yellow coated gas connector
- 1/2" outside diameter
- 1/2" MIP x 1/2" FIP connection configuration
- Male threaded connection on one end
- Female threaded connection on the opposite end
- Flexible corrugated connector construction
- Yellow exterior coating
- Available in lengths from 12" through 72"
- Multiple lengths for different installation layouts
- Designed for compatible gas appliance and equipment connections
Technical Specifications
| Product Type | Yellow Coated Gas Connector |
|---|---|
| Brand | Charman Inc |
| Product Family | 800-12-B2 |
| Connector OD | 1/2" |
| Connection 1 | 1/2" MIP |
| Connection 2 | 1/2" FIP |
| Connection Configuration | 1/2" Male Iron Pipe x 1/2" Female Iron Pipe |
| Construction | Flexible Corrugated Gas Connector |
| Exterior | Yellow Coated |
| Available Lengths | 12", 18", 24", 30", 36", 48", 60" and 72" |
| Primary Application | Flexible Gas Appliance and Equipment Connections |
Understanding the Connection Configuration
This connector has a 1/2" MIP connection on one end and a 1/2" FIP connection on the other. The MIP end provides a male threaded connection, while the FIP end provides a female threaded connection.
Both ends use the same 1/2" nominal pipe size, but the thread configuration differs. Confirm which side of the installation requires the male connection and which side requires the female connection before ordering.
Why Choose a Yellow Coated Gas Connector?
Flexible Installation
- Accommodates practical routing between fixed connection points
- Useful where rigid piping alignment is difficult
- Provides flexibility between gas piping and connected equipment
- Multiple lengths accommodate different installation layouts
- Helps simplify final appliance and equipment connections
Male x Female Connections
- 1/2" MIP connection on one end
- 1/2" FIP connection on the opposite end
- Both ends use the same nominal pipe size
- Provides a direct male-to-female threaded configuration
- Available across multiple connector lengths
Choosing the Correct Length
Measure the distance and planned routing between the gas supply and appliance or equipment connection before selecting a connector. Choose a length that provides adequate routing without requiring the connector to be stretched or placed under unnecessary tension.
Available lengths range from 12" through 72", allowing the connector to be matched more closely to the installation. Avoid excessive slack, sharp bends, kinks, twisting, or crushing.
Common Applications
Gas-Fired Equipment
- Compatible gas appliances
- Commercial cooking equipment
- Heating equipment
- Mechanical equipment
- Other compatible gas-fired equipment
Installation & Replacement
- New equipment installations
- Replacement gas connector applications
- Maintenance projects
- Equipment connection updates
- Applications requiring a male connection on one end and female connection on the other
Available Connector Lengths
The 800-12-B2 connector family is available in eight lengths while maintaining the same 1/2" OD and 1/2" MIP x 1/2" FIP connection configuration.
- 12"
- 18"
- 24"
- 30"
- 36"
- 48"
- 60"
- 72"
Male x Female Connection Applications
The 1/2" MIP x 1/2" FIP configuration is designed for installations where one mating point requires a male threaded connector end and the opposite connection requires a female threaded end.
Because both ends are 1/2" nominal pipe size, this configuration changes the connection style without changing the nominal pipe size.
Ask Willy: Need Gas Connector Help?
Review the Yellow Coated Gas Connector specification sheet for product information, or use the complete Charman Inc connector catalog to compare available connector diameters, connection configurations, and lengths before ordering.
Installation & Selection Guidance
- Confirm that a 1/2" OD gas connector is appropriate for the intended installation.
- Confirm the required connection configuration is 1/2" MIP x 1/2" FIP.
- Verify that the 1/2" MIP end mates with a compatible female threaded connection.
- Verify that the 1/2" FIP end mates with a compatible male threaded connection.
- Select a connector length appropriate for the actual installation distance and routing.
- Do not stretch the connector to reach between connection points.
- Avoid sharp bends, kinks, crushing, twisting, or other connector damage.
- Route the connector so it is protected from physical damage.
- Inspect the connector, coating, and end fittings before installation.
- Avoid contact with sharp edges or surfaces that could damage the connector or coating.
- Use connection and sealing practices appropriate for the gas piping system.
- Leak-test completed gas connections before placing equipment into service.
- Follow applicable fuel-gas codes, local requirements, equipment instructions, and connector documentation.
- Installation should be completed by qualified personnel familiar with gas piping systems.
Product Selection Considerations
Connection Type
This family is specifically configured with a 1/2" MIP connection on one end and a 1/2" FIP connection on the other. Confirm the male and female thread requirements before ordering.
Connector Length
Select from 12", 18", 24", 30", 36", 48", 60", or 72" according to the required installation distance and routing. Choose a length that permits proper installation without stretching or excessive slack.
Need Help Selecting a Gas Connector?
Our PVF specialists can help review your connector diameter, MIP and FIP connection requirements, required length, equipment connection, and installation conditions before you order.
Frequently Asked Questions
What size is this gas connector?
This connector family has a 1/2" outside diameter with 1/2" nominal threaded connections on both ends.
What connections does this connector have?
It has a 1/2" MIP male threaded connection on one end and a 1/2" FIP female threaded connection on the other.
What lengths are available?
This listing includes 12", 18", 24", 30", 36", 48", 60", and 72" lengths.
What does MIP mean?
MIP identifies a male threaded pipe connection. One end of this connector is 1/2" MIP.
What does FIP mean?
FIP identifies a female threaded pipe connection. One end of this connector is 1/2" FIP.
Are both threaded ends the same nominal size?
Yes. Both ends are 1/2" nominal size, but one is male and the other is female.
What mating connections are required?
The 1/2" MIP end requires a compatible female threaded connection, while the 1/2" FIP end requires a compatible male threaded connection.
How do I choose the correct connector length?
Measure the required connection distance and planned routing, then select a length that allows proper installation without stretching, kinking, twisting, or excessive slack.
Can the connector be sharply bent?
The connector should be routed without sharp bends, kinks, twisting, crushing, or other conditions that could damage it.
Should gas connections be leak-tested after installation?
Yes. Completed gas connections should be leak-tested using an appropriate method before the connected equipment is placed into service.
Important Ordering Notes
- This listing is for Charman Inc 1/2" OD yellow coated gas connectors.
- Connection configuration is 1/2" MIP x 1/2" FIP.
- One connector end is male threaded and the other is female threaded.
- Both threaded connections are 1/2" nominal size.
- Select the required connector length from the available options.
- Available lengths are 12", 18", 24", 30", 36", 48", 60", and 72".
- Confirm both mating connection types before ordering.
- Confirm connector routing and required installation length before ordering.
- Do not install a connector that is kinked, twisted, crushed, or otherwise damaged.
- Review the linked Charman Inc specification sheet and connector catalog for additional product information.
- Installation should comply with applicable fuel-gas codes, equipment requirements, and local regulations.
- Gas connections should be installed and tested by qualified personnel.
