Spears

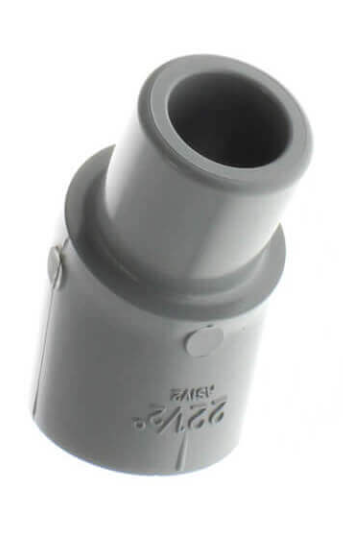

Schedule 80 CPVC 22-1/2° Street Elbow (SPG x SOC)
- Availability:
- Usually Ships Same Day
- Weight:
- 0.00 LBS
Description
Schedule 80 CPVC 22-1/2° Street Elbow (SPG x SOC)
Schedule 80 CPVC 22-1/2° Street Elbow (SPG x SOC) provides a compact 22-1/2° direction change in compatible CPVC piping. The street-style fitting combines a spigot connection on one end with a socket connection on the opposite end.
The Schedule 80 CPVC 22-1/2° Street Elbow can connect directly into a compatible CPVC socket while accepting CPVC pipe at the opposite end. Selection should account for nominal size, SPG x SOC orientation, adjoining fitting compatibility, system conditions, and proper solvent-cement joining procedures.
Product Highlights
- CPVC construction
- Schedule 80 design
- Street elbow configuration
- SPG x SOC connections
- 22-1/2° direction change
- Compatible CPVC socket interface
- Designed for solvent-cement joining
- Provides a compact change in piping direction
Technical Specifications
| Product Type | 22-1/2° Street Elbow |
|---|---|
| Material | CPVC |
| Schedule | Schedule 80 |
| Configuration | Street Elbow |
| Connection | Spigot (SPG) x Socket (SOC) |
| Spigot Interface | Compatible CPVC Socket |
| Socket Interface | Compatible CPVC Pipe |
| Direction Change | 22-1/2° |
| Joining Method | CPVC Solvent-Cement Connections |
| Primary Function | Provide a Compact 22-1/2° Direction Change Between CPVC Socket Interfaces |
Street Elbow Design
The street elbow design combines a spigot connection with a socket connection rather than using sockets on both ends. This allows one end of the elbow to install directly into a compatible CPVC fitting socket.
The SPG x SOC orientation should be verified before installation. This configuration can help reduce the number of separate components needed when making a compact directional change.
Spigot Connection
The spigot connection is designed to fit directly into an appropriately sized compatible CPVC socket. This eliminates the need for an intermediate piece of pipe between the elbow and receiving fitting.
The spigot surface and receiving socket should be clean and properly prepared before joining. Compatible CPVC primer, solvent cement, insertion procedures, and required cure times should be followed.
Socket Connection
The socket connection accepts appropriately sized compatible CPVC pipe. This provides the conventional solvent-cement connection on the opposite side of the street elbow.
The pipe should be cut square, prepared correctly, and fully inserted according to the applicable joining procedure. Proper alignment should be maintained while the joint sets and cures.
22-1/2° Direction Change
The 22-1/2° elbow angle provides a moderate change in piping direction where a 45° or 90° turn would be greater than required. It can be useful for routing adjustments and offset arrangements in compatible CPVC piping.
System temperature, pressure, fluid compatibility, joining requirements, and applicable installation procedures should be reviewed for the intended application. The adjoining piping should be supported to minimize stress at the elbow.
Installation & Selection Considerations
- Confirm the nominal size.
- Verify the 22-1/2° angle.
- Confirm SPG x SOC orientation.
- Check receiving socket compatibility.
- Maintain proper piping alignment.
Our piping specialists can help review nominal size, elbow angle, SPG x SOC orientation, adjoining CPVC connections, and installation considerations before you order.
Frequently Asked Questions
What is a 22-1/2° Street Elbow used for?
It provides a compact 22-1/2° change in direction in compatible Schedule 80 CPVC piping.
What does SPG x SOC mean?
It means the elbow has one spigot connection and one socket connection.
What connects to the spigot end?
The spigot end fits into an appropriately sized compatible CPVC socket.
What connects to the socket end?
The socket end accepts appropriately sized compatible CPVC pipe.
How is this street elbow installed?
Both connections use compatible CPVC solvent-cement joining procedures appropriate for the mating interfaces.
What should I confirm before ordering?
Confirm nominal size, 22-1/2° angle, SPG x SOC configuration, adjoining connections, and system requirements.
Important Ordering & Installation Notes
- Confirm the nominal size.
- Verify the 22-1/2° angle.
- Confirm SPG x SOC orientation.
- Check adjoining CPVC connections.
- Use compatible CPVC joining procedures.
