Parker

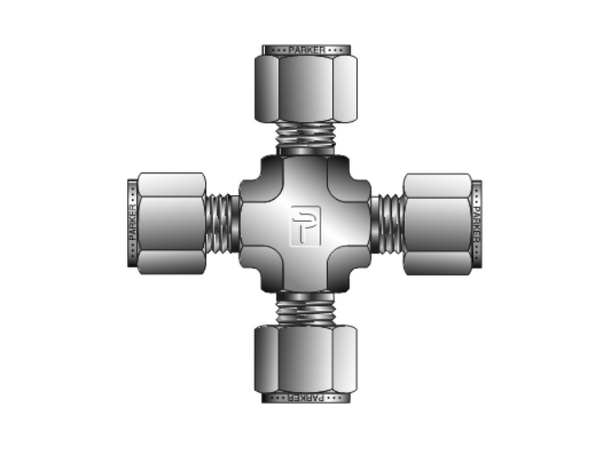

Parker CPI 3/8" Stainless Steel Union Cross for Fractional Tube
- SKU:
- 6 KBZ-SS
- Weight:
- 0.50 LBS
Description
Parker CPI 3/8" Stainless Steel Union Cross for Fractional Tube
The Parker CPI™ 6 KBZ-SS Union Cross is a precision-machined stainless steel instrumentation fitting designed to connect four sections of 3/8" fractional tubing in a cross configuration. Built for demanding process, instrumentation, and control applications, it provides dependable leak-free performance and excellent resistance to vibration.
Part of Parker's trusted CPI™/A-LOK® tube fitting family, this union cross utilizes Parker's proven compression fitting technology to deliver reliable sealing performance while maintaining tubing integrity during installation and remakes.
Key Features
- Union cross configuration with four CPI™ tube connections
- Designed for 3/8" fractional tubing
- 316 stainless steel construction
- Heat code traceable material
- Leak-free compression fitting design
- Excellent vibration resistance
- Maintains tubing integrity during assembly
- Allows repeated remakes and disassembly
- Suitable for instrumentation and process systems
- Interchanges with 600-4 style fittings
Construction Details
Manufactured from 316 stainless steel for superior corrosion resistance and long service life in demanding industrial environments. Parker's CPI™ fitting design creates a reliable seal while minimizing stress on the tubing during installation.
The fitting body measures approximately 2.34 inches overall length with a 5/8 inch hex body for convenient installation using standard tools.
Designed to provide consistent sealing performance across a wide range of instrumentation, process control, analyzer, and industrial fluid handling applications.
Specifications
- Manufacturer: Parker Hannifin
- Series: CPI™ / A-LOK®
- Part Number: 6 KBZ-SS
- Fitting Type: Union Cross
- Connection Type: CPI™ x CPI™ x CPI™ x CPI™
- Tube Size: 3/8"
- Material: 316 Stainless Steel
- Dimension A: 2.34"
- Dimension C: 1.17"
- Hex Size: 5/8"
Important Notes
For best performance, tubing and fitting materials should be compatible with the process media and operating conditions. Parker recommends using tubing of the same material as the fitting whenever possible.
Proper assembly procedures are critical to achieving leak-free performance.
Pressure ratings depend on tubing size, wall thickness, material selection, and system design. Consult Parker technical documentation for application-specific pressure limits.
