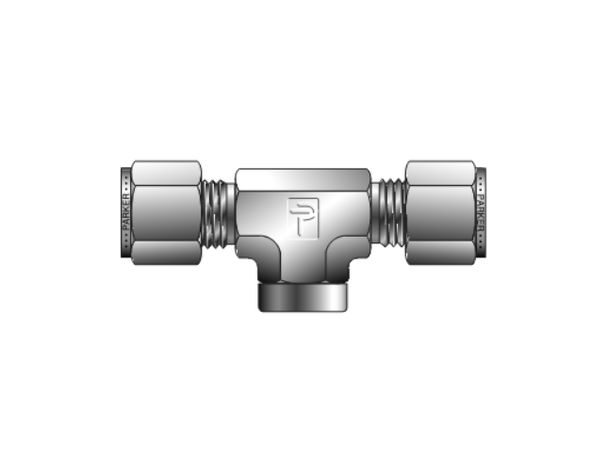

Parker CPI 1/4" NPT Female Branch Tee for Fractional Tube

The Parker CPI™ 4-4-4 OBZ-SS NPT Female Branch Tee is a precision instrumentation tube fitting designed to provide reliable, leak-free connections in process, control, and instrumentation systems. This fitting features two 1/4" tube connections and a 1/4" FNPT branch connection in a compact tee configuration for fluid distribution and system integration.

Manufactured from heat code traceable 316 stainless steel, Parker CPI™ fittings utilize a single-ferrule design that delivers dependable sealing performance, excellent vibration resistance, and simplified installation.

Key Features

• Parker CPI™ instrumentation tube fitting
• 4-4-4 OBZ configuration
• Two 1/4" tube connections with 1/4" FNPT branch
• Female branch tee design
• Single-ferrule compression fitting technology
• 316 stainless steel construction
• Heat code traceable material
• Excellent vibration resistance
• Leak-free sealing performance
• Interchanges with 400-3-4TTF

Construction Details

The CPI™ single-ferrule design creates a spring-loaded sealing effect that maintains constant tension between the fitting body and nut, helping ensure long-term leak-tight performance.

Unlike conventional compression fittings, the ferrule design transmits make-up forces axially rather than radially, minimizing tubing stress and preserving tubing integrity during installation and remakes.

Manufactured from corrosion-resistant 316 stainless steel, this fitting is suitable for demanding industrial and instrumentation applications where reliability is critical.

Specifications

Connection Type: CPI™ x CPI™ x FNPT

Tube Size: 1/4" x 1/4"

Female NPT Branch: 1/4"

Material: 316 Stainless Steel

Dimensions: A = 2.34", C = 1.17", H = 0.88", L = 0.88", Hex = 11/16"

Important Notes

Proper assembly is essential to achieving optimal sealing performance. Follow Parker CPI™ installation and remake procedures for best results.

Tubing material should generally match fitting material to ensure compatibility and performance.

Pressure ratings depend on tubing selection and system design.
