Harrington Hoists

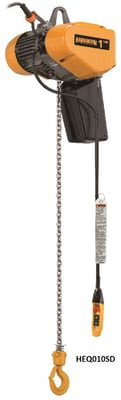

Vfd Controlled Dual Speed Electric Chain Hoists - HEQ005SD
- SKU:
- HEQ005SD
- Availability:
- Lead time varies. We will confirm ship date after order. Need exact lead time? Add to quote.
- Weight:
- 75.00 LBS
Description
Vfd Controlled Dual Speed Electric Chain Hoists - HEQ005SD
Ergonomically designed for easy installation and operation.IP55 rated for indoor/outdoor use.5 year brake warranty.The EQ/SEQ dual speed electric chain hoists are loaded with cutting-edge features such as a no-load high-speed function that automatically increases hoist speed up to 130 percent when the load is less than 30 percent of working load limit. Both 3-phase EQ and 1-phase SEQ come standard as dual speed via variable frequency drive (VFD), a true revolution for single phase hoist controls. Both hoists have ASME H4 classification, IP55 rated enclosure and IP65 pendant. 208-230V/460-3-50/60 or 380-460V-3-50/60 power supply on the EQ, and 115/230V-1-60 (reconnectable) power supply on the SEQ. Optional suspension bar available for low headroom or enclosed track trolley applications. Push/Pull, geared or motorized trolleys available. Call for details. FOB Shipping Point.
| Description | EQ 3-Phase |
|---|---|
| Cap.(tons) | 1/2 |
| Std.Lift | 10' |
| Lift SpeedFPM-High | 25 |
| Lift SpeedFPM-Low | 4.2 |
| Lift SpeedFPM-No LoadHigh Speed | 32 |
| PendantCord | 8.2' |
| Min.HeadroomTop Hook | 18.0 |
| Min.HeadroomSusp. Bar | 16.1 |
| Wt.(lbs.) | 75 |
