Uponor
ProPEX LF Copper Stub Ell 1/2" PEX LF Brass x 1/2" Copper (3 1/2" 8")
(No reviews yet)
Write a Review
- SKU:
- LF2865050
- Availability:
- Allow 2-3 Days to Ship
- Weight:
- 0.20 LBS
*Images are for visual reference only.
Description

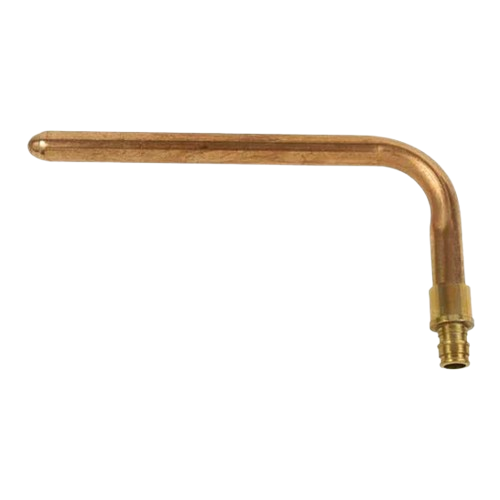

ProPEX LF Copper Stub Ell 1/2" PEX LF Brass x 1/2" Copper (3 1/2" 8")
The Uponor ProPEX Lead-Free Copper Stub Elbow is a 90° transition fitting that connects 1/2" PEX tubing (such as AquaPEX®) to 1/2" Type L copper pipe or a compression valve. Made of lead-free brass and copper, this stub-out elbow is designed for reliable performance in hot and cold domestic potable-water plumbing systems. It features a ProPEX® expansion end that integrates with PEX tubing, eliminating the need for torches, glues, or solvents making installation simpler and safer. The other end is a closed copper stub, ready for soldering or attachment to a compression valve.
Key Features & Specifications
- Connection Method: ProPEX® Expansion (PEX side) + Copper stub (sweat or compression on stub side)
- Material: Lead-free brass (PEX end), Type L copper stub
- Angle: 90° elbow, Stub-out design
- Length: Approximately 8.3" overall; ~4.75" width (stub-out width)
- Maximum Pressure: Up to 200 psi (working pressure)
- Maximum Temperature: Up to 200 °F (suitable for hot water)
- Certifications & Standards: ASTM F1960, ASTM F877, NSF 14, NSF 61, Lead-Free compliance, and standard plumbing codes (IPC, UPC, etc.)
- Intended Use: Transition from PEX (e.g., AquaPEX) piping to copper for potable hot & cold water plumbing.
