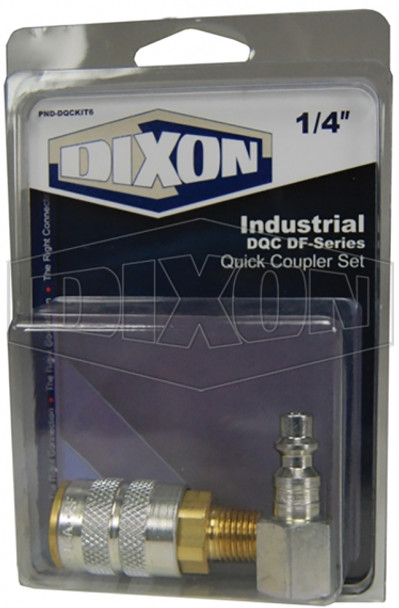

PND-DQCKIT6 - Industrial DF-Series Quick Coupler Set - Retail Packaged

• Foster 3, 4, 5 and 6 Series
• Parker 30 - Series Automatic Interchange & Parker 20-Series Manual Interchange
• Hansen 3000, 4000, 5000 and 6000 & Hansen 1000, 400 and 500

• Machined components are manufactured using solid bar stock.
• Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life.
• Nitrile (Nitrile Rubber) seals are standard
• Steel componentry is plated using ROHS Compliant Trivalent Chrome.
• Steel sleeve and steel tubular valve

(Case Qty 6 Required)

• To disconnect, begin by holding the hose on the nipple side with three of your fingers, leaving your thumb and index finger free.
• Grab the sleeve with your thumb and index finger and begin to pull the sleeve towards the palm of your hand.
• After pulling the sleeve, the nipple will move out of the coupler slightly. Continue to hold the hose and coupler sleeve until all air is fully exhausted.
• After the line is fully exhausted, you are able to safely separate the nipple from the coupler.

2FM2-B, D2F2

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.

• Rated pressure for connected Brass Coupler & Brass Plug: 300 PSI (20 bar) Maximum Working and 8,500 PSI (586 bar) Burst
• Rated pressure for connected Brass Coupler & Steel Plug: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
• Rated pressure when connected with Steel F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 6,500 PSI (448 bar) Burst
• Rated pressure when connected with Brass F-Series Manual Couplers: 500 PSI (35 bar) Maximum Working and 9,000 PSI (620 bar) Burst
