Dixon

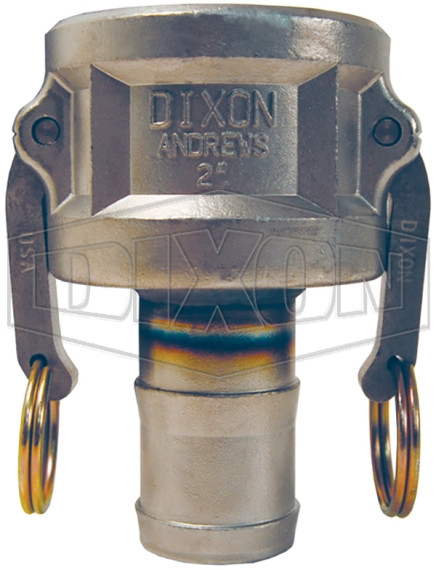

1510-C-SS - Dixon Cam & Groove Type C Jump Size Coupler x Hose Shank
- SKU:
- 1510-C-SS
- Availability:
- Usually Ships Within 24 Hours
- Weight:
- 1.50 LBS
*Images are for visual reference only.
Description
Details
Applications
Designed for use with liquids, consult Dixon for specific recommendations
Available Options
Other gasket types are available, contact Dixon.
Construction
- Nitrile Rubber gasket
- Durable stainless steel cam arm pins
- Supplied with safety clips
Features
- Precision machined to rigid tolerances
- Stainless pins will not rust or bind, providing great strength and safety
- Recess holds gasket firmly in place - ensures proper placement
- Long shank design allows proper banding, thus eliminating the major cause of hose damage
How It Works
- To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
- Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Note
In reducing couplings, the cam and groove end is the first size in the part number.
Safety Notes
- Under no circumstances should cam and groove couplings be used for compressed air or steam service!
- Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications
Produced to interchange with all product produced to Commercial Item Description A-A-59326D
WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Resources
- Cam & Groove
- 1510-C-SS
- Procedures 2100: Pre-Formed Band Clamp using Pneumatic Roll-Over Tool
- Procedure 2101: Pre-Formed Band Clamps using Punch Style Tool
- Procedure 2102: Pre-Formed Band Clamps using Punch Style Tool & Air King Hose
- Procedure 2103: Pre-Formed Band Clamps using Screw-Action Tool
- Procedure 3003: Inspecting Dixon Cam & Groove Coupling
- DPL424 page 56.pdf
