Minerallac
Wedge Anchor - 62680US
- SKU:
- 62680US
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.57 LBS
*Images are for visual reference only.
Description

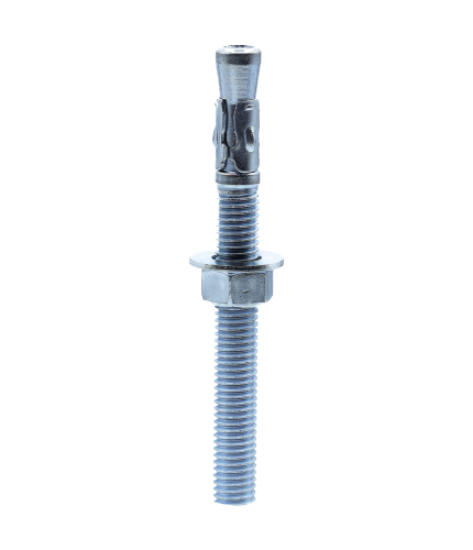

Wedge Anchor - 62680US
5/8 x 5, Wedge anchors, also known as expansion bolts and expansion anchors, are four-piece anchor assemblies that secure themselves using a mechanical wedging effect at the end of the fastener.
| Brand Name | Minerallac |
| Sub Brand | Cully |
| Type | Wedge Anchor |
| Special Features | Designed for full-contact expansion. |
| Application | These are heavy-duy, non-bottom bearing anchors of greater shear strength than other light and medium-duty expansion anchors for use in concrete and stone. |
| Diameter | 5/8" |
| Length | 5" |
| Minimum Embedment Depth | 2-3/4" |
| Thread Type | Coarse |
| Thread Size | 5/8" |
| Thread Length | 3-3/8" |
| Thread per Inch | 11 |
| Drill Size | 5/8" |
| Material | Steel |
| Finish | Zinc Plated |
Spec Sheet PDF
