Minerallac
Wedge Anchor - 62255HG
- SKU:
- 62255HG
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.01 LBS
*Images are for visual reference only.
Description

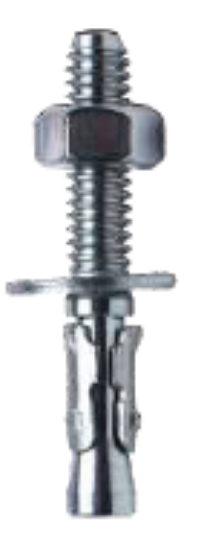

Wedge Anchor - 62255HG
3/8 X 3-1/2 Wedge Anchor, Hot Dipped Galvnized, with nut and washer, Box
| Brand Name | Minerallac |
| Sub Brand | Cully |
| Type | Wedge Anchor |
| Special Features | Designed for full-contact expansion. |
| Application | These are heavy-duy, non-bottom bearing anchors of greater shear strength than other light and medium-duty expansion anchors for use in concrete and stone. |
| Diameter | 3/8" |
| Length | 3-1/2" |
| Minimum Embedment Depth | 2-1/4" |
| Thread Type | Coarse |
| Thread Size | 3/8" |
| Thread per Inch | 16 |
| Drill Size | 3/8" |
| Material | Steel |
| Finish | Hot Dipped Galvanized |
| Head | Head Stamped to help determine length after install |
| ICC EVALUATION SVC | No ICC listing |
| Thread Length | 3-1/2" |
| Tension Strength | 3154 Average Ultimate Load, lbs. |
| Shear Strength | 3882 Average Ultimate Load, lbs. |
Spec Sheet PDF
