Minerallac
Strut Clamp - CCT062YC
- SKU:
- CCT062YC
- Availability:
- Allow 1-2 Days to Ship
- Weight:
- 0.15 LBS
*Images are for visual reference only.
Description
Strut Clamp - CCT062YC
Cushion Clamp Tubing 5/8
| Brand Name | Minerallac |
| Sub Brand | Minerallac Strut Fittings |
| Type | Cushioned Tubing Strut Clamp |
| Application | Pipe clamps, pipe hangers, brackets, and rollers are designed for the support of electrical and mechanical services. |
| Material | Carbon steel |
| Finish | Yellow Chromate |
| Band Slots | Rectangular |
| Included | Nut and Bolt |

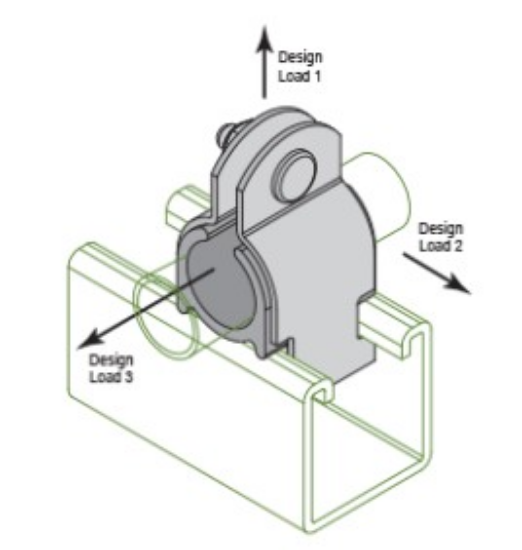

| Design Load 1 | 400 lbs. |
| Design Load 2 | 50 lbs. |
| Design Load 3 | 50 lbs. |
| Cushion Material | is a thermoplastic elastomer rated from -65° F to +275° F |
| Tubing Size | 5/8" |
| Tubing O.D. | 0.625" |
Spec Sheet PDF
