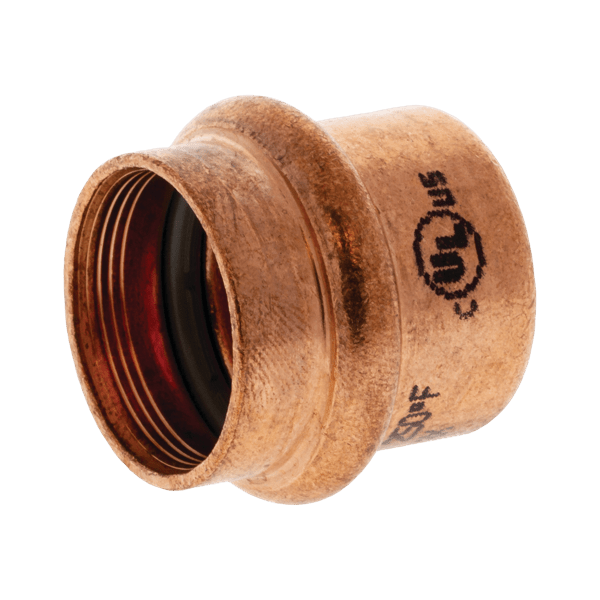

PressACR Cap P - Wrot Copper

The NIBCO® PressACR copper cap features an inboard bead and gray HNBR O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, robust seal in seconds with no flame, solder or flux. The cap has a press connection. The fitting is used to fit over the end of pipe to seal the end. NIBCO press fittings are the fastest, easiest way to join copper tubing.

• Operating pressure 700 psi max
• Temperature range -40°F to 250°F
• Vacuum: 500mi
• Press Fittings for ACR Applications White Paper PDF
• PressACR® Warranty PDF
• PressACR® QRG PDF
• PressACR® Catalog PDF
• PressACR® Installation Instructions PDF
• PressACR® Submittal Package PDF

Approved Refrigerants: R1234yf, R1234ze, R125, R134a, R143a, R404A, R407A, R407C, R407F, R410A, R417A, R422D, R447A, R448A, R449A, R450A, R452A, R452B, R507, R513A, R718, R32, R290, R600, R600A, R407B, R407G, R407H, R421C, R422A, R422B, R422C, R427A, R434

Approved Oils: POE, PAG, MO, PAO, PVE and ABR456A

UL 207 Recognized to 700 PSI

Complies with: ISO 5149-2, ISO I4903 Helium leak test, ISO 14903 Thermal cycle test, ISO 14903 Fatigue test, ISO 14903 Freeze test, UL 109 vibration
